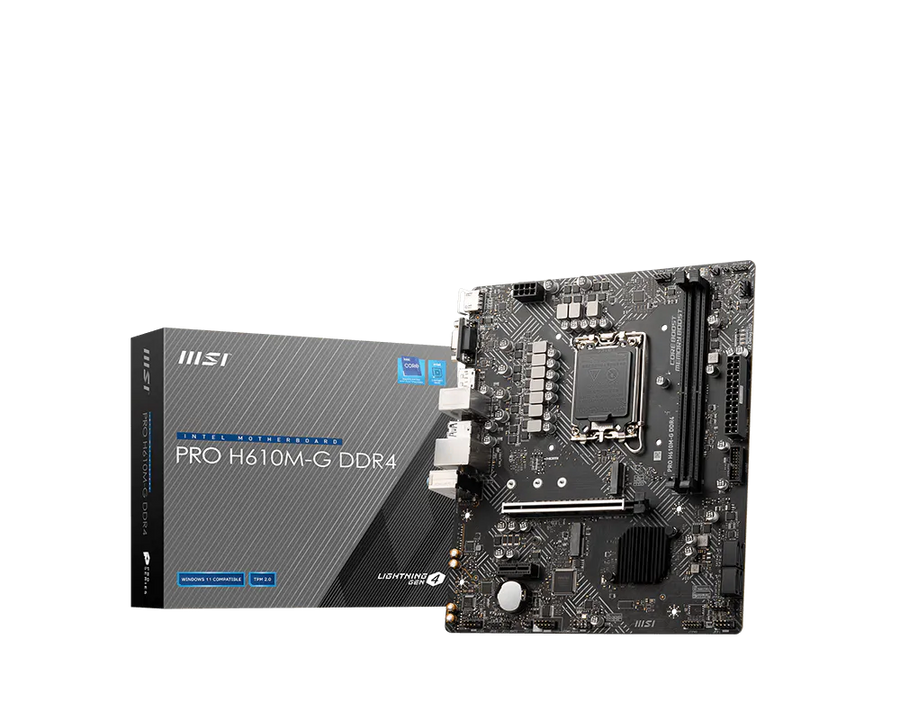

MSI Pro H610M-G Motherboard (DDR4) (LGA1700) (TDP 75W) (M-ATX)

Motherboard● In Stock
$108.00
Qty
Flexible Payment Options
4 interest-free payments of $27.00 — Learn more
As low as $9.00/mo — Learn more
Lease-to-own from $2.07/wk — no credit needed. Apply at checkout
Finance from $4.50/mo — instant decisions. Learn more
🛡️30-Day Warranty
🚚Free Ship $1,200+
🔧Expert Support
Overview
ModelMSI PRO H610M-G DDR4
SeriesPRO Series
Form FactorMicro-ATX (mATX)
OS SupportWindows 11 64-bit, Windows 10 64-bit
Processor
CPU SocketLGA 1700
Supported CPUsIntel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron (LGA 1700)
ChipsetIntel H610
Chipset CoolingPassive Heatsink
CPU TDP Support75W
Power Design8+1+1 Phase (Core Boost)
Memory
Memory TypeDDR4
Memory Slots2x DIMM (UDIMM)
Max Memory64 GB
Supported Speeds2133 / 2400 / 2666 / 2800 / 2933 / 3000 / 3200 MHz (Max 3200 by JEDEC & POR)
ChannelDual Channel
Memory StandardNon-ECC, Unbuffered
XMP SupportYes (MSI OC LAB Tested XMP Profiles)
Expansion Slots
PCIe x16 Slot1x PCIe 4.0 x16 (from CPU) — Steel Armor reinforced
PCIe x1 Slot1x PCIe 3.0 x1
M.2 Slot (Storage)1x M.2 (Turbo Gen3, up to 32 Gb/s)
M.2 Slot (Wi-Fi)1x M.2 E-Key (PCIe Wi-Fi module only)
Storage
SATA III Ports4x SATA III (6 Gb/s)
Display Output (Integrated Graphics)
HDMI1x HDMI 2.1 with HDR — up to 4K @ 60Hz
DisplayPort1x DisplayPort 1.4 — up to 4K @ 60Hz
VGA1x VGA (D-Sub) — up to 2048×1536 @ 50Hz / 1920×1200 @ 60Hz
USB
USB 3.2 Gen 1 (Rear)2x USB 3.2 Gen 1 Type-A (5 Gb/s)
USB 3.2 Gen 1 (Front Header)2x USB 3.2 Gen 1 (internal connector)
USB 2.0 (Rear)4x USB 2.0 Type-A (via hub GL850G)
USB 2.0 (Front Header)2x USB 2.0 (internal connector)
Networking
LAN ControllerIntel I219V
LAN Speed1 Gbps
Wi-FiNone (M.2 E-Key slot for optional Wi-Fi module)
Audio
Audio CodecRealtek ALC892 / ALC897
Channels7.1-Channel HD Audio (Audio Boost)
Rear Audio Jacks3x 3.5mm Stereo Jacks
Front Audio Header1x HD Audio Front Panel Header
Rear I/O Panel
PS/21x PS/2 (MiniDIN-6)
LAN1x RJ-45
USB 3.2 Gen 1 Type-A2x
USB 2.0 Type-A4x
Video Outputs1x HDMI 2.1, 1x DisplayPort 1.4, 1x VGA
Audio Jacks3x 3.5mm
Internal Connectors
ATX Power1x 24-Pin ATX
CPU Power1x 8-Pin (12V ATX)
SATA III4x
USB 3.2 Gen 1 Header1x (supports 2x USB 3.2 Gen 1)
USB 2.0 Header1x (supports 2x USB 2.0)
Front Panel Audio Header1x HD Audio
RGB Header (12V)1x 4-Pin LED RGB
ARGB Header (5V)2x 3-Pin Addressable LED (ARGB)
CPU Fan Header1x 4-Pin (PWM)
System Fan Header1x 4-Pin SYS_FAN
TPM Header1x
Chassis Intrusion1x
BIOS
BIOS InterfaceMSI Click BIOS 5
BIOS NotesBIOS update may be required for 13th / 14th Gen Intel CPU support
Features & Technology
Core BoostPremium digital power layout for stable CPU power delivery
Memory BoostFully isolated DDR circuit for pure memory signal integrity
Lightning Gen4PCIe 4.0 solution — up to 64 GB/s bandwidth
Steel ArmorReinforced PCIe x16 slot with extra solder points and EMI shielding
Frozr AI CoolingAuto fan adjustment based on CPU & GPU temperatures
Audio BoostIsolated audio PCB layer with dedicated HD audio processor
