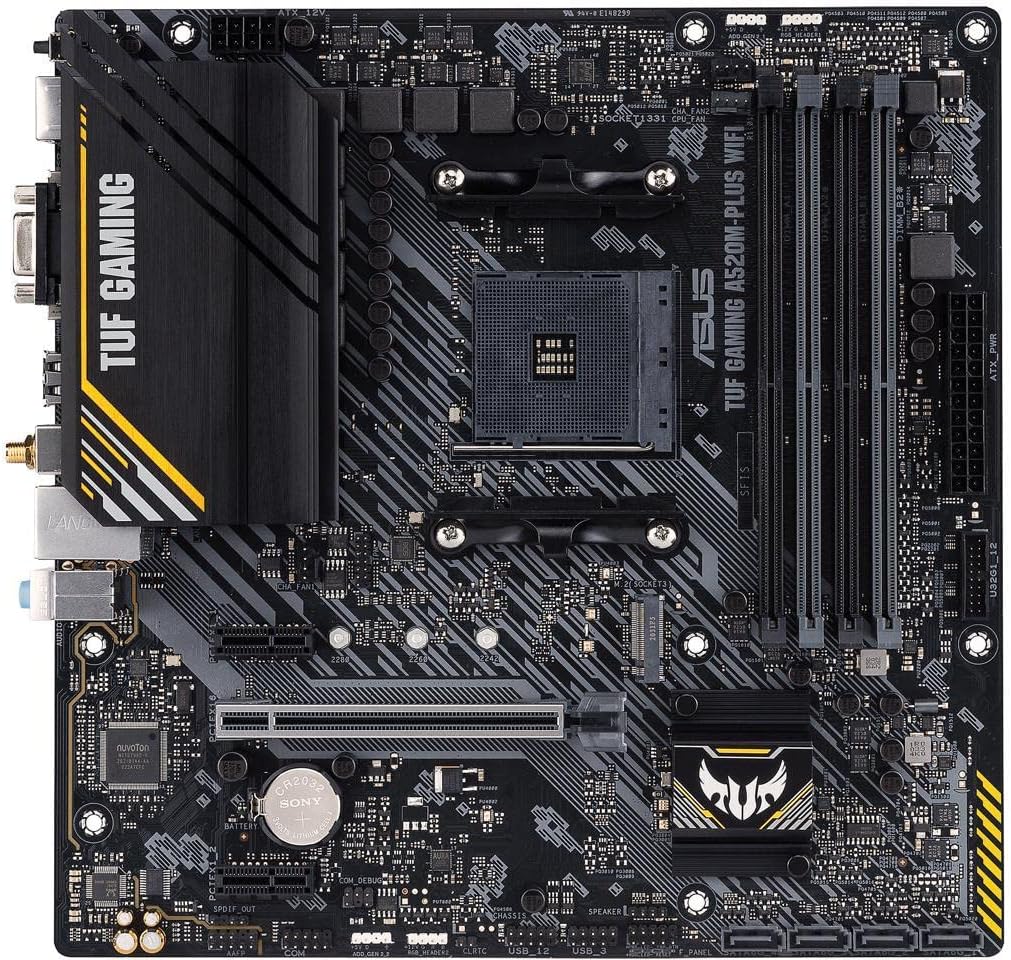

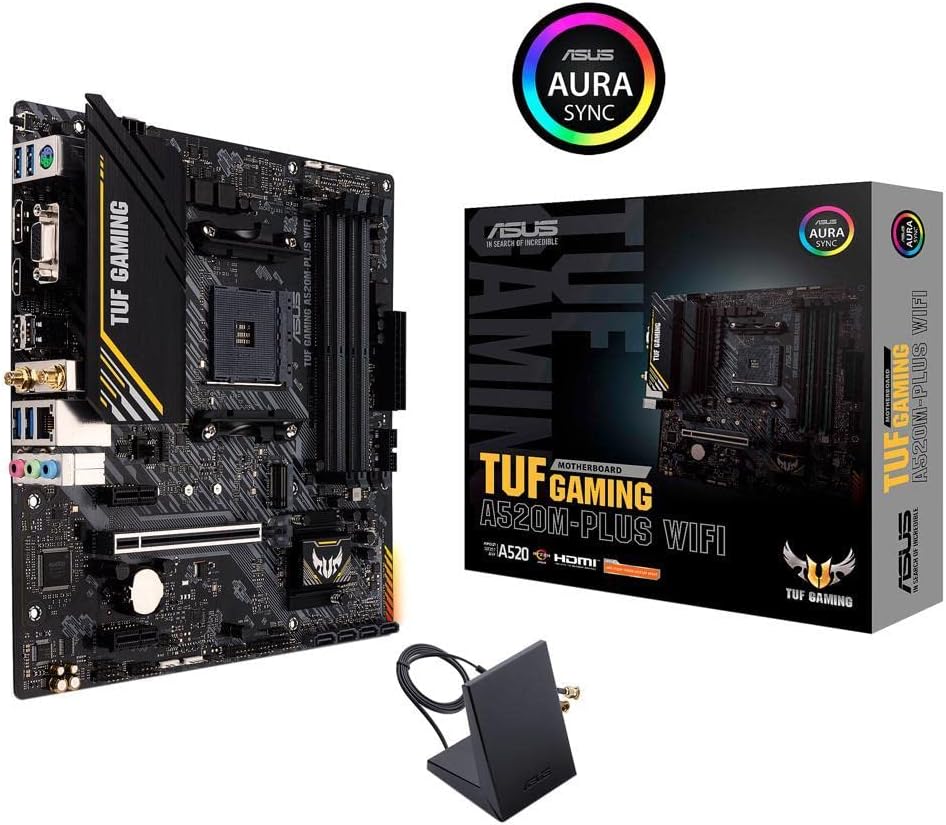

(AMD) ASUS TUF Gaming A520M-PLUS WiFi AM4 DDR4 Motherboard
(AMD) ASUS TUF Gaming A520M-PLUS WiFi AM4 DDR4 Motherboard — side view
(AMD) ASUS TUF Gaming A520M-PLUS WiFi AM4 DDR4 Motherboard — rear view
(AMD) ASUS TUF Gaming A520M-PLUS WiFi AM4 DDR4 Motherboard — detail view
(AMD) ASUS TUF Gaming A520M-PLUS WiFi AM4 DDR4 Motherboard — close-up
Geek Tech Supply

(AMD) ASUS TUF Gaming A520M-PLUS WiFi AM4 DDR4 Motherboard

Motherboard● Out of Stock
$109.99
Qty
Flexible Payment Options
4 interest-free payments of $27.49 — Learn more
As low as $9.16/mo — Learn more
Lease-to-own from $2.11/wk — no credit needed. Apply at checkout
Finance from $4.58/mo — instant decisions. Learn more
🛡️30-Day Warranty
🚚Free Ship $1,200+
🔧Expert Support
Overview
ModelTUF GAMING A520M-PLUS WIFI
Part Number90MB17F0-M0EAY0
Form FactorMicro-ATX (mATX)
ColorBlack / Orange
CPU
SocketAMD AM4
Supported ProcessorsAMD Ryzen™ 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series Desktop Processors
ChipsetAMD A520
Memory
Slots4 x DIMM
Max Capacity128 GB
Memory TypeDDR4, Unbuffered, Dual Channel
Supported Speeds4866(OC) / 4800(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 MHz
ECC SupportYes (varies by CPU)
Graphics & Display Output
HDMI1 x HDMI 2.1 (4K @ 60Hz)
DisplayPort1 x DisplayPort 1.2
D-Sub (VGA)1 x D-Sub
Expansion Slots
PCIe x161 x PCIe 3.0 x16 slot (x16 mode) — SafeSlot Core+
PCIe x12 x PCIe 3.0 x1 slots (AMD A520 Chipset)
Storage
M.2 Slot1 x M.2 slot (Key M), Type 2242 / 2260 / 2280 — PCIe 3.0 x4 & SATA modes, up to 32 Gbps
SATA Ports4 x SATA 6 Gb/s ports
RAID SupportRAID 0, 1, 10
Networking
LAN ControllerRealtek 1 Gb Ethernet (1 x RJ-45)
Wi-Fi StandardWi-Fi 5 (802.11ac), 1×1, 2.4 GHz / 5 GHz, up to 433.3 Mbps
BluetoothBluetooth 5.0
LAN ProtectionTUF LANGuard
LAN SoftwareASUS Turbo LAN (cFosSpeed traffic-shaping technology)
Audio
Audio CodecRealtek ALC887
Channel Support7.1-Channel Surround Sound HD Audio
Playback ResolutionUp to 24-bit / 192 kHz
Audio FeaturesAudio Shielding, Dedicated Audio PCB Layers, Premium Japanese Audio Capacitors, Jack-Detection, Multi-Streaming, Front Panel Jack Retasking
Rear Audio Jacks3 x Audio Jacks
Digital Audio1 x S/PDIF Out header (onboard)
Rear I/O Ports
USB 3.2 Gen 1 (5 Gbps)4 x Type-A (one with BIOS FlashBack™ function)
USB 2.02 x Type-A
Display Outputs1 x DisplayPort 1.2, 1 x HDMI 2.1, 1 x D-Sub
LAN1 x RJ-45 Gigabit Ethernet
Wi-Fi Antenna2 x Wi-Fi Antenna Ports
PS/21 x PS/2 Keyboard/Mouse Combo Port
Audio Jacks3 x 3.5mm Audio Jacks
BIOS FlashBack™1 x BIOS FlashBack™ Button
Back I/O ShieldStainless-Steel Back I/O

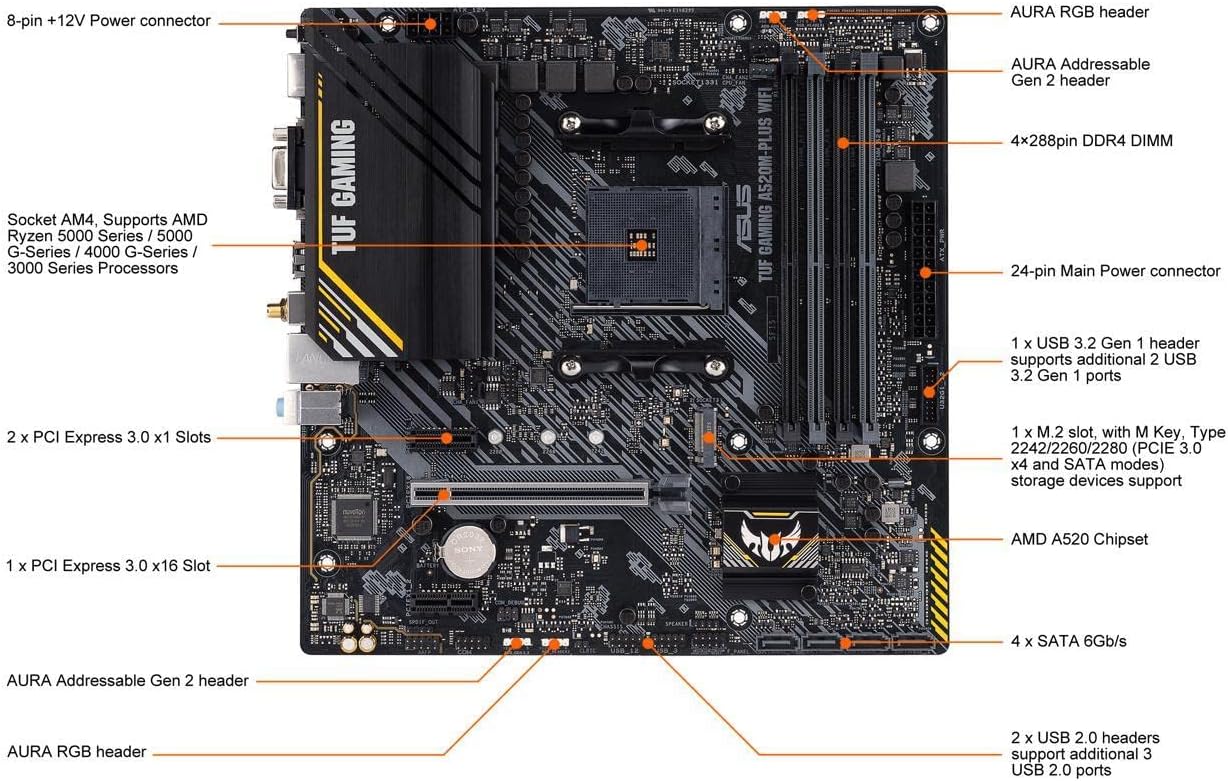

Internal Connectors & Headers
USB 3.2 Gen 1 Header1 x Header (supports 2 additional USB 3.2 Gen 1 ports)
USB 2.0 Headers2 x Headers (supports 3 additional USB 2.0 ports)
CPU Fan Header1 x 4-pin CPU Fan Header
Chassis Fan Headers2 x 4-pin Chassis Fan Headers (PWM/DC auto-detection)
Main Power Connector1 x 24-pin ATX
CPU Power Connector1 x 8-pin +12V
AURA Addressable Gen 2 Headers2 x AURA Addressable Gen 2 Headers
AURA RGB Headers2 x AURA RGB Headers
Front Panel Audio1 x Front Panel Audio Header (AAFP)
S/PDIF Out1 x S/PDIF Out Header
System Panel1 x 10-1 pin System Panel Header
TPM Header1 x SPI TPM Header (14-1 pin)
COM Port Header1 x COM Port Header
Speaker Header1 x Speaker Header
Clear CMOS Header1 x Clear CMOS Header
Protection & Durability
TUF Protection FeaturesDIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O
PCIe Slot ReinforcementSafeSlot Core+ — One-piece stainless-steel brace with strengthened solder points
PCB Layer TechnologyStack Cool 3+ (2-oz copper layers for heat dissipation)
CapacitorsProprietary — up to 52% wider temperature tolerance, 2.5× longer lifespan
ChokesMilitary-Grade TUF Certified Chokes
VRMIntegrated DIGI+ VRM with Large High-Mass VRM Heatsink
DRAM Slot ProtectionDRAM Overvoltage Protection, Q-DIMM
RGB & Aesthetics
RGB SystemASUS Aura Sync
RGB Headers2 x AURA RGB Headers
Addressable RGB Headers2 x AURA Addressable Gen 2 Headers (LED count auto-detection, backward compatible)
BIOS
BIOS TypeASUS UEFI BIOS (EZ Mode)
BIOS FeaturesASUS CrashFree BIOS 3, ASUS EZ Flash 3, BIOS FlashBack™ (update without CPU/RAM installed)
BIOS FlashBack™Yes — FAT32 USB stick, dedicated button & LED indicator
Software
ASUS Exclusive SoftwareArmoury Crate, Aura Creator, Aura Sync, AI Suite 3, Fan Xpert 2+, DIGI+ VRM, TurboV EVO, EPU, EZ Update, PC Cleaner, System Information
Networking SoftwareASUS Turbo LAN (cFosSpeed)
Bundled UtilitiesTUF GAMING CPU-Z, AI Charger, DAEMON Tools, Norton Anti-Virus (Trial), WinRAR, MyASUS
OS SupportWindows 10 / Windows 11

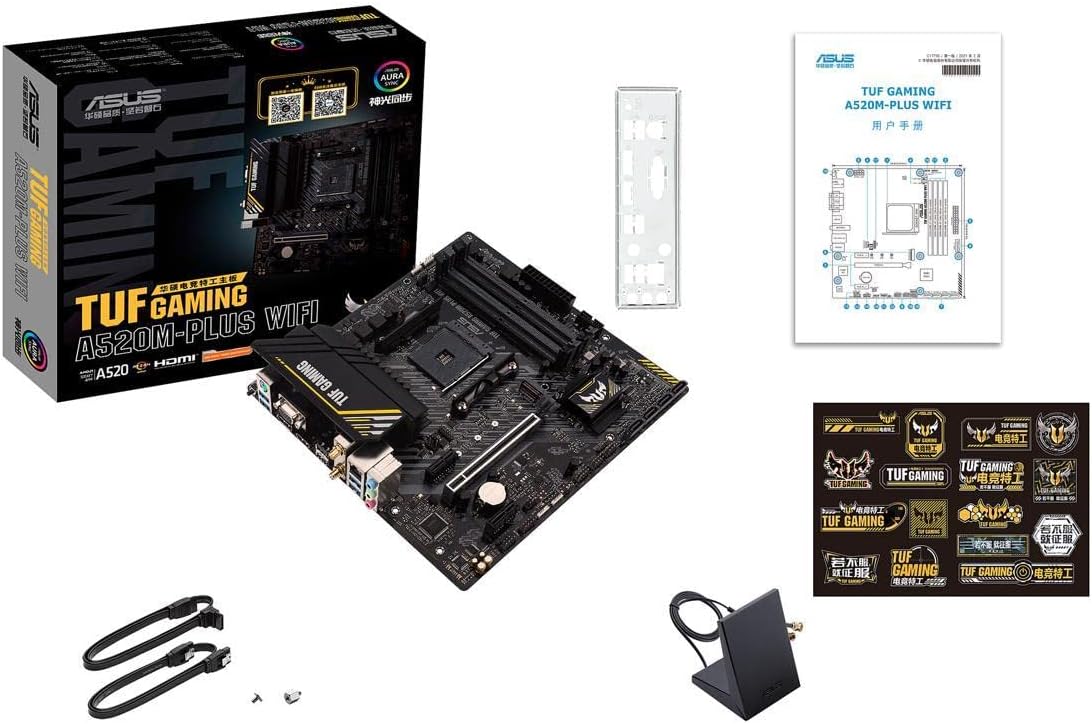

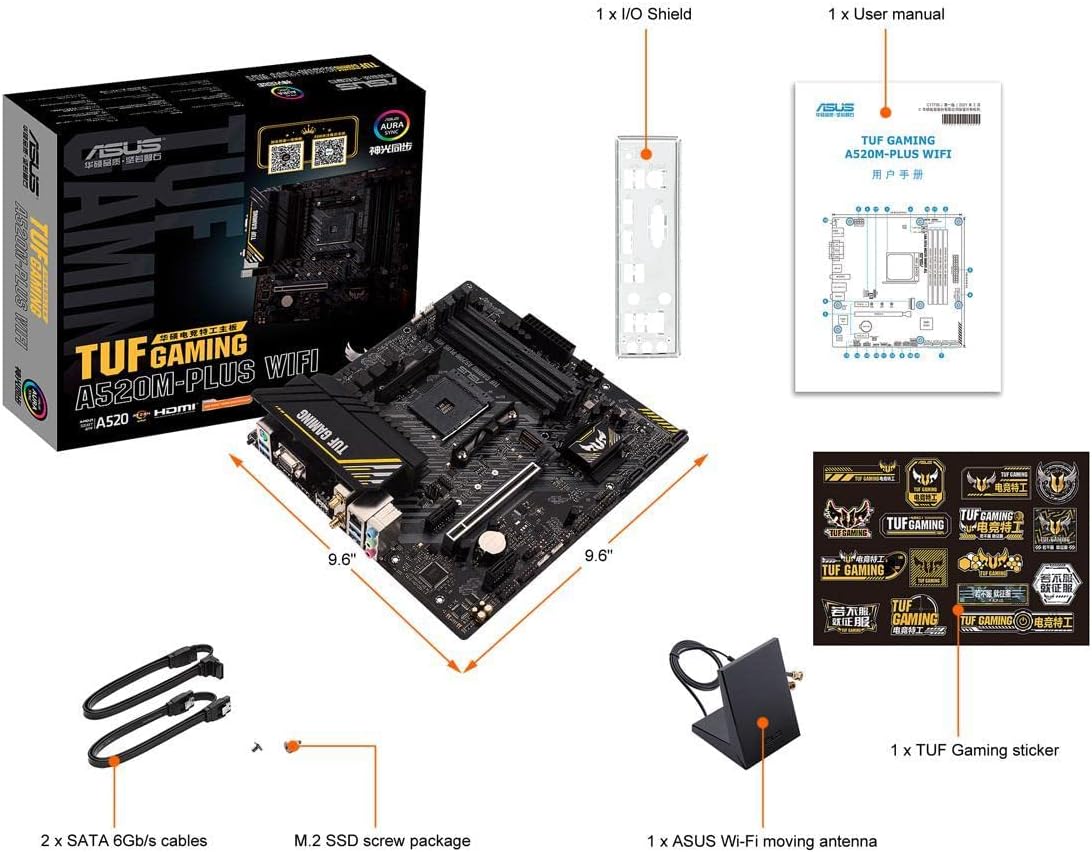

In The Box
Cables2 x SATA 6 Gb/s Cables
Miscellaneous1 x I/O Shield, 1 x M.2 SSD Screw Package, 1 x TUF Gaming Sticker, Wi-Fi Antenna
Installation Media1 x Support DVD
Documentation1 x TUF Certification Card, 1 x User Manual
