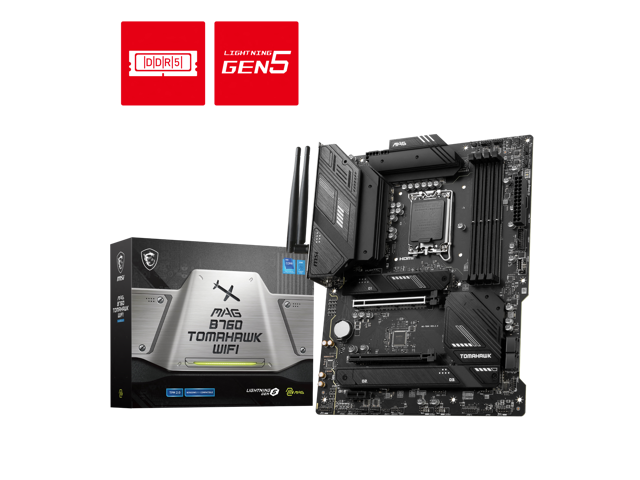

MSI Mag B760 Tomahawk WiFi 6E Motherboard (DDR5) (Intel) (TDP 140W) (LGA1700) (ATX) CLICK TO EXPAND
MSI Mag B760 Tomahawk WiFi 6E Motherboard (DDR5) (Intel) (TDP 140W) (LGA1700) (ATX)
MSI Mag B760 Tomahawk WiFi 6E Motherboard (DDR5) (Intel) (TDP 140W) (LGA1700) (ATX)
MSI Mag B760 Tomahawk WiFi 6E Motherboard (DDR5) (Intel) (TDP 140W) (LGA1700) (ATX)
MSI Mag B760 Tomahawk WiFi 6E Motherboard (DDR5) (Intel) (TDP 140W) (LGA1700) (ATX)
MSI Mag B760 Tomahawk WiFi 6E Motherboard (DDR5) (Intel) (TDP 140W) (LGA1700) (ATX)
MSI Mag B760 Tomahawk WiFi 6E Motherboard (DDR5) (Intel) (TDP 140W) (LGA1700) (ATX)
GTech

MSI Mag B760 Tomahawk WiFi 6E Motherboard (DDR5) (Intel) (TDP 140W) (LGA1700) (ATX)

Motherboard● In Stock
$167.98
Qty
Flexible Payment Options
4 interest-free payments of $41.99 — Learn more
As low as $13.99/mo — Learn more
Lease-to-own from $3.23/wk — no credit needed. Apply at checkout
Finance from $6.99/mo — instant decisions. Learn more
🛡️30-Day Warranty
🚚Free Ship $1,200+
🔧Expert Support
Overview
ModelMSI MAG B760 TOMAHAWK WIFI (DDR5)
Part Number7D96-003R / B760TAMAWIFI / 911-7D96-003
Form FactorATX
ChipsetIntel B760
PCB Layers6-Layer, 2 oz Thickened Copper, Server-Grade Material
ColorBlack
OS SupportWindows 10, Windows 11
CPU / Socket
CPU SocketLGA 1700
Supported ProcessorsIntel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron, Intel Processor 300(T)
CPU TDP Support140W
Power Delivery
VRM Phases12+1+1 Duet Rail Power System
Power Stage Rating75A DrMOS
CPU Power Connectors2 x 8-pin (Dual 8-pin)
ATX Power Connector1 x 24-pin
Power FeaturesCore Boost, Memory Boost, Game Boost, LLC (Load Line Calibration)
Memory
Memory TypeDDR5
DIMM Slots4 x DDR5 DIMM
Memory ChannelsDual Channel
Max Memory192 GB
Memory Speed (Native)DDR5-4800
Memory Speed (OC)DDR5-5000 / 5200 / 5400 / 5600 / 5800 / 6000 / 6200 / 6400 / 6600 / 6800 / 7000+ MHz (OC)
OC ProfilesXMP (Intel Extreme Memory Profile)
Memory TechnologySMT Welding Process, Memory Boost
Expansion Slots
PCIe Slot 11 x PCIe 5.0 x16 (Steel Armor, Lightning Gen 5) — up to 128 GB/s
PCIe Slot 21 x PCIe 4.0 x16 (runs at x1 mode)
PCIe Slot 31 x PCIe 3.0 x4
Total PCIe Slots3
PCIe Slot ReinforcementSteel Armor (extra solder points, EMI shielding)
Storage
M.2 Slots3 x M.2 (all with M.2 Shield Frozr thermal covers)
M.2 Slot 1PCIe 4.0 x4 (Gen 4), 64 Gbps — supports 2242 / 2260 / 2280 / 22110 (M-Key)
M.2 Slot 2PCIe 4.0 x4 (Gen 4), 64 Gbps — supports 2242 / 2260 / 2280 (M-Key)
M.2 Slot 3PCIe 4.0 x4 (Gen 4), 64 Gbps — supports 2242 / 2260 / 2280 (M-Key)
M.2 WiFi Key1 x M.2 2230 (E-Key) — for Wi-Fi module
SATA Ports4 x SATA 6 Gb/s
M.2 Thermal SolutionM.2 Shield Frozr (all 3 slots covered)
USB Connectivity
Rear USB 3.2 Gen 2x21 x Type-C (20 Gbps)
Rear USB 3.2 Gen 25 x (Type-A + Type-C) — 10 Gbps
Rear USB 3.2 Gen 12 x Type-A (5 Gbps)
Rear USB 2.08 x Type-A (480 Mbps)
Total Rear USB Ports9
Front Panel USB Headers1 x USB 3.2 Gen 1 header (2x Type-A), 1 x USB 3.2 Gen 2 Type-C header, 2 x USB 2.0 headers (4x Type-A)
USB TechnologyIntel Turbo USB 3.2 Gen 2 (Intel controller)
Video Output
Display Outputs1 x HDMI, 1 x DisplayPort (requires CPU with integrated graphics)
Networking
Ethernet1 x 2.5 Gb/s (Realtek RTL8125BG controller)
Wi-Fi StandardWi-Fi 6E (802.11ax) — Intel module, 6 GHz spectrum, MU-MIMO, BSS Color
Wi-Fi Max SpeedUp to 2400 Mbps
BluetoothBluetooth 5.3
AntennaExternal Wi-Fi antenna (included)
Audio
Audio CodecRealtek ALC897
Audio Channels7.1-Channel High Definition Audio
Audio FeaturesAudio Boost, S/PDIF Output
Cooling & Thermal
VRM HeatsinkExtended Heatsink Design, 7W/mK MOSFET thermal pads, additional choke thermal pads
M.2 CoolingM.2 Shield Frozr (all 3 M.2 slots)
PCB Cooling6-layer server-grade PCB with 2 oz thickened copper
Fan Headers7 x Fan / Pump headers (including 1 x dedicated pump-fan header)
RGB & Headers
ARGB Headers2 x Addressable RGB (5V, 3-pin)
RGB Headers2 x Standard RGB (12V, 4-pin)
Thunderbolt Header1 x Thunderbolt add-on card header
Rear I/O Panel
I/O ShieldPre-installed I/O Shield (integrated)
Video Out1 x HDMI, 1 x DisplayPort
USB Ports1x USB 3.2 Gen 2x2 Type-C (20G), 5x USB 3.2 Gen 2 (Type-A + Type-C, 10G), 2x USB 3.2 Gen 1 Type-A (5G), 8x USB 2.0 Type-A
LAN Port1 x 2.5 GbE RJ-45
Wi-Fi Antenna Connector2 x SMA antenna connectors
Audio Jacks5 x 3.5mm Audio Jacks + 1 x Optical S/PDIF Out
BIOS & Software
BIOS TypeUEFI BIOS (EZ Mode / Advanced Mode)
BIOS FeaturesGame Boost, XMP, Resizable BAR, LLC, Fan Control
Debug LEDsOnboard POST status LEDs (CPU, DRAM, VGA, BOOT)
SoftwareMSI Center (Fan Center, Hardware Monitor, Profile Setting, True Color); AIDA64 Extreme 60-day trial
Physical Specifications
Form FactorATX
Dimensions305 mm x 244 mm (12.0" x 9.6")
PCB Standoff ProtectionProtective paint around screw holes; case standoff keep-out zone markings

Primary NVME M.2 Storage: Gen4
Secondary NVMe M.2 Storage: Gen4 x2
SATA Storage: x4
