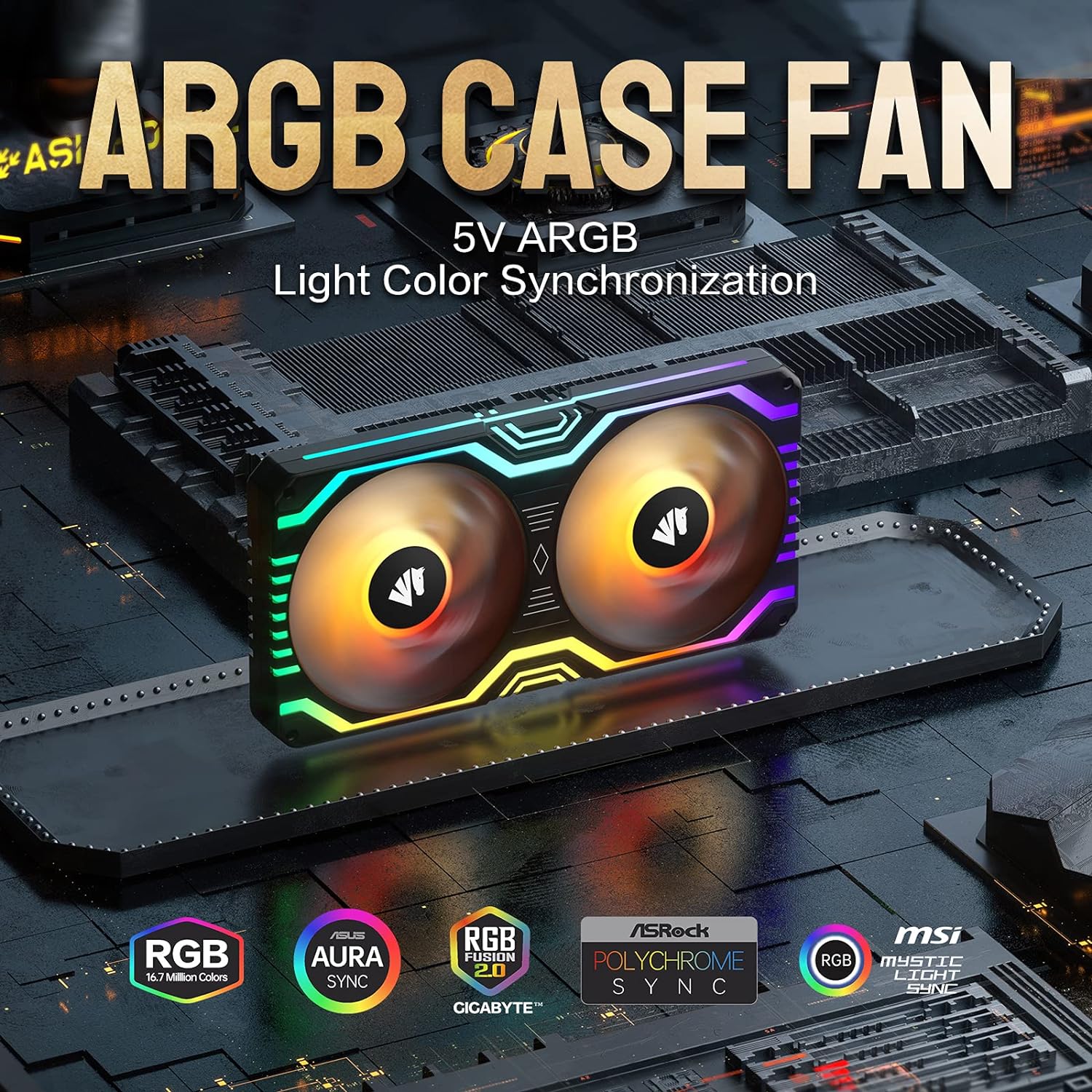

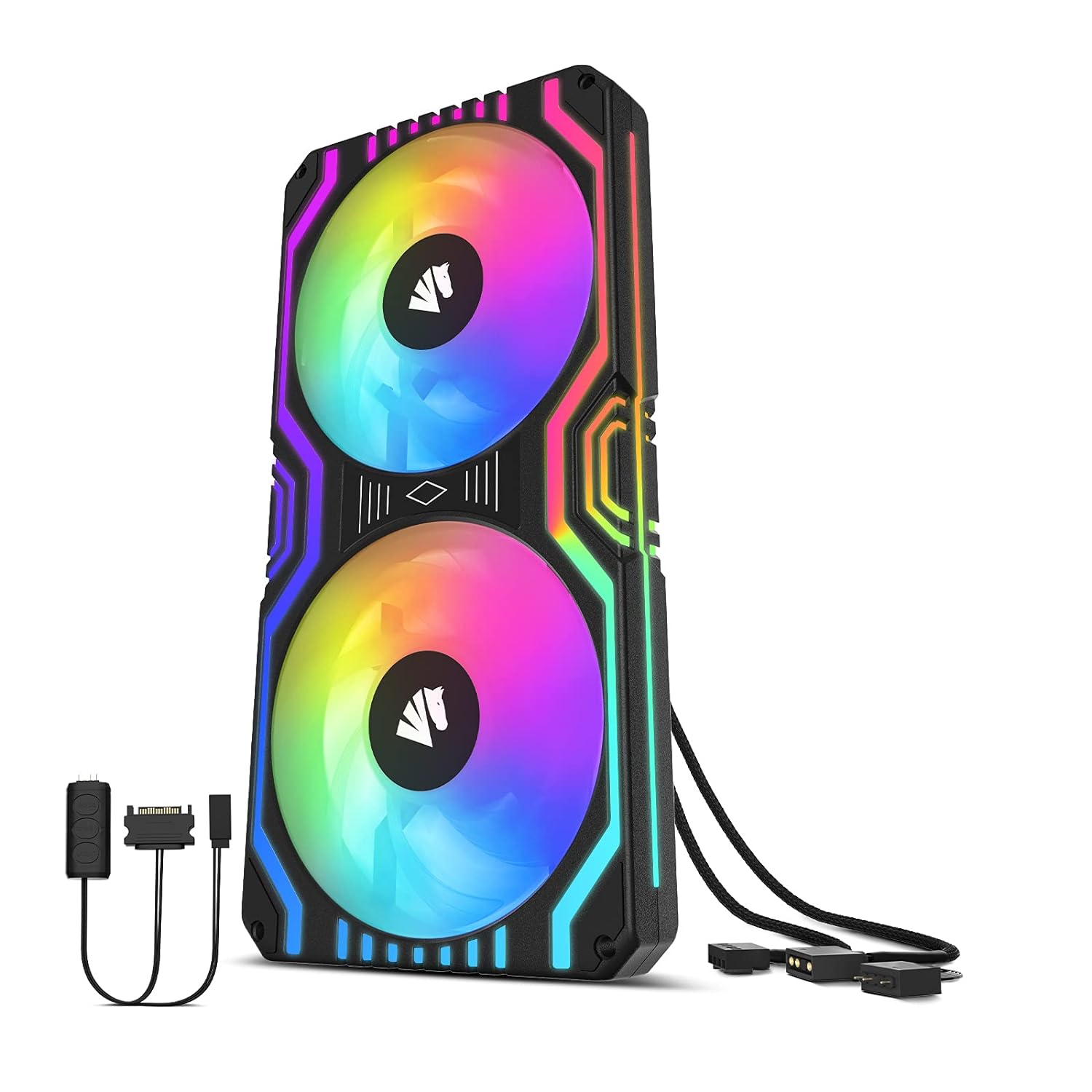

Asiahorse Matrix-Black 48 Addressable RGB LEDs 240MM CLICK TO EXPAND
Asiahorse Matrix-Black 48 Addressable RGB LEDs 240MM
Asiahorse Matrix-Black 48 Addressable RGB LEDs 240MM — side view
Asiahorse Matrix-Black 48 Addressable RGB LEDs 240MM — rear view
Asiahorse Matrix-Black 48 Addressable RGB LEDs 240MM — detail view
Asiahorse Matrix-Black 48 Addressable RGB LEDs 240MM - TieredUp Tech
Asiahorse Matrix-Black 48 Addressable RGB LEDs 240MM — angle view
Asiahorse Matrix-Black 48 Addressable RGB LEDs 240MM — top view
TieredUp Tech, Inc.

Asiahorse Matrix-Black 48 Addressable RGB LEDs 240MM

Computer Fans● In Stock
$42.00
Qty
Flexible Payment Options
4 interest-free payments of $10.50 — Learn more
As low as $3.50/mo — Learn more
Lease-to-own from $0.80/wk — no credit needed. Apply at checkout
Finance from $1.75/mo — instant decisions. Learn more
🛡️30-Day Warranty
🚚Free Ship $1,200+
🔧Expert Support

Technical Specifications

General / Product Identity
BrandAsiaHorse
Model NameMatrix-Black 48 Addressable RGB LEDs 240MM
ASINB08LQNHG4D
ColorBlack
Product TypeAll-in-One Integrated Square Frame Fan Kit
Use CasePC Case Cooling & CPU Liquid Cooling Radiator

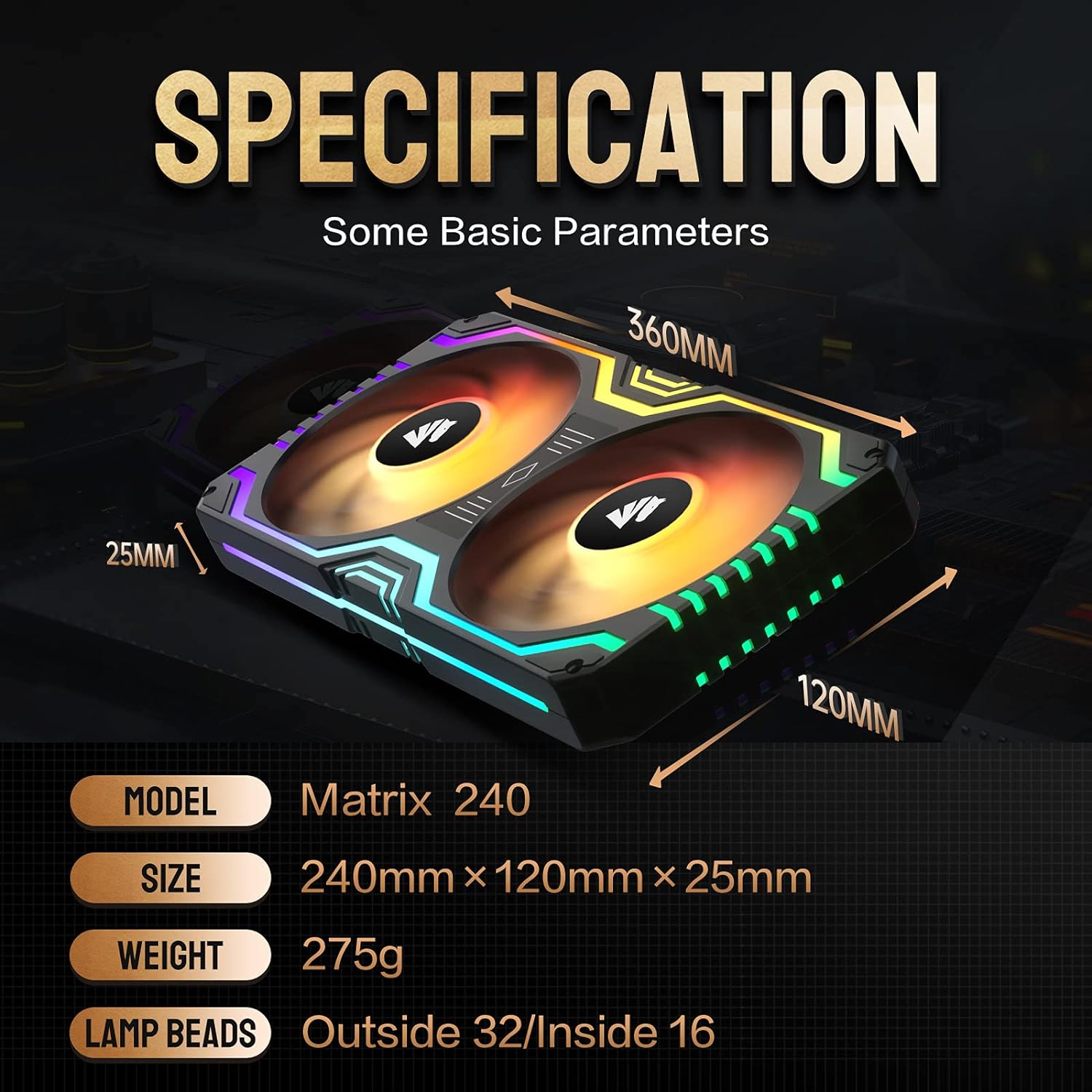

Fan Configuration
Number of Fans2 × 120mm
Individual Fan Size120mm
Total Kit Coverage240mm (fits 240mm radiator / case fan mounts)
Frame DesignIntegrated Square Frame (All-in-One Linked Module)
Anti-Vibration PadsYes — 4× rubber/sound-absorbing anti-vibration gaskets per fan
Fan Performance
Speed Range (RPM)800 – 1800 RPM (PWM-controlled)
Maximum Air Flow66.5 CFM (per fan at max speed)

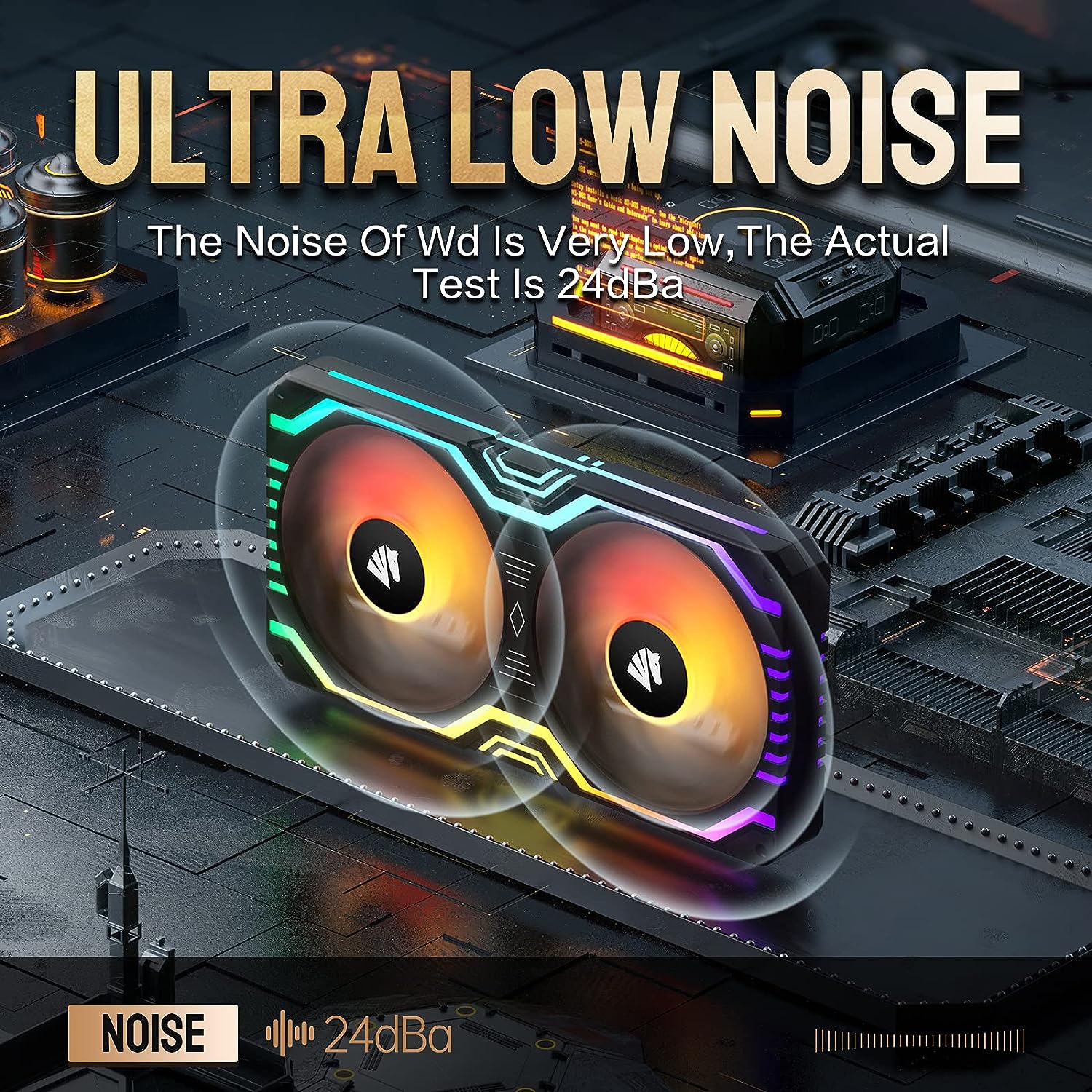

Noise Level16 – 34.3 dB(A)
Speed Control MethodPWM (4-pin) — dynamically adjusted via motherboard or system software
Built-in PWM ChipYes — integrated PWM chip, actively eliminates motor electromagnetic noise
Bearing & Motor
Bearing TypeFluid Dynamic / Hydraulic Bearing
Motor DesignMultiple new-design motors in series for improved stability and long service life
RGB Lighting
Total ARGB LEDs48 (24 per 120mm fan)
LED TypeAddressable RGB (ARGB) — independently controlled
LED Voltage5V
RGB Connector5V 3-pin ARGB header (male + female pass-through)
Color Customization16.8 million colors; full per-LED addressable control
Lighting PlacementIntegrated into square fan frame for maximized visual coverage
Connectors & Control
Fan Power Connector4-pin PWM
RGB Control Connector5V 3-pin ARGB (male output + female daisy-chain input)
Hub IncludedYes — integrated hub for consolidated connections
Controller TypeMB Sync (motherboard) and/or included Analog ARGB Controller
PWM ControlVia motherboard BIOS or system software
Compatibility
RGB Sync StandardsASUS Aura Sync, MSI Mystic Light, ASRock Polychrome Sync
Motherboard RequirementAny ARGB-capable motherboard with 5V 3-pin header (or use included analog controller)

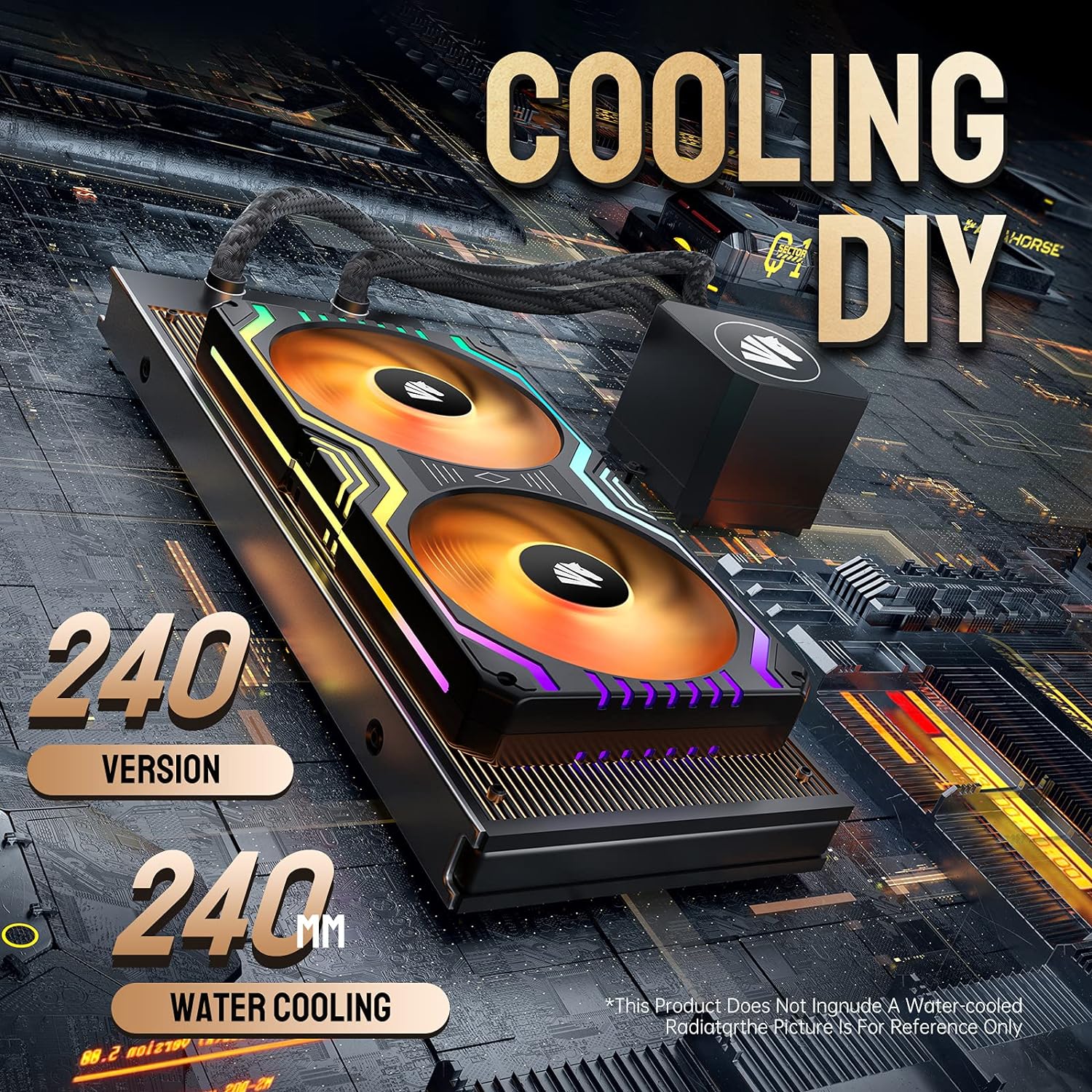

Installation CompatibilityPC case fan mounts (240mm spacing) & 240mm CPU liquid cooler radiators
Third-Party ARGB Daisy-ChainYes — female ARGB pass-through allows chaining non-AsiaHorse ARGB fans
Design & Build
Frame TypeIntegrated all-in-one square frame
Vibration Dampening4× anti-vibration rubber gaskets per fan; sound-absorbing rubber pad frame

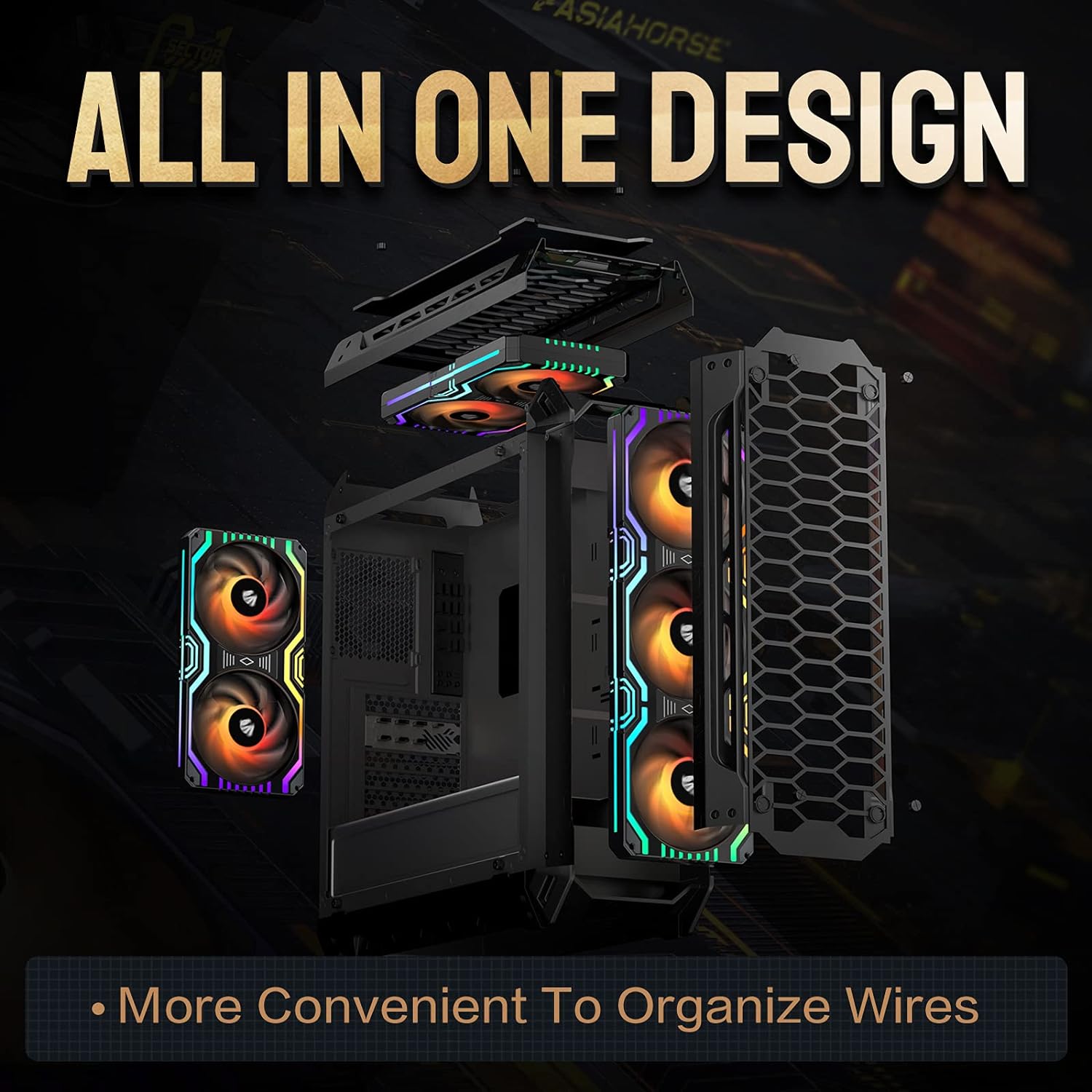

Cable ManagementIntegrated single-module design greatly reduces cable count and routing complexity
Mounting HardwareScrews included (standard 120mm fan mounting pattern)
Noise Reduction FeaturesBuilt-in PWM chip eliminates motor EM noise; rubber pad frame absorbs vibration
What's in the Box
Fans2 × 120mm ARGB PWM fans (integrated 240mm module)
ControllerAnalog ARGB controller (for non-ARGB motherboard use)
HubYes — integrated fan hub for simplified connections
ScrewsYes — mounting screws included
ARGB CablesMale ARGB output cable + female ARGB pass-through cable
