Asiahorse Matrix-White 48 Addressable RGB LEDs 240MM CLICK TO EXPAND
Asiahorse Matrix-White 48 Addressable RGB LEDs 240MM
Asiahorse Matrix-White 48 Addressable RGB LEDs 240MM
Asiahorse Matrix-White 48 Addressable RGB LEDs 240MM
Asiahorse Matrix-White 48 Addressable RGB LEDs 240MM
Asiahorse Matrix-White 48 Addressable RGB LEDs 240MM
Asiahorse Matrix-White 48 Addressable RGB LEDs 240MM
Asiahorse Matrix-White 48 Addressable RGB LEDs 240MM
Asiahorse Matrix-White 48 Addressable RGB LEDs 240MM
TieredUp Tech, Inc.

Asiahorse Matrix-White 48 Addressable RGB LEDs 240MM

Computer Fans● In Stock
$37.20
Qty
Flexible Payment Options
4 interest-free payments of $9.30 — Learn more
As low as $3.10/mo — Learn more
Lease-to-own from $0.71/wk — no credit needed. Apply at checkout
Finance from $1.55/mo — instant decisions. Learn more
🛡️30-Day Warranty
🚚Free Ship $1,200+
🔧Expert Support

Technical Specifications

General
BrandAsiaHorse
ModelMatrix-White 48 ARGB 240MM
Model NumberMATRIX-240MM
ASINB08CXLP2H9
ColorWhite
Frame MaterialPlastic
ApplicationDesktop PC Case / CPU Liquid Cooling System
ManufacturerAsiahorse (Shenzhen) Industry Co., Ltd.
Physical Dimensions
Frame ConfigurationAll-in-One Integrated Square Frame

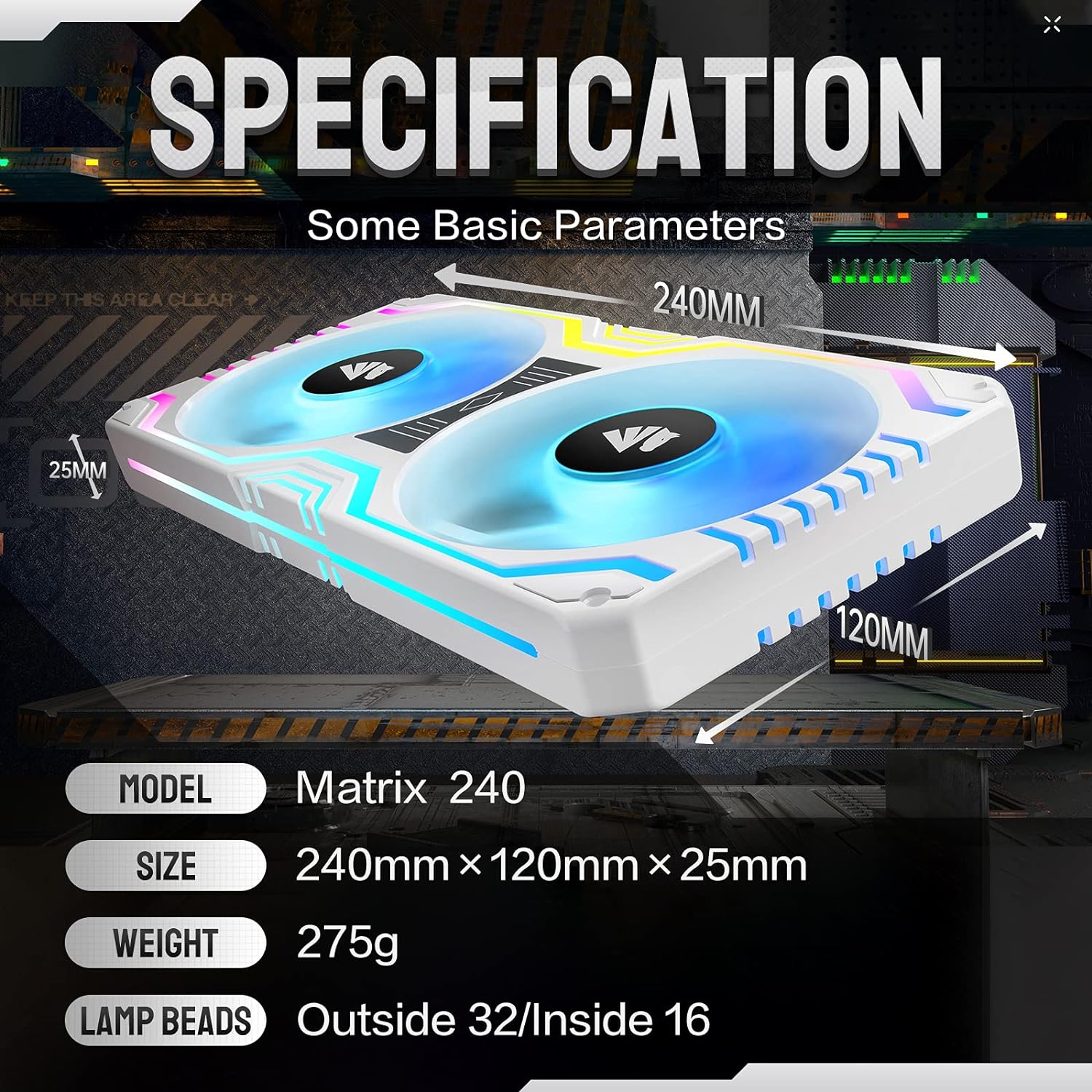

Total Assembly Size240 mm
Individual Fan Size120 mm x 120 mm
Number of Fans2 × 120 mm (integrated in single frame)
Fan Frame DesignSquare (maximizes area coverage and airflow)
Fan Performance

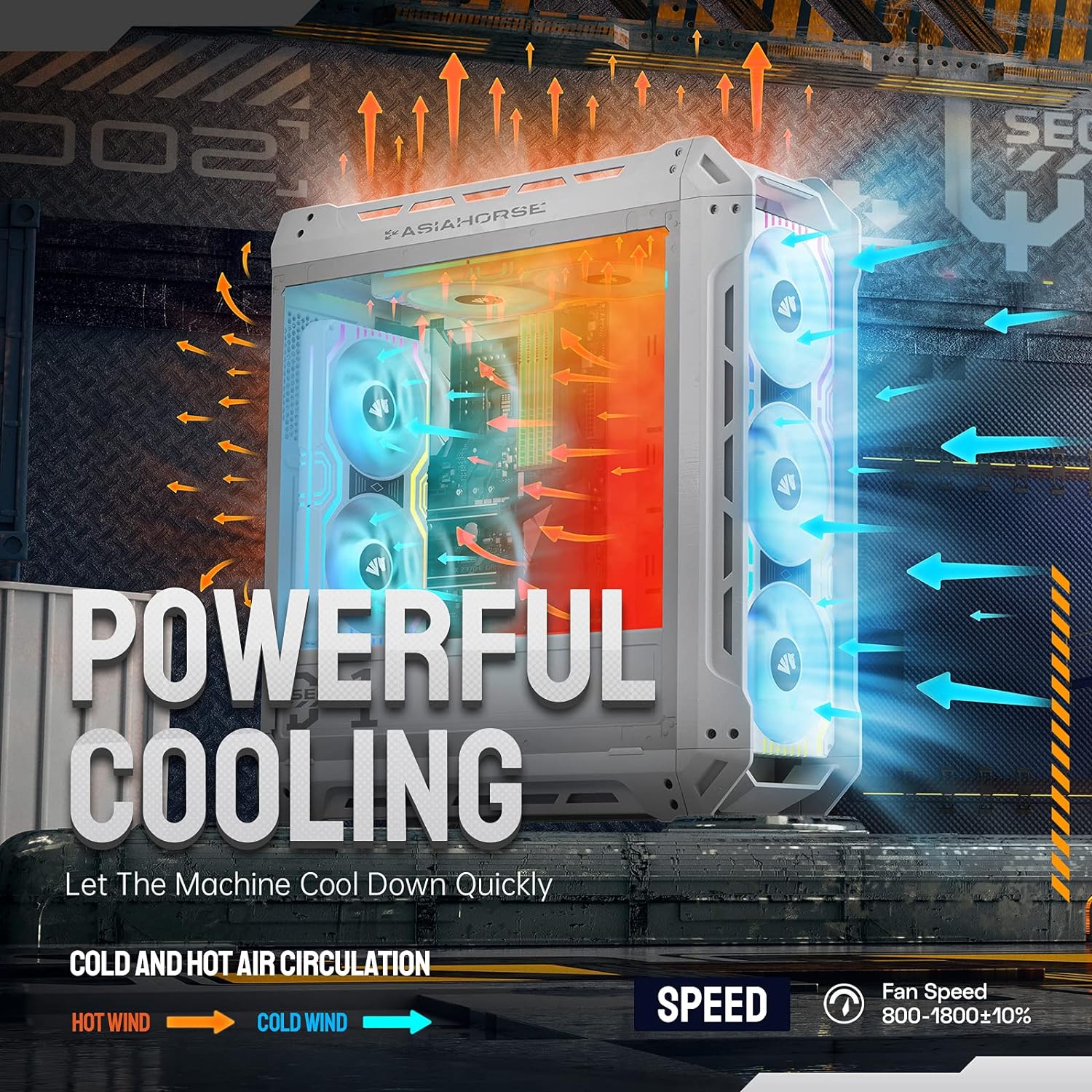

Fan Speed Range800 – 1800 RPM (PWM controlled)
Max Airflow66.5 CFM

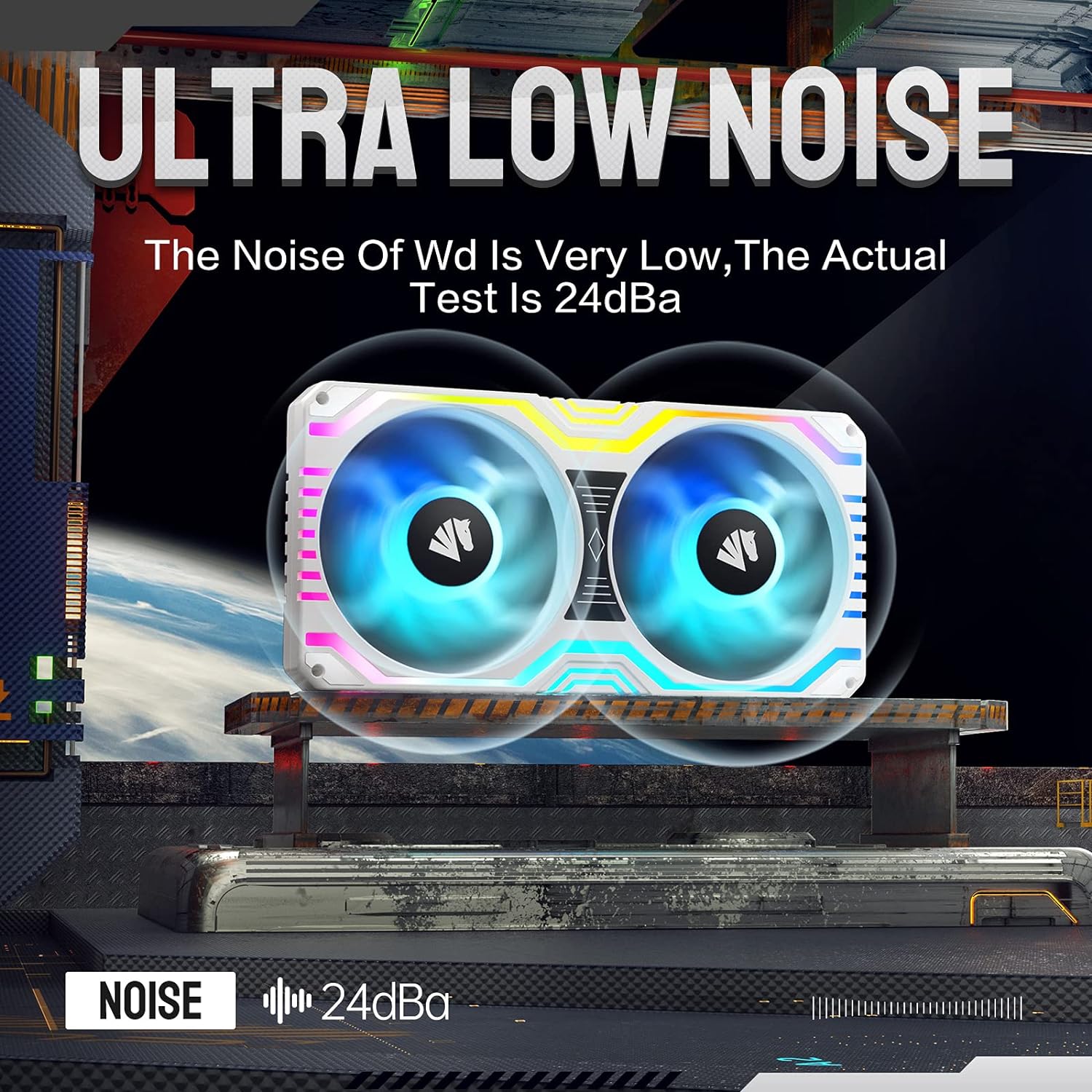

Noise Level16 – 34.3 dB(A)
Speed ControlPWM (4-pin) — motherboard auto-adjustable
Cooling TypeAir Cooling
Electrical
Fan Voltage12 V DC (4-pin PWM)
ARGB Voltage5 V (3-pin ARGB)

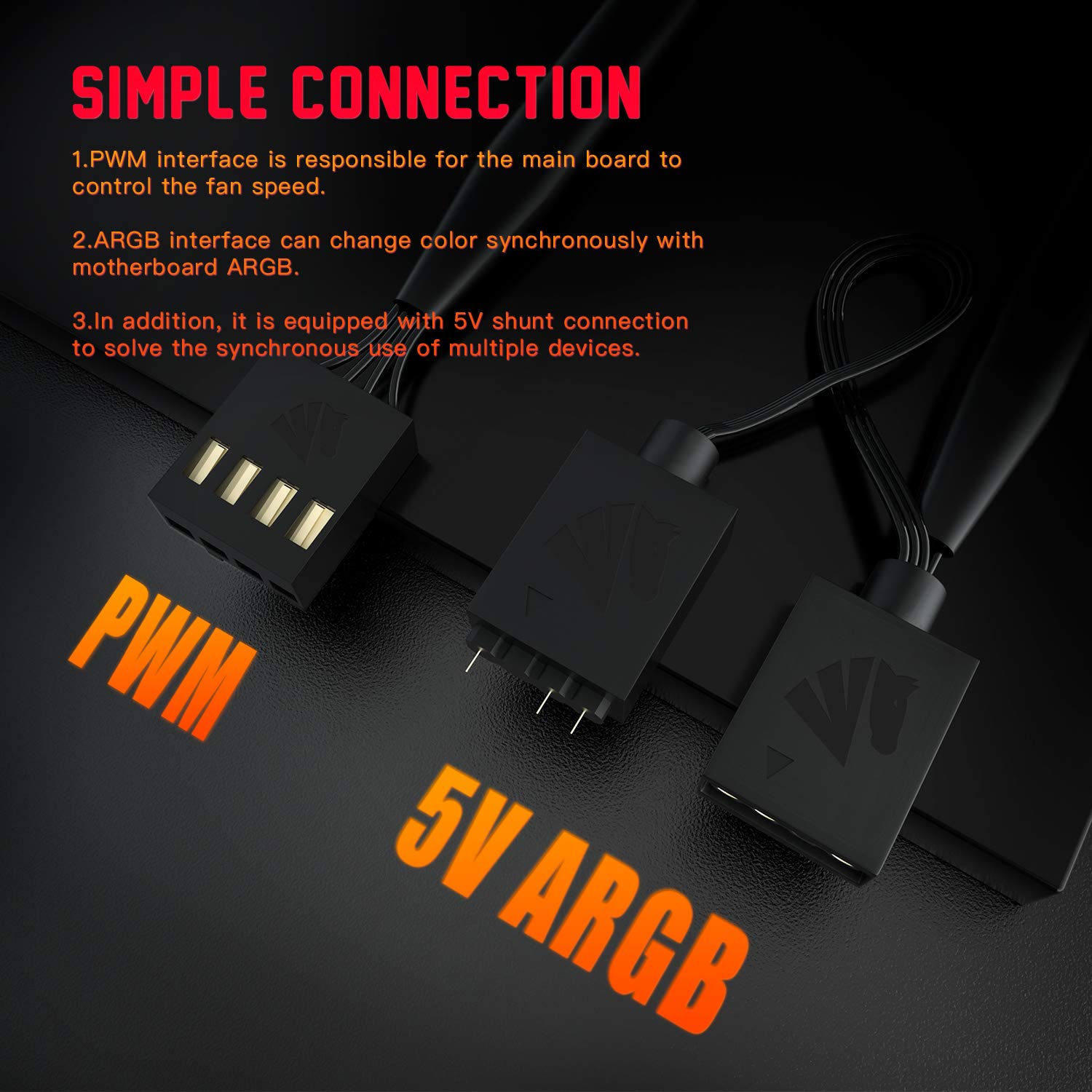

PWM Connector4-pin (integrated hub output)
ARGB Connector5V 3-pin (ARGB / ARGB MB header)
Motor & Bearing
Bearing TypeFluid Dynamic Bearing (FDB)
Motor TypeMultiple new-design motors in series (integrated PWM chip)
EMI Noise SuppressionBuilt-in PWM integrated chip actively eliminates motor electromagnetic noise
Fan Blade DesignGuide groove with arc-surface machining for increased air intake and reduced intake noise
RGB Lighting
LED TypeAddressable RGB (ARGB)
Total LED Count48 independently-controlled addressable RGB LEDs
LEDs per Fan24 addressable LEDs per 120 mm fan
LED Voltage5 V
Lighting StructureMatrix structure — cyclic bearing light effect with visible fade from all angles
Color CustomizationFull spectrum — individually addressable per LED
Compatibility & Sync

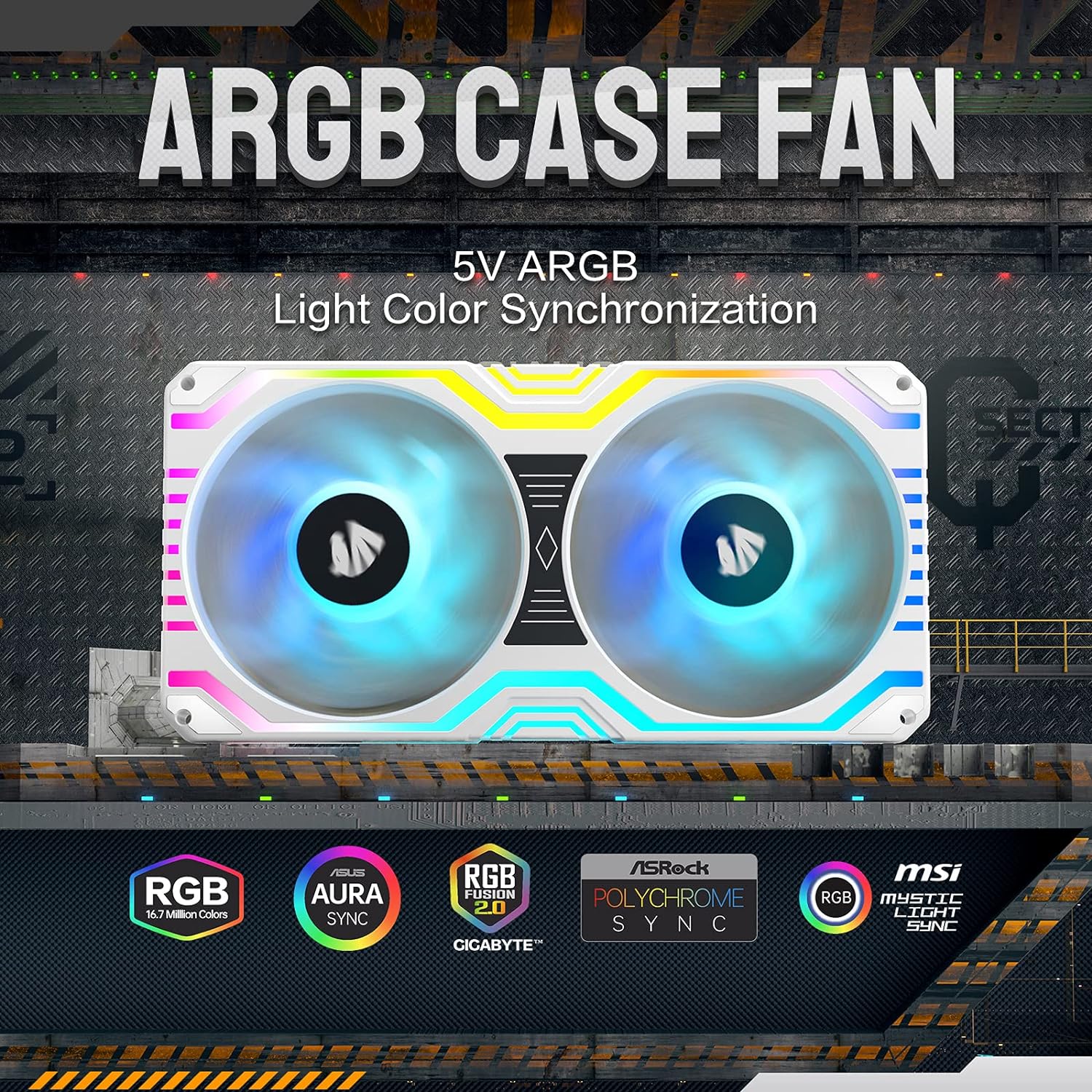

RGB Sync SupportMotherboard ARGB header (5V 3-pin) or included analog controller
MB Sync EcosystemsASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, ASRock Polychrome Sync

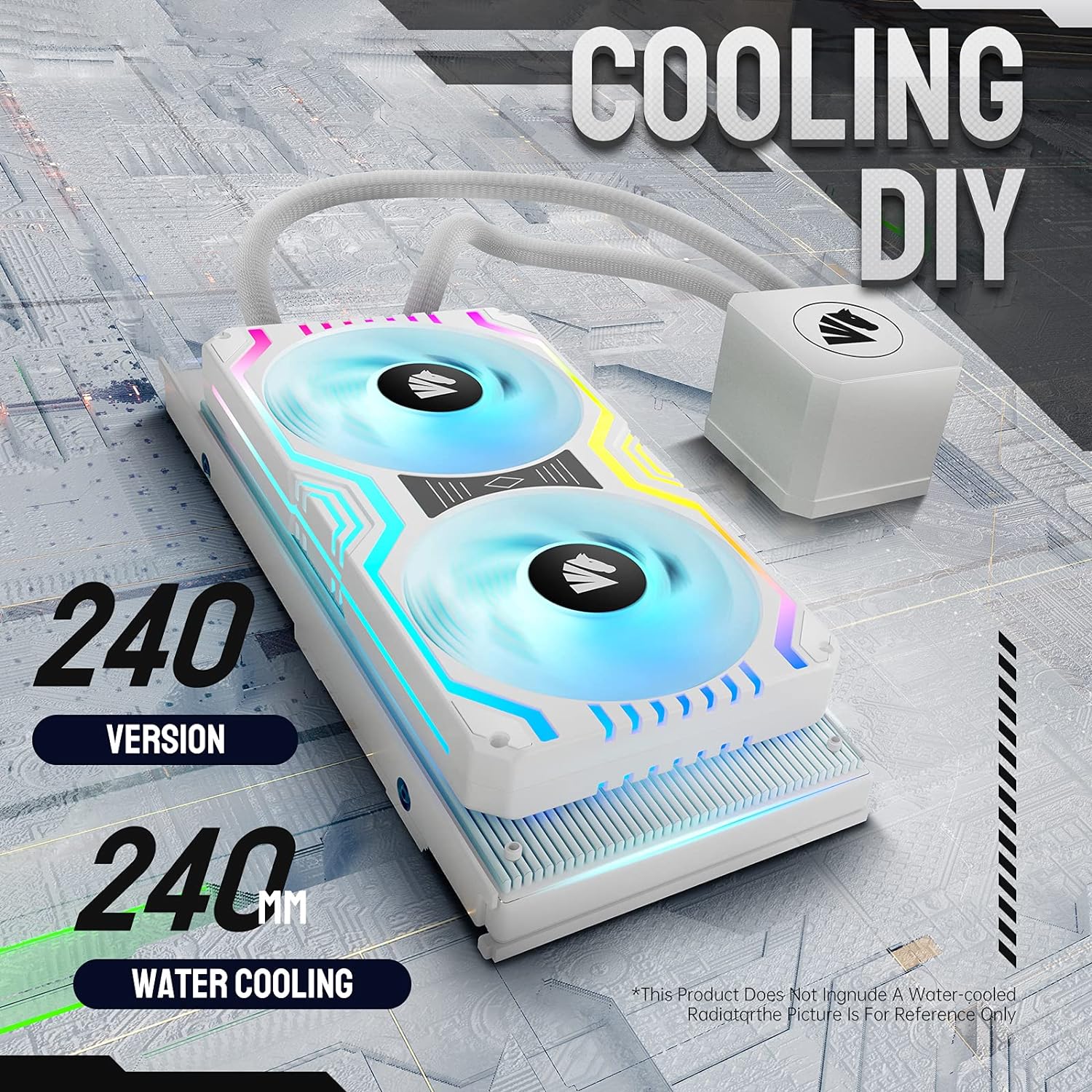

Fan Use CasesPC case fan, CPU liquid cooler radiator fan
CPU Type CompatibilityAll (universal)
Design & Noise Reduction
Anti-Vibration Pads4 × corner anti-vibration rubber gaskets (sound-absorbing)

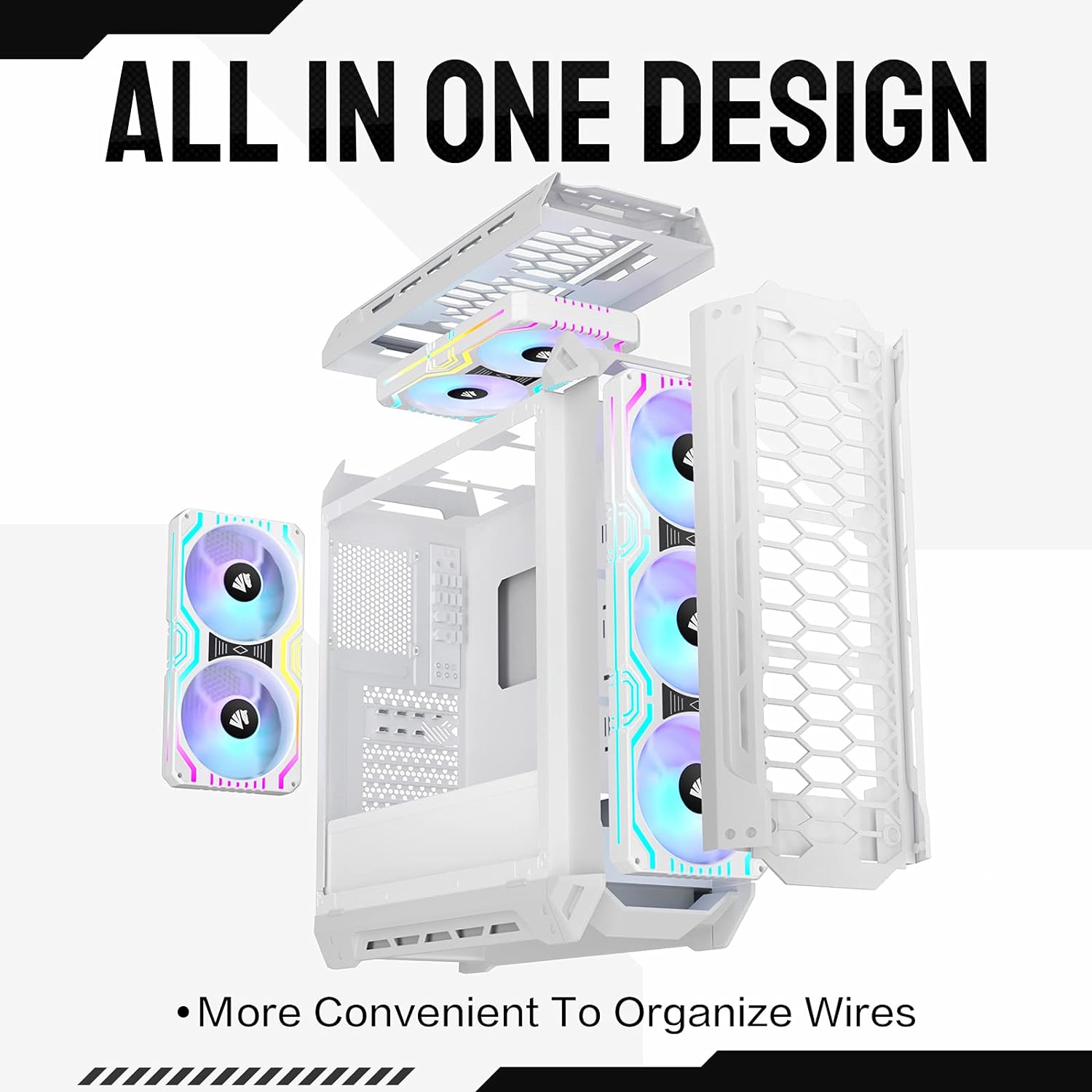

Frame IntegrationSingle integrated square frame housing both fans — reduces loss of air volume and air pressure
Air Channel DesignStrong 3D air channel for chassis; maximizes area coverage
Cable ManagementSingle PWM cable and single ARGB cable for the entire 2-fan assembly via integrated hub
Controller & Hub
Included ControllerMB Sync / Analog Controller (small hub included)
Control ModesMotherboard sync (ARGB header) or standalone analog RGB controller
Hub TypeIntegrated PWM + ARGB fan hub
Speed AdjustmentDynamic — via motherboard PWM signal or controller
Package Contents
Fans1 × integrated 240 mm square frame assembly (2 × 120 mm fans)
Controller1 × MB Sync / Analog RGB controller
Hub1 × Integrated PWM fan hub
Anti-Vibration Gaskets4 × corner rubber anti-vibration pads (pre-installed)

The Asiahorse Matrix-White is a pair of 140mm computer fans with addressable RGB lighting, designed to improve airflow while adding customizable color effects to your PC build.

Each fan features 48 individually addressable RGB LEDs built into its white frame, letting you sync lighting patterns through compatible motherboard software. At 140mm, these fans fit standard case mounts and deliver steady cooling for systems that need better ventilation and a visual element.
