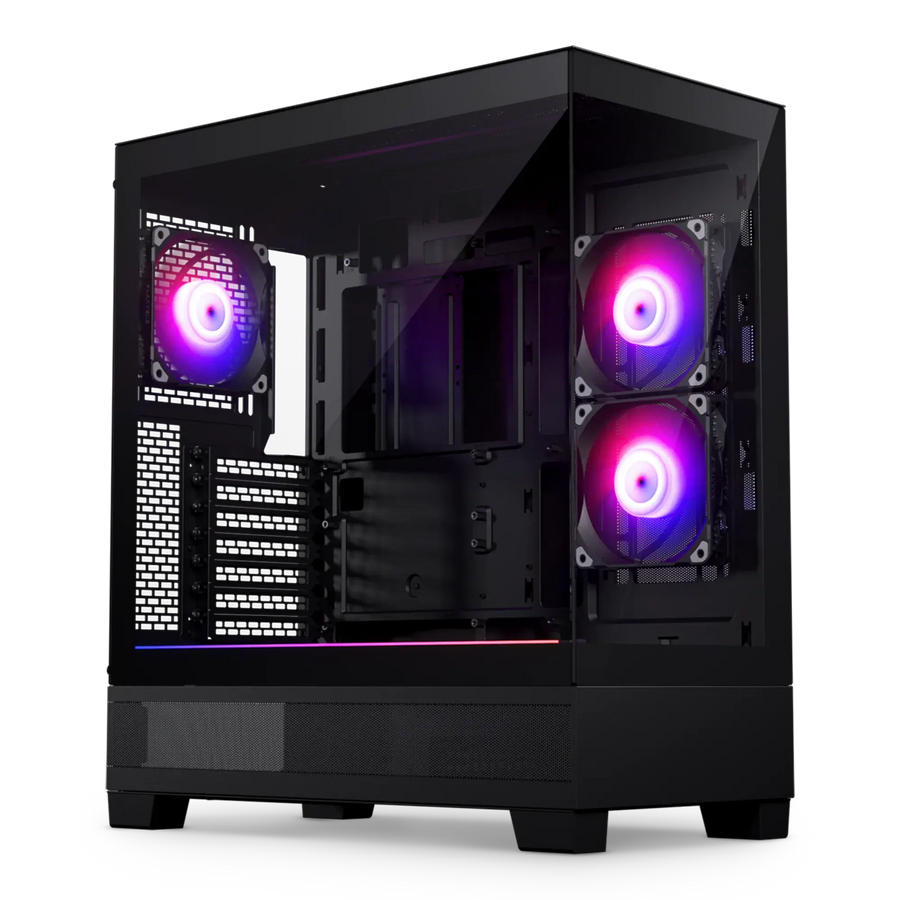

Phanteks XT View RGB Gaming Computer Case (ATX) (Black) CLICK TO EXPAND
Phanteks XT View RGB Gaming Computer Case (ATX) (Black)
TieredUp Tech, Inc.

Phanteks XT View RGB Gaming Computer Case (ATX) (Black)

Computer Cases● In Stock
$95.99
Qty
Flexible Payment Options
4 interest-free payments of $23.99 — Learn more
As low as $7.99/mo — Learn more
Lease-to-own from $1.84/wk — no credit needed. Apply at checkout
Finance from $3.99/mo — instant decisions. Learn more
🛡️30-Day Warranty
🚚Free Ship $1,200+
🔧Expert Support
General
ModelPhanteks XT View
Part NumberPH-XT523V1_DBK01
EAN / UPC886523303176
ColorBlack
Case TypeMid-Tower
MaterialsSteel chassis, Tempered glass, ABS plastic
Dimensions
Dimensions (D × W × H)440 × 230 × 500 mm / 17.32 × 9.05 × 19.68 in
Volume~51 L
Motherboard Compatibility
Supported Form FactorsE-ATX (up to 280mm wide), ATX, Micro-ATX, Mini-ITX
Rear-Connector MB SupportMSI Project Zero, ASUS BTF, Gigabyte Project Stealth
Expansion Slots & GPU
PCIe Expansion Slots7
Vertical GPU Slots3-slot (riser cable sold separately)
Max GPU Length415 mm / 16.33 in
Max GPU Width184 mm / 7.24 in
Clearances
Max CPU Cooler Height184 mm / 7.24 in
Max PSU Length270 mm / 10.62 in
Fan Support
Total Fan PositionsUp to 9× 120mm or 3× 140mm
Top Fan Support3× 120mm or 2× 140mm
Rear Fan Support1× 120mm or 1× 140mm
Right Side Fan Support2× 120mm
Midplate Fan Support3× 120mm (direct GPU cooling)
Included Fans3× M25-120mm D-RGB (pre-installed)
Liquid Cooling / Radiator Support
Top RadiatorUp to 360mm — space: 415 × 138 × 60 mm
Side RadiatorUp to 240mm (only with vertical GPU) — space: 305 × 120 × 62 mm
Rear RadiatorUp to 120mm — space: 140 × 170 mm
Storage
3.5″ HDD Bays2× (located in bottom chamber drive cage)
2.5″ SSD Bays (dedicated)5× total — 3× behind MB tray (removable bracket) + 2× internal (0× if 2× HDD installed)
Front I/O
USB-C1× USB-C 3.2 Gen2
USB-A1× USB 3.0
Audio1× Microphone / Headphone combo jack
ButtonsPower, Reset, D-RGB Mode, D-RGB Color
Lighting
Lighting TypeDigital RGB (D-RGB / Addressable)
Included LED1× Side D-RGB LED strip (along PSU cover)
D-RGB Controller1× included (plug-and-play, no software required)
Software CompatibilityASUS AURA Addressable, MSI Mystic Light Rainbow (optional)
D-RGB Controller CapacityUp to 7 D-RGB products (standalone); up to 9 via motherboard; max 4 per output port
Panels & Design
Front PanelTempered glass (near-seamless, no support pillar)
Side PanelTempered glass (near-seamless, no support pillar)
VentilationMesh all-around for high-performance airflow
Box Contents
Included ItemsXT View chassis, 1× Storage bracket, 3× M25-120 D-RGB fans, 1× D-RGB controller, 1× Triple SSD bracket, 1× Side D-RGB LED strip
Accessories30× Zip ties, 30× MB/SSD screws, 4× Thumb screws, 8× HDD screws, 4× PSU screws, 12× 30mm fan screws (UNC6-32), 1× MB standoff, 1× Standoff removal tool
The Phanteks XT View RGB Gaming Computer Case (ATX) (Black) is a Common-tier custom gaming PC built and tested by TieredUp Tech in Orange, TX. This machine delivers 100+ FPS in esports titles like Fortnite, Valorant, and Apex Legends at 1080p ultra settings — making it the perfect entry point into PC gaming. This build is optimized for Fortnite, Valorant, Apex Legends, Minecraft, League of Legends, and CS2. Whether you are jumping into your first PC gaming experience or upgrading from an older system, the Phanteks XT View RGB Gaming Computer Case (ATX) (Black) delivers exceptional performance straight out of the box. Every Common-tier BitCrate gaming PC is hand-assembled, stress-tested, and quality checked by our technicians before shipping. We stand behind every build with a 1-year warranty on parts and labor and ongoing technical support from our team in Orange, TX. Priced at $95.99 and in stock now, the Phanteks XT View RGB Gaming Computer Case (ATX) (Black) represents outstanding value for its performance tier. Order today and experience the TieredUp Tech difference — premium gaming performance at every price point. Specifications at a glance: • Build Tier: Common • Built & tested in Orange, TX • 1-year warranty on parts and labor • Free shipping on orders over $1,200
