TieredUp Tech, Inc.

Asiahorse Matrix-Black 56 Addressable RGB LEDs 360MM

Computer Fans● In Stock
$51.43
Qty
Flexible Payment Options
4 interest-free payments of $12.85 — Learn more
As low as $4.28/mo — Learn more
Lease-to-own from $0.98/wk — no credit needed. Apply at checkout
Finance from $2.14/mo — instant decisions. Learn more
🛡️30-Day Warranty
🚚Free Ship $1,200+
🔧Expert Support

Technical Specifications

General
BrandAsiaHorse
ModelMatrix-Black 56 Addressable RGB LEDs 360MM
Model Number / MPNMATRIX / FS-9002 3PACK
ASINB08LQ9FKKJ
ColorBlack
TypeCase Fan / Liquid Cooling Fan
MaterialPlastic (frame), Copper (components)
Physical Dimensions

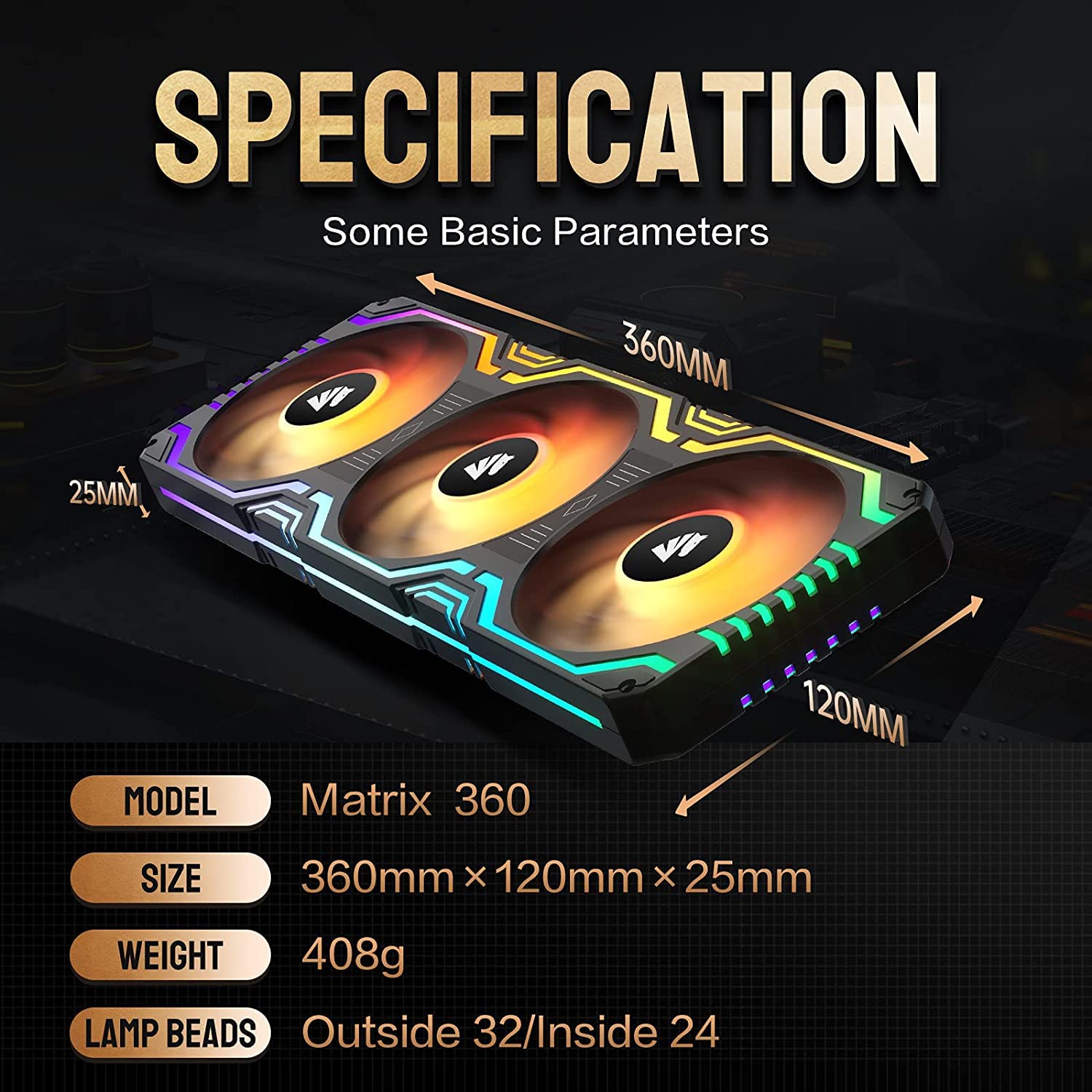

Frame Size (Total)360 mm (integrated 3-fan frame)
Product Dimensions (L × W × H)14.17 in × 4.72 in × 0.98 in (360 mm × 120 mm × 25 mm)
Individual Fan Diameter120 mm
Fan Thickness25 mm
Number of Fans3 × 120 mm (all-in-one integrated frame)
Frame DesignSquare / All-in-One Integrated Frame with Sound Absorbing Rubber Pad
Fan Performance
Fan Speed Range800 – 1800 RPM (PWM Controlled)
Maximum Fan Speed1800 RPM
Maximum Airflow66.5 CFM (per fan: 48.37 CFM)
Static Pressure1.22 mmH₂O

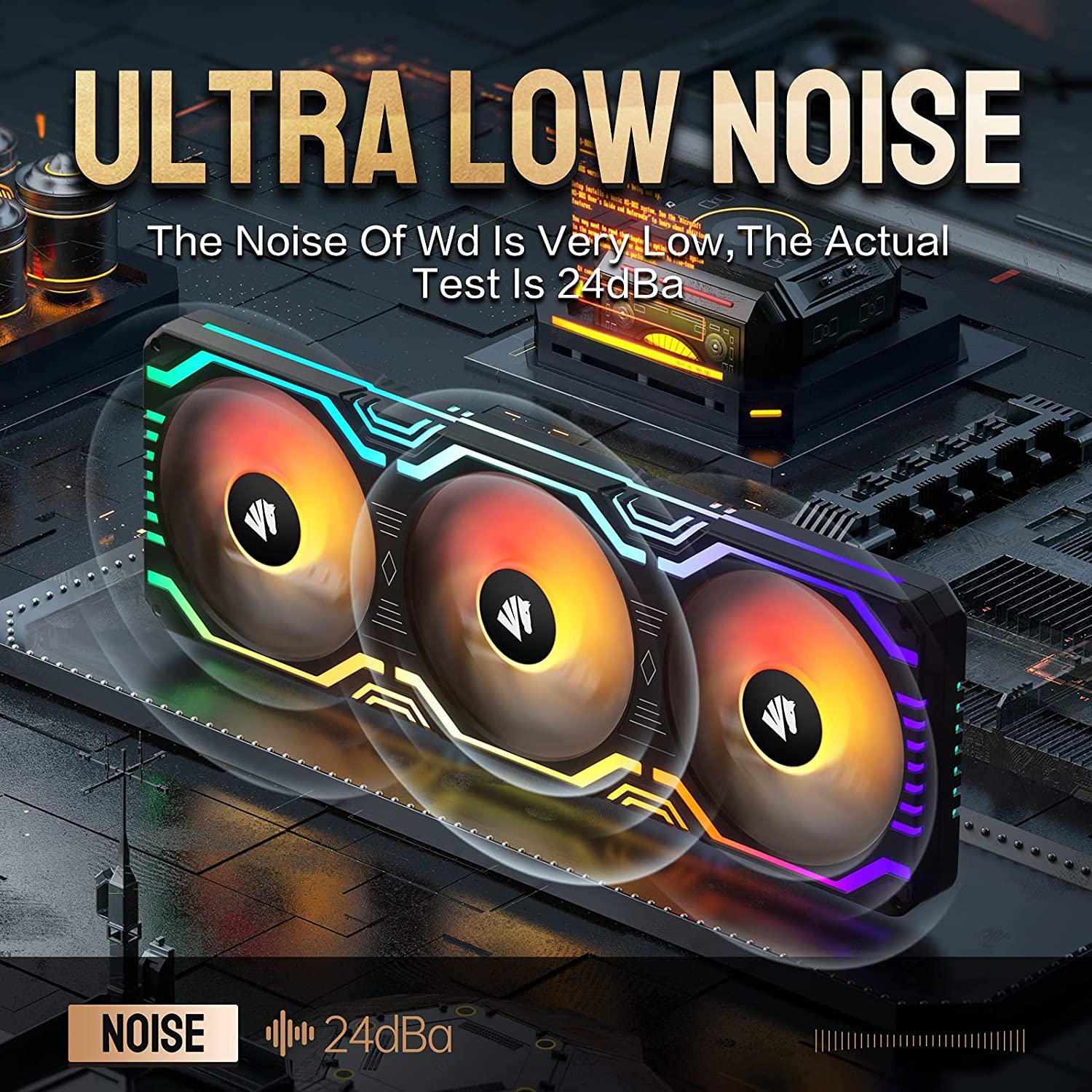

Noise Level16 – 34.3 dB(A)
Noise Level (Optimized / Single Fan Spec)26.72 dB(A)
Bearing TypeFluid Dynamic Bearing (FDB)
Blade DesignGuide groove arc-surface blade for improved air intake efficiency and reduced noise
Anti-Vibration4× anti-vibration gaskets; sound-absorbing rubber pad frame
Electrical
Voltage (Fan Motor)12 V
Voltage (ARGB)5 V
Wattage3.6 W

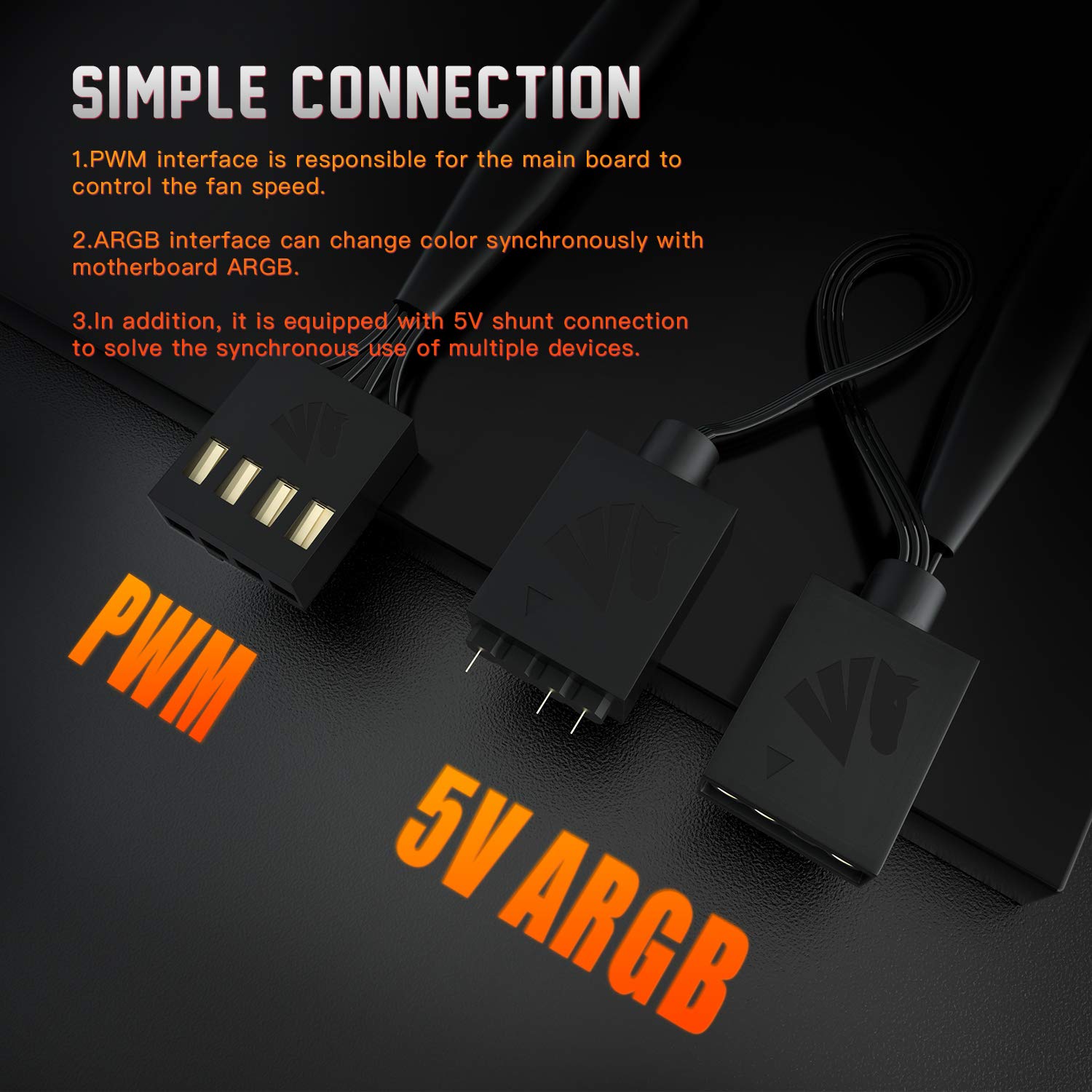

Power Connector (Fan)4-Pin PWM
RGB Connector5V 3-Pin ARGB (Di, -, G)
RGB Lighting
LED TypeAddressable RGB (ARGB)
Total LED Count56 independently-controlled addressable RGB LEDs
LED Voltage5 V
Lighting EffectMatrix structure cyclic bearing light effect with lighting fade from all visible angles
LED Light ColorMulticolor (Full RGB spectrum)
RGB ControlMotherboard sync (MB ARGB header) or included Analog Controller
Included ControllerFan Speed & RGB Lighting Controller + Small PWM Fan Controller
Compatibility

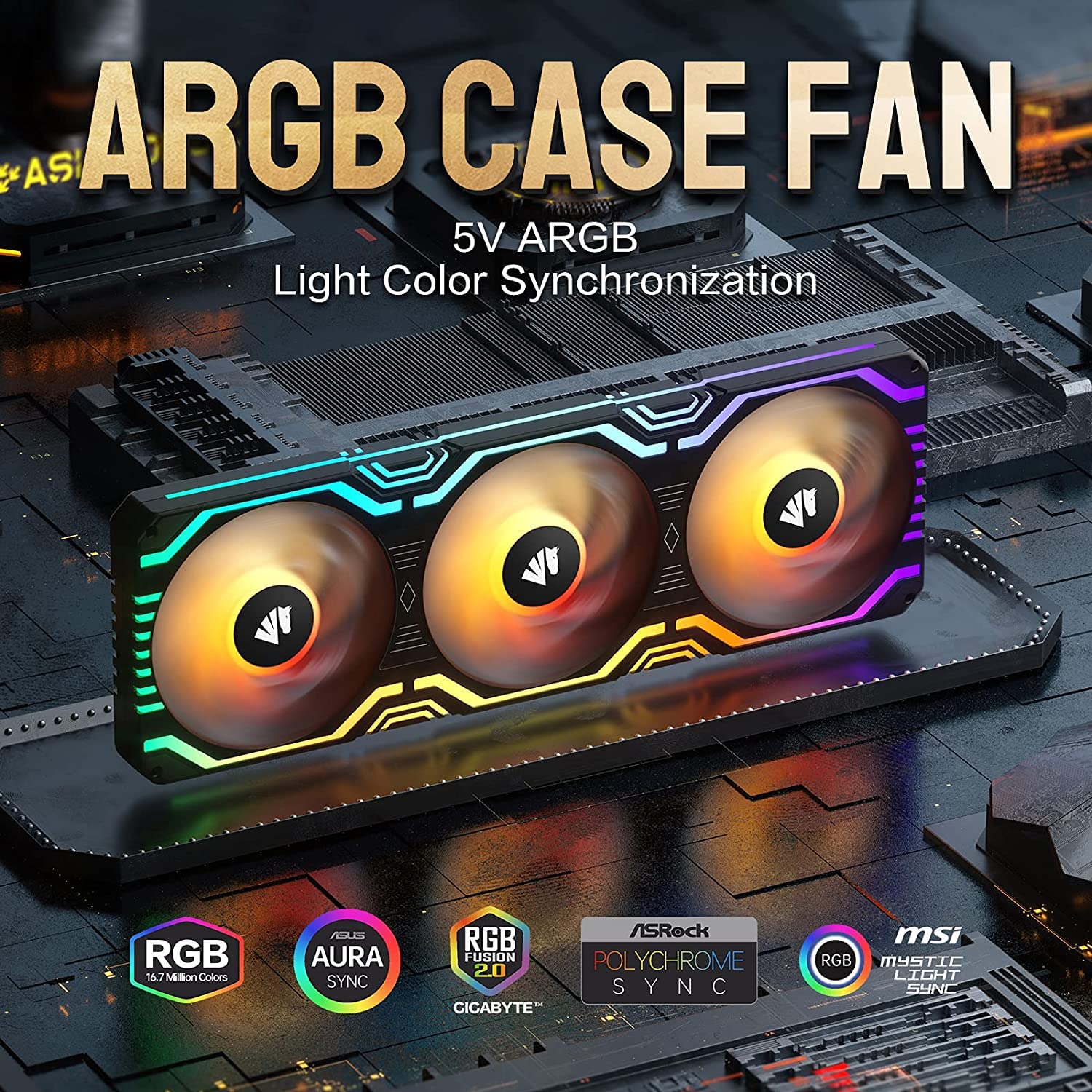

RGB Ecosystem SupportASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, ASRock Polychrome Sync
MB Header5V 3-Pin ARGB Header (5V, Di, –, G)
Use CasesPC Case Cooling, 360mm CPU Liquid Cooler Radiator
Compatible DevicesDesktop PC
Design & Build Features
Motor TechnologyMultiple new design motors in series; built-in PWM highly integrated chip to eliminate motor electromagnetic noise

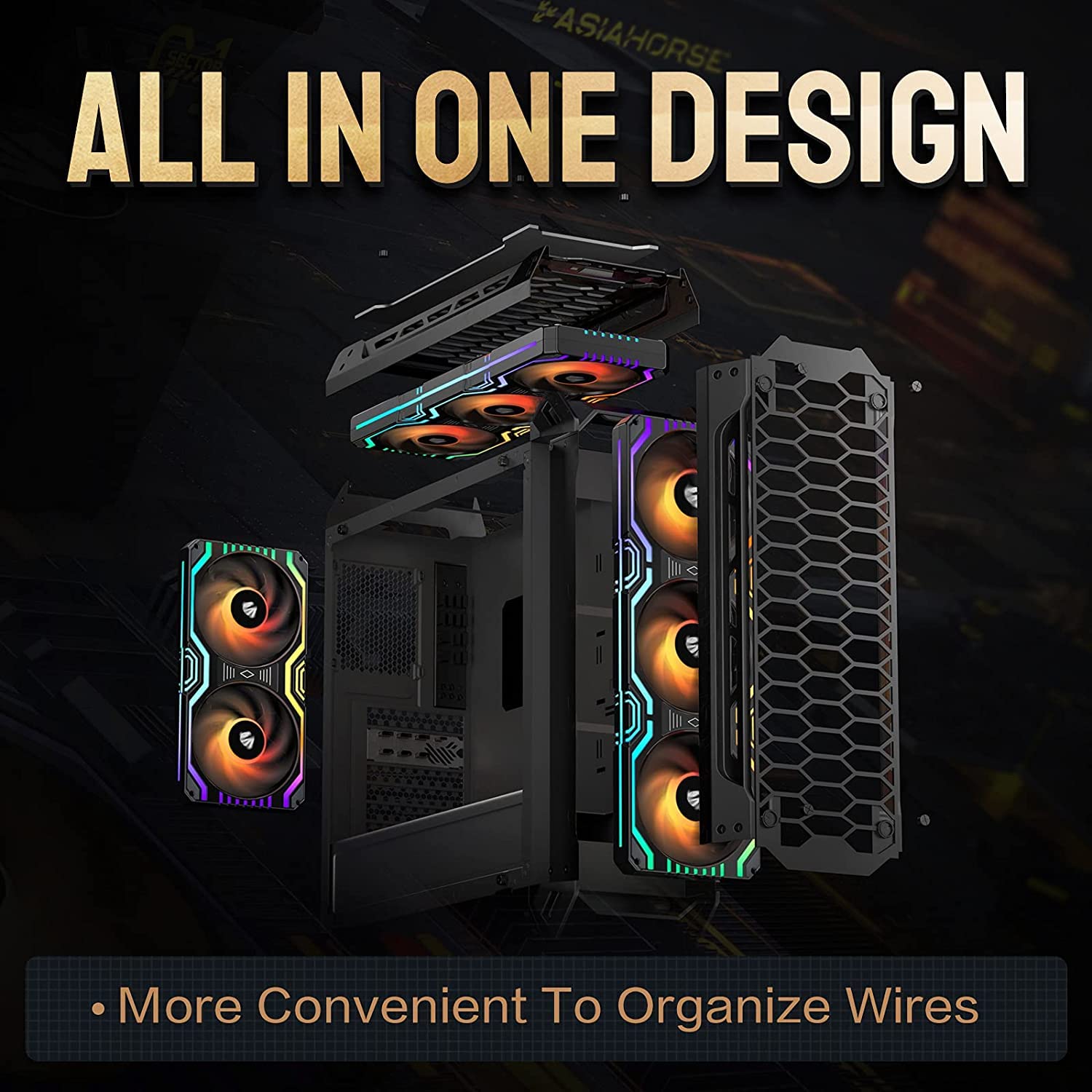

Installation StyleAll-in-one single integrated frame; requires only 1× PWM 4-pin and 1× 5V 3-pin ARGB cable
Continuous Lighting EffectYes — seamless lighting across all three fans via single chain
Lifespan EnhancementFluid dynamic bearing reduces internal friction and wear for extended service life

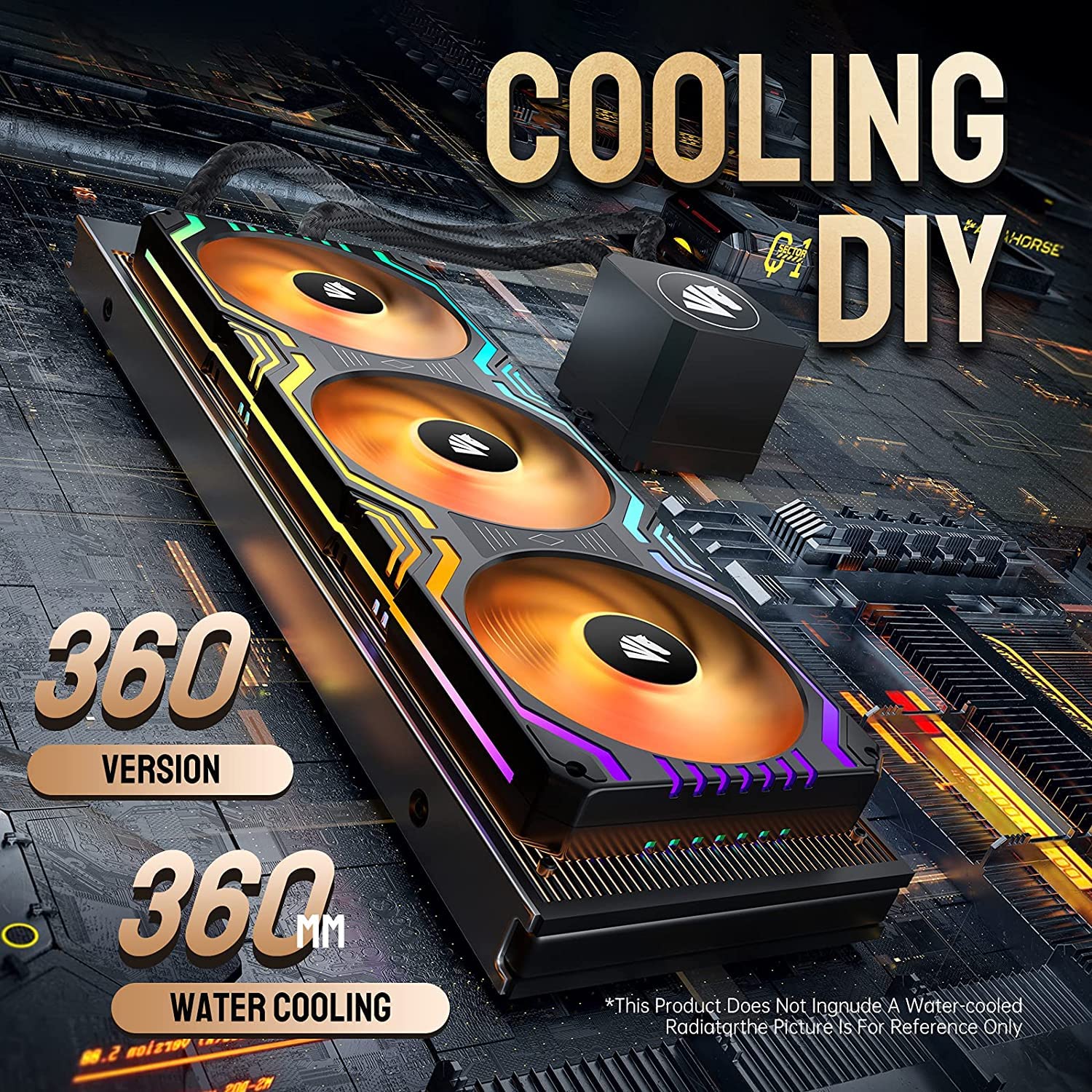

Cooling MethodAir (compatible with liquid cooling radiator mounting)
Package Contents

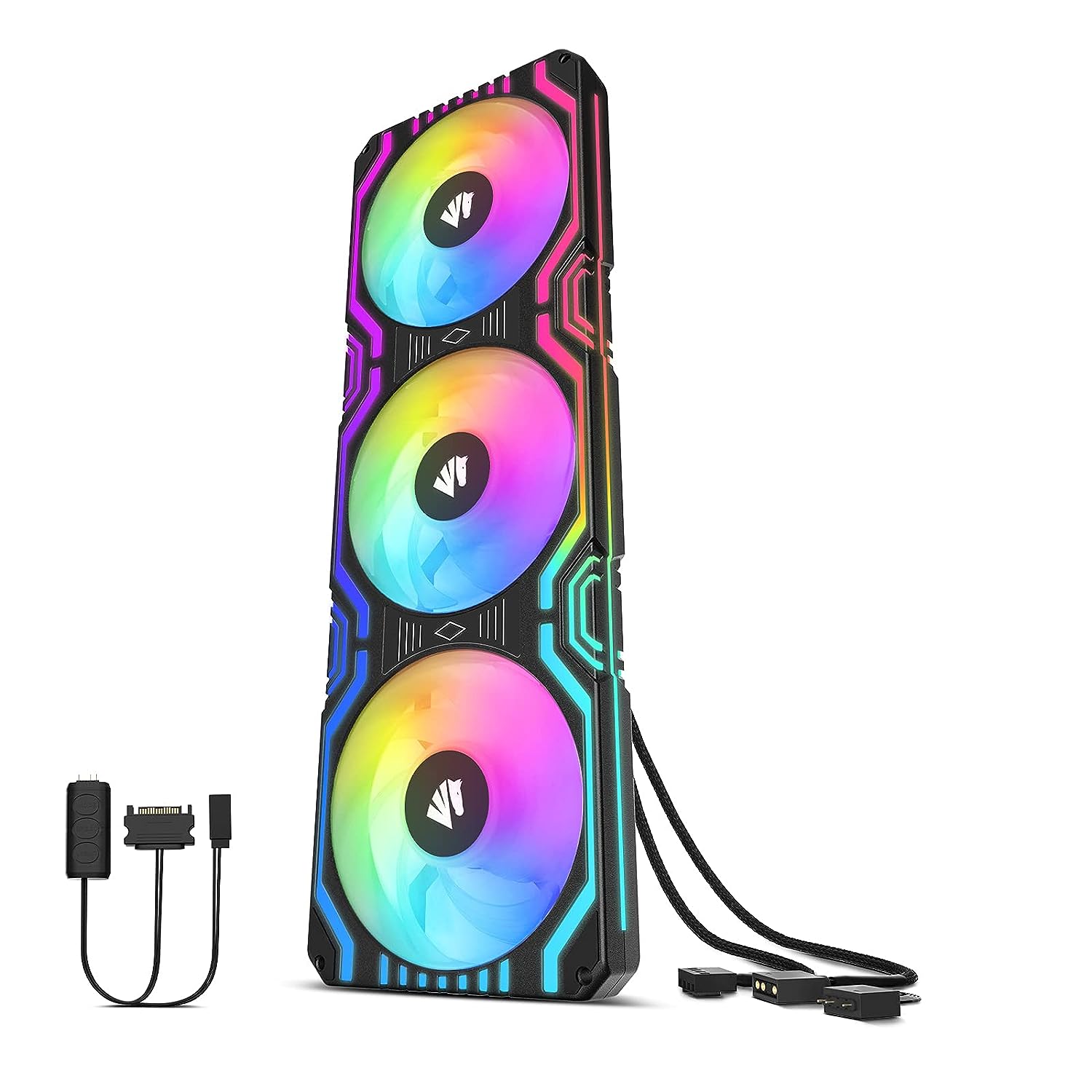

Included Items1× AsiaHorse Matrix-Black 360mm Integrated Fan Unit (3× 120mm fans), 1× Fan Speed & RGB Lighting Controller, 1× Small PWM Fan Controller
Controller TypeMB Sync / Analog Controller (dual-mode)
