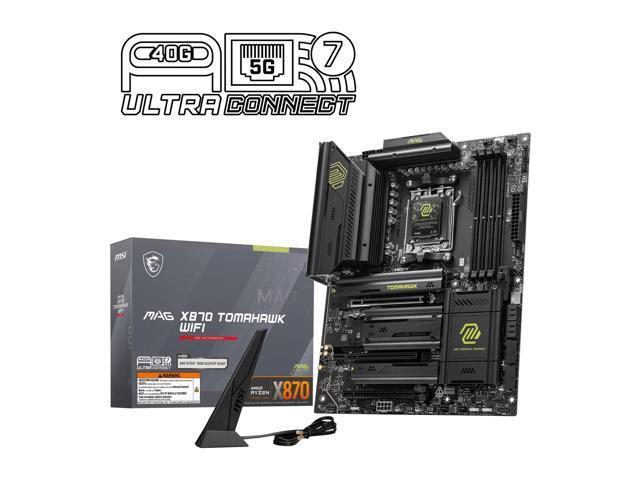

MSI - MAG X870 TOMAHAWK WIFI (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard - Black CLICK TO EXPAND
MSI - MAG X870 TOMAHAWK WIFI (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard - Black
MSI - MAG X870 TOMAHAWK WIFI (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard - Black
MSI - MAG X870 TOMAHAWK WIFI (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard - Black
MSI - MAG X870 TOMAHAWK WIFI (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard - Black
MSI - MAG X870 TOMAHAWK WIFI (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard - Black
TieredUp Tech, Inc.

MSI - MAG X870 TOMAHAWK WIFI (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard - Black

Motherboard● In Stock
$267.59
Qty
Flexible Payment Options
4 interest-free payments of $66.89 — Learn more
As low as $22.29/mo — Learn more
Lease-to-own from $5.14/wk — no credit needed. Apply at checkout
Finance from $11.14/mo — instant decisions. Learn more
🛡️30-Day Warranty
🚚Free Ship $1,200+
🔧Expert Support
GENERAL
BrandMSI
ModelMAG X870 TOMAHAWK WIFI
ChipsetAMD X870
Form FactorATX
PROCESSOR SUPPORT
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
MEMORY
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
EXPANSION SLOTS
PCI Express 5.0 x16PCI_E1 slot (From CPU) Supports up to PCIe 5.0 x16
PCI Express x4PCI_E3 slot (From Chipset X870) Supports up to PCIe 4.0 x4
PCI Express x1PCI_E2 slot (From Chipset X870) Supports up to PCIe 3.0 x1
STORAGE
Serial ATA (SATA)4 x SATA 6Gb/s
M.2M2_1 slot (From CPU) - Supports up to PCIe 5.0 x4 - Supports 2280/110 storage devices M2_2 slot (From CPU) - Supports up to PCIe 5.0 x4 - Supports 2260/80 storage devices M2_3 slot (From Chipset) - Supports up to PCIe 4.0 x2 - Supports 2260/80 storage devices M2_4 slot (From Chipset) - Supports up to PCIe 4.0 x4 - Supports 2260/80 storage devices
SATA RAIDSupports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
AUDIO
Audio ChipsetRealtek ALC4080
Audio Channels7.1 Channels
NETWORK
LAN ChipsetRealtek 8126-VB
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
REAR PANEL I/O
Back I/O Ports1 x Flash BIOS button, 1 x Clear CMOS button, 1 x HDMI port, 1 x USB 10Gbps Type-A (From CPU), 1 x USB 10Gbps Type-A (From X870 chipset), 1 x USB 10Gbps Type-C (From X870 chipset), 2 x USB 40Gbps Type-C (From ASM4242), 3 x USB 5Gbps Type-A (From GL3523), 4 x USB 2.0 Type-A ports (From GL850), 1 x 5Gbps LAN (RJ45) port, 2 x Wi-Fi Antenna connectors, 2 x audio jacks, 1 x Optical S/PDIF Out connector
INTERNAL CONNECTORS
Onboard USB1 x USB 20Gbps Type-C front panel port with Power Delivery Supports up to 27W fast charging, 2 x USB 5Gbps connectors Supports additional 4 USB 5Gbps ports, 2 x USB 2.0 connectors Supports additional 4 USB 2.0 ports
Fan Connectors1x 4-pin CPU fan connector, 6x 4-pin system fan connectors, 1x 4-pin water-pump/system fan connector, 1x EZ Conn-Header V2 (JAF_2 with 11-Pin)
System Connectors1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x TPM module connector
Jumpers1x Clear CMOS jumper, 1x OC safe boot BIOS jumper
PHYSICAL SPECIFICATIONS
LED Lighting1 x 4-pin RGB LED connector, 3 x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors, 4 x EZ Debug LED, 1 x 2-Digit Debug Code LED, 1 x EZ Conn-Header V2 (JAF_2 with 11-Pin)
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Power Connector (ATX_PWR), 2 x 8-pin Power Connector (CPU_PWR), 1 x 8-pin Power Connector (PCIE_PWR)
BIOS & SOFTWARE
BIOS Feature1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.7 Multi-language
SoftwareDrivers, MSI Center, Acrobat Adobe Creative Cloud, AIDA64 Extreme-MSI Edition, CPU-Z MSI GAMING, MSI App Player (BlueStacks), Norton 360

The MSI MAG X870 TOMAHAWK WIFI is an ATX motherboard built for Socket AM5 processors, featuring the AMD X870 chipset and support for DDR5 memory up to 8400 speed across four slots with a maximum capacity of 256 GB. It includes built-in Wi-Fi 7 and provides four M.2 slots with PCIe 5.0 support on the primary slot for high-speed storage.

Connectivity is extensive with multiple USB options including two USB 40Gbps Type-C ports, USB 10Gbps Type-A and Type-C ports, and additional USB 5Gbps and USB 2.0 ports for peripherals and devices. The board offers two PCIe x16 slots, one PCIe x1 slot, four SATA ports, and a single HDMI display output, covering the essentials for a modern desktop build in a black ATX form factor.
