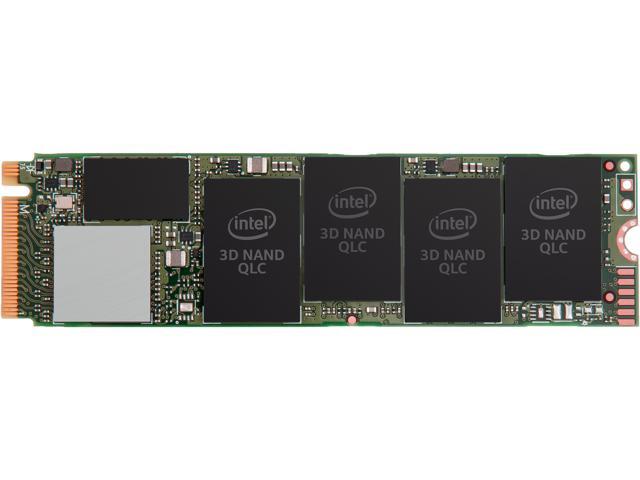

Intel 660p Series M.2 2280 1TB PCIe Gen3 NVMe 3.0 CLICK TO EXPAND
Intel 660p Series M.2 2280 1TB PCIe Gen3 NVMe 3.0
Intel 660p Series M.2 2280 1TB PCIe Gen3 NVMe 3.0
Intel 660p Series M.2 2280 1TB PCIe Gen3 NVMe 3.0
TieredUp Tech, Inc.

Intel 660p Series M.2 2280 1TB PCIe Gen3 NVMe 3.0

Storage Devices● Out of Stock
$177.60
Qty
Flexible Payment Options
4 interest-free payments of $44.40 β€” Learn more
As low as $14.80/mo β€” Learn more
Lease-to-own from $3.41/wk β€” no credit needed. Apply at checkout
Finance from $7.40/mo β€” instant decisions. Learn more
πŸ›‘οΈ30-Day Warranty
🚚Free Ship $1,200+
πŸ”§Expert Support
GENERAL
BrandIntel
Series660p Series
ModelSSDPEKNW010T8X1
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
STORAGE DETAILS
Form FactorM.2 2280
Capacity1TB
Memory Components3D2, QLC
InterfacePCIe NVMe 3.0 x4
CacheNo DRAM (HMB)
PERFORMANCE
Max Sequential ReadUp to 1800 MBps
Max Sequential WriteUp to 1800 MBps
4KB Random ReadUp to 150,000 IOPS
4KB Random WriteUp to 220,000 IOPS
Terabytes Written (TBW)200TB
MTBF1,600,000 hours
ENVIRONMENTAL
Power Consumption (Idle)40 mW
Power Consumption (Active)100 mW
Operating Temperature0Β°C ~ +70Β°C
Storage Temperature-55Β°C ~ +95Β°C
Operating Humidity5-95%
Max Shock ResistanceOperating: 1000G / 0.5 ms Non-Operating: 1500G / 0.5 ms
Max Vibration ResistanceOperating: 2.17 GRMS (5-700 Hz) Non-Operating: 3.13 GRMS (5-800 Hz)
DIMENSIONS & WEIGHT
Height2.38 mm
Width22.00 mm
Depth80.00 mm
Weight< 10.00 g

The Intel 660p Series is a 1TB NVMe solid-state drive using the M.2 2280 form factor and PCIe Gen3 interface. With read and write speeds up to 1800 MBps, it delivers faster boot times and quicker file access than traditional hard drives.

This drive fits directly into compatible M.2 slots on modern motherboards, making it a straightforward storage upgrade for desktops and laptops that support NVMe. The 1TB capacity provides room for your operating system, applications, and frequently used files without the bulk of a larger drive enclosure.
