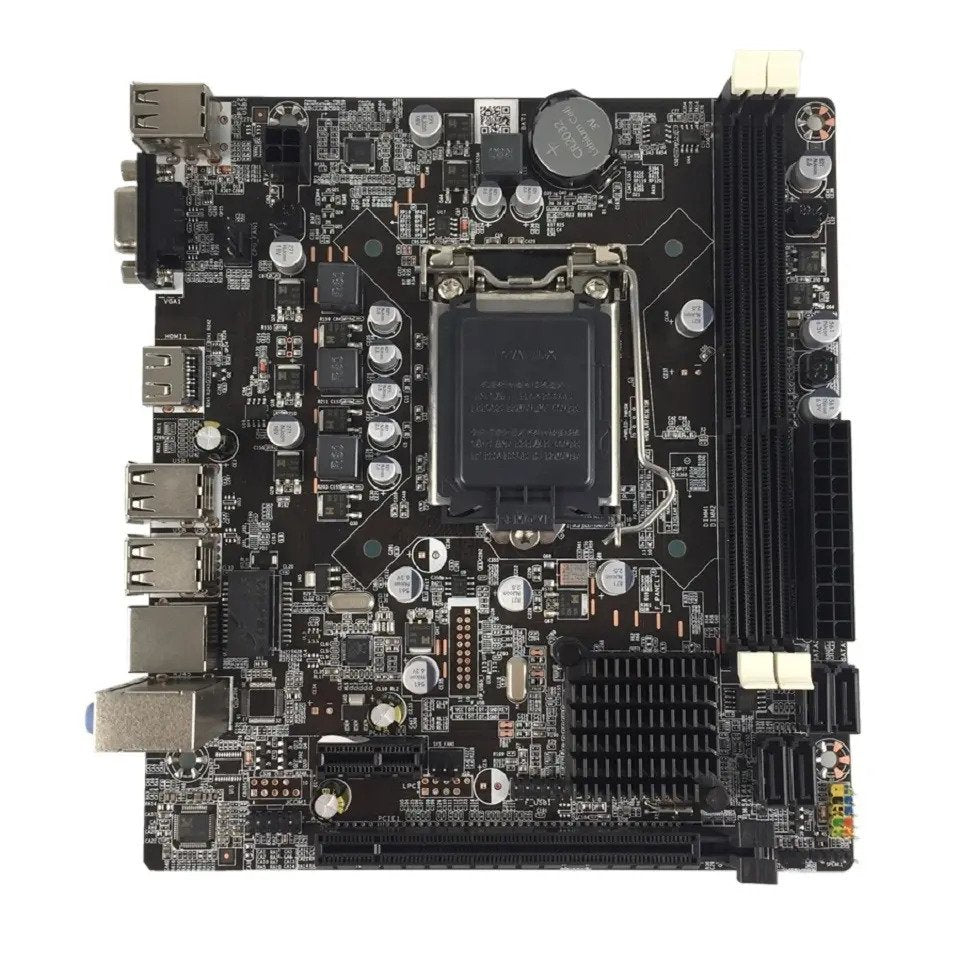

H61 LGA 1155 2nd 3rd Generation i3 i5 i7 Pentium Celeron DDR3 HDMI VGA Motherboard CLICK TO EXPAND
H61 LGA 1155 2nd 3rd Generation i3 i5 i7 Pentium Celeron
H61 LGA 1155 2nd 3rd Generation i3 i5 i7 Pentium Celeron — side view
GTech

H61 LGA 1155 2nd 3rd Generation i3 i5 i7 Pentium Celeron DDR3 HDMI VGA Motherboard

Motherboard● In Stock
$24.67
Qty
Flexible Payment Options
4 interest-free payments of $6.16 — Learn more
As low as $2.05/mo — Learn more
Lease-to-own from $0.47/wk — no credit needed. Apply at checkout
Finance from $1.02/mo — instant decisions. Learn more
🛡️30-Day Warranty
🚚Free Ship $1,200+
🔧Expert Support
Overview
ChipsetIntel H61
Form FactorMicro-ATX (M-ATX)
Dimensions215 × 168 mm (approx. 190 × 170 mm on some variants)
PCB Layers4-Layer PCB
Capacitor DesignAll Solid-State Capacitors
CMOS BatteryCR2032 (240 mAh)
Processor
CPU SocketLGA 1155 (Socket H2)
Supported GenerationsIntel 2nd Gen (Sandy Bridge) & 3rd Gen (Ivy Bridge)
Compatible CPU FamiliesCore i7, Core i5, Core i3, Xeon E3 V2, Pentium, Celeron
Example Compatible CPUsi7-2600K, i5-2500S, i5-2400S, i3-2130, Pentium G530/G630/G860
Supported TechnologiesIntel Turbo Boost 2.0, Hyper-Threading
Front Side Bus1066 / 1333 / 1600 MHz
Memory
Memory TypeDDR3 SDRAM (Non-ECC, Unbuffered)
Memory Slots2 × DDR3 DIMM
Maximum Capacity16 GB (2 × 8 GB)
Supported Speeds1066 / 1280 / 1333 / 1600 / 1866 MHz
Channel ArchitectureDual-Channel
XMP SupportIntel XMP 1.3 / 1.2 (with Ivy Bridge CPU)
Storage
SATA Ports3–4 × SATA 2.0 (6 Gb/s)
M.2 Slot1 × M.2 (NVMe / NGFF Dual-Mode with Jumper)
M.2 NVMe LanePCIe 2.0 x4 (NVMe mode)
M.2 NGFF LaneSATA lane (NGFF/SATA mode, default)
Expansion Slots
PCIe x16 Slot1 × PCI Express 3.0 x16 (Graphics)
PCIe x1 Slot1 × PCI Express x1
M.2 Slot1 × M.2 NVMe/NGFF
Integrated Graphics & Display
Integrated GPUIntel Processor Integrated Graphics (CPU-dependent)
Display Outputs1 × VGA, 1 × HDMI
Max Display Resolution1080p / 2K HD
Max Shared Video MemoryUp to 1024 MB (shared system RAM)
Audio
Audio CodecALC662 (HD Audio)
Audio Channels5.1 Channel Surround Sound
Audio Jacks (Rear I/O)3 × 3.5 mm (Line In / Line Out / Mic In)
Front Panel Audio Header1 × F_Audio Connector
Networking
LAN ControllerRealtek RTL8111H
LAN Speed100 Mbps Ethernet
LAN Port1 × RJ-45

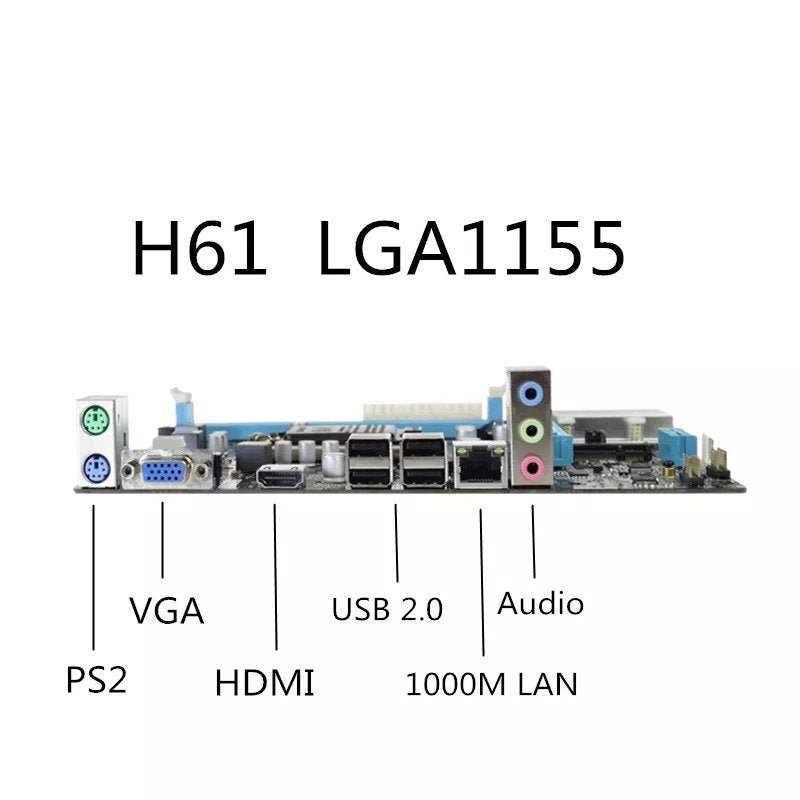

USB & Rear I/O Ports
USB 2.0 Ports (Rear I/O)6 × USB 2.0
PS/2 Port1 × PS/2 (Mouse / Keyboard combo)
Video Outputs1 × VGA, 1 × HDMI
Network Port1 × RJ-45 Gigabit LAN
Audio Jacks3 × 3.5 mm Audio Jacks
Internal Headers & Connectors
ATX Power Connector1 × 24-Pin ATX
CPU Power Connector1 × 4-Pin / 8-Pin ATX 12V
USB 2.0 Headers (Internal)2 × 9-Pin USB 2.0 Headers (supports 4 additional USB 2.0)
Front Panel Audio Header1 × F_Audio
Front Panel Header1 × F_Panel Connector
Speaker Header1 × F_Speaker Connector
Fan Headers2 × Fan Connectors
LPC Debug Connector1 × LPC Debug Header
COM Port Header1 × COM (Serial) Header
Power Delivery
Power Phase Design3-Phase (some variants: 3+1 Phase) Power Supply
Recommended PSU500W or greater
Package Contents
Included Items1 × Motherboard, 1 × SATA Cable, 1 × I/O Shield / Metal Backplate
CMOS BatteryCR2032 pre-installed (may be removed for shipping)

Includes:
Motherboard
I/O Plate
SATA Cable x1

Processor (CPU)
Support for 2/3rd Generation LGA1155 i7 / i5 / i3 / Pentium / Celeron
Chipset
H61-BC LGA 1155 Mainboard
Memory
2 x 1.5V DDR3 DIMM Sockets
Supports up to 16 GB of System Memory,
Support for DDR3 1066/1333/1600 MHz Memory Modules.
Internal I/O Connectors
- 1 * 24-pin ATX Power Connector
- 1 * 4-pin ATX 12V Power Connector
- 1 * USB Connector Support Additional 2 USB Ports
- 1 * Front Panel Audio Connector
- 1 * System Panel Connector
- 6 * USB 2.0
- 1 * HDMI
- 1 * VGA
- 1 * PCI Express x16 Slot
- 1 * PCI Express x1 Slot

LAN
Supports Realtek 8105E/8111E 100Mbps
Audio
Realtek 662 3xAudio Jacks for 6 channel High definition audio
Form Factor
- Micro ATX (215*170 mm)
