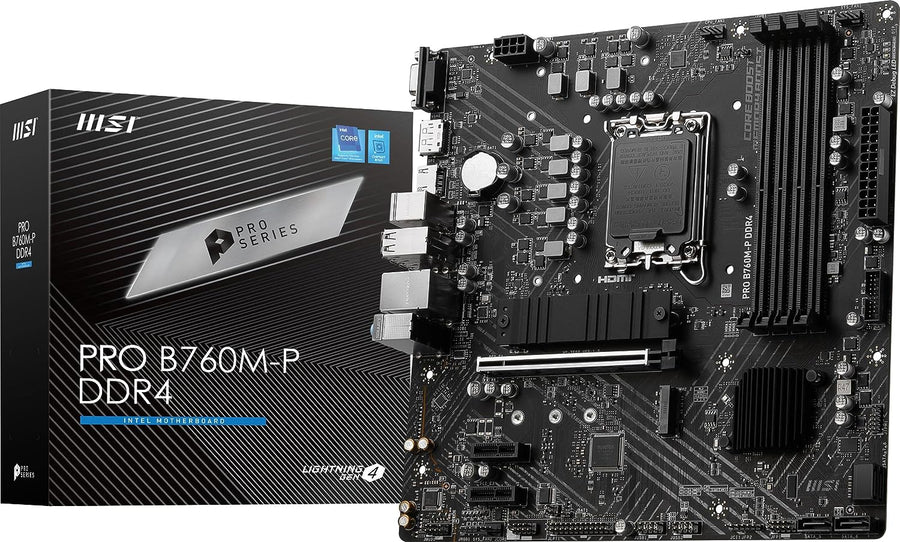

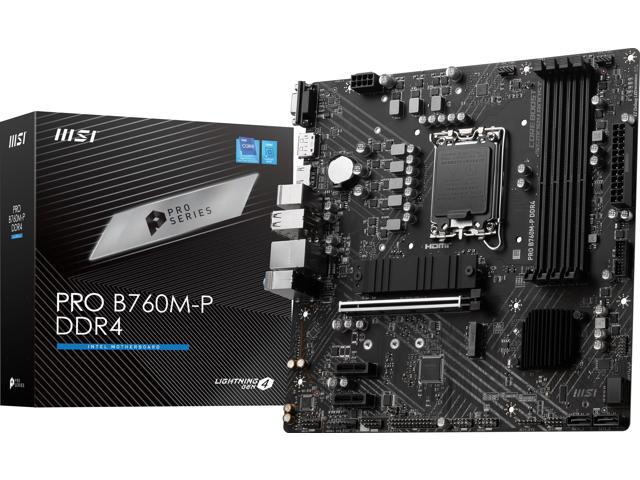

(Intel) MSI PRO B760M-P Pro Series LGA1700 DDR4 Motherboard CLICK TO EXPAND
(Intel) MSI PRO B760M-P Pro Series LGA1700 DDR4 Motherboard
(Intel) MSI PRO B760M-P Pro Series LGA1700 DDR4 Motherboard
(Intel) MSI PRO B760M-P Pro Series LGA1700 DDR4 Motherboard
Geek Tech Supply

(Intel) MSI PRO B760M-P Pro Series LGA1700 DDR4 Motherboard

Motherboard● Out of Stock
$120.00
Qty
Flexible Payment Options
4 interest-free payments of $30.00 — Learn more
As low as $10.00/mo — Learn more
Lease-to-own from $2.30/wk — no credit needed. Apply at checkout
Finance from $5.00/mo — instant decisions. Learn more
🛡️30-Day Warranty
🚚Free Ship $1,200+
🔧Expert Support
Overview
ModelMSI PRO B760M-P DDR4
Part Number7E02-001R / B760MPD4
Form FactorMicro-ATX (mATX)
PCB Layers6-Layer, 2 oz Thickened Copper
ColorBlack
CPU & Chipset
CPU SocketLGA 1700
ChipsetIntel B760
Supported CPUsIntel Core 12th, 13th & 14th Gen; Pentium Gold; Celeron
Max CPUs Supported1
Memory
Memory TypeDDR4 (DIMM / UDIMM)
Memory Slots4 x DIMM
Memory ChannelsDual Channel
Max Memory128 GB
Native SpeedsDDR4-2133 / 2400 / 2666 / 2933 / 3200
OC Speeds (XMP)DDR4-3333 / 3400 / 3466 / 3600 / 3733 / 3800 / 4000 / 4200 / 4266 / 4400 / 4600 / 4800 (up to 4800+ MHz OC)
XMP SupportYes — Intel XMP
Memory TechnologyMemory Boost — Fully isolated DDR circuit for pure data signals
Expansion Slots
PCIe x16 Slots1 x PCIe 4.0 x16 (Steel Armor)
PCIe x1 Slots2 x PCIe 4.0 x1
PCIe GenerationPCIe 4.0 — Up to 64 GB/s bandwidth
Storage
M.2 Slots2 x M.2 (PCIe Gen 4 x4, NVMe) — Supports 2242 / 2260 / 2280 M-Key
M.2 Thermal SolutionM.2 Shield Frozr (on primary slot)
SATA Ports4 x SATA 6 Gb/s
RAID SupportIntel RST (SATA)
USB Connectivity
Rear USB 3.2 Gen 21 x USB 3.2 Gen 2 Type-C (10 Gbps)
Rear USB 3.2 Gen 12 x USB 3.2 Gen 1 Type-A (5 Gbps)
Rear USB 2.04 x USB 2.0 Type-A
Total Rear USB Ports6
Internal USB Headers1 x USB 3.2 Gen 1 header; 2 x USB 2.0 headers
USB ControllerIntel USB 3.2 Gen 2 (Turbo USB)
Video Outputs
HDMI1 x HDMI 1.4 — Up to 4K @ 30 Hz
DisplayPort1 x DisplayPort 1.4 — Up to 4K @ 60 Hz
VGA1 x VGA (D-Sub, legacy)
NoteRequires CPU with integrated graphics
Networking
LAN ControllerRealtek RTL8111H
LAN Speed1 x Gigabit Ethernet (1 Gb/s)
Wi-FiNone
BluetoothNone
Audio
Audio CodecRealtek HD Audio (Audio Boost)
Channels7.1-Channel High Definition Audio
Rear Audio Jacks3 x 3.5 mm Audio Jacks
Power Design
VRM PhasesCore Boost — Digital VRM Power Design
ATX Power Connector1 x 24-pin ATX
CPU Power Connectors1 x 8-pin + 1 x 4-pin CPU Power
Thermal & Cooling
VRM HeatsinkYes — with 7W/mK MOSFET Thermal Pads & Choke Thermal Pads
Chipset HeatsinkYes — Passive
M.2 ThermalM.2 Shield Frozr (primary M.2 slot)
CPU Fan Headers1 x CPU Fan (4-pin)
System Fan Headers2 x Chassis Fan (4-pin)
Total Fan Headers3 (1 CPU + 2 Chassis)
Fan ControlDC & PWM Auto-Detection; Frozr AI Cooling (CPU & GPU temp-based)
RGB & Lighting
ARGB HeadersNone (no 3-pin ARGB)
RGB Headers1 x 4-pin 12V RGB (Mystic Light Extension)
Lighting SoftwareMystic Light (via MSI Center)
BIOS & Software
BIOSClick BIOS 5 (UEFI, AMI)
Flash BIOS ButtonYes — Flash BIOS via CMOS Setup Utility
Debug LEDEZ Debug LED
Secure BootYes
Resizable BARYes
NVMe BIOS SupportYes — Direct NVMe PCIe management
Management SoftwareMSI Center (Fan Center, Hardware Monitor, System Diagnosis, True Color, Mystic Light, User Scenario)
Bundled SoftwareAIDA64 Extreme — MSI Edition (60-day free trial)
Protection & Features
PCIe Slot ProtectionSteel Armor — Extra solder points, EMI shielding
ESD ProtectionDouble ESD Protection (doubled grounding layer around mounting holes)
Screw-Hole ProtectionProtective paint around each screw hole; standoff keep-out zones
BIOS SecurityBIOS Security Function for file protection; Secure Boot support

The MSI PRO B760M-P is a Micro ATX motherboard built for Intel's LGA1700 socket processors, supporting up to 128 GB of DDR4 memory across four slots with speeds up to DDR4-3200. It includes two M.2 slots with Gen4 NVMe support for fast storage, plus four SATA ports for additional drives.

Expansion options include two PCIe x16 slots and two PCIe x1 slots, while connectivity covers USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2 Type-C, and four USB 2.0 ports. Display outputs provide HDMI, DisplayPort, and D-Sub for flexible monitor setups, making the PRO B760M-P a solid foundation for a DDR4-based Intel desktop build.
