CLICK TO EXPAND
| Overview | |
|---|---|

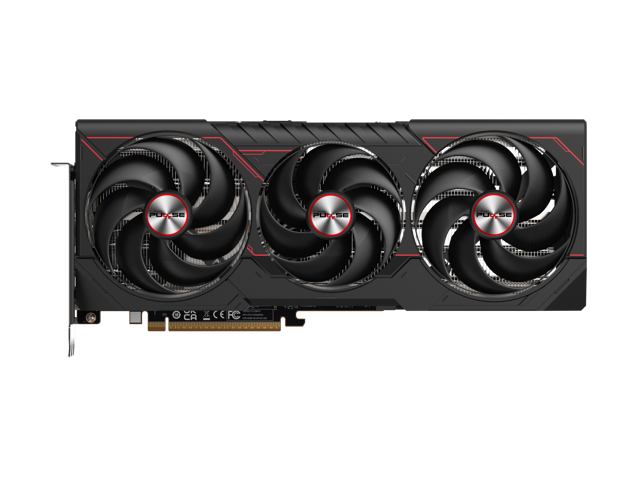

| Model | SAPPHIRE PULSE AMD Radeon™ RX 9070 XT |
| SKU / Part Number | 11348-03-20G |
| UPC | 840777091319 |
| GPU Architecture | AMD RDNA™ 4 |
| GPU Chip | Navi 48 XTX |
| Manufacturing Process | 4nm |
| Die Size | 357 mm² |
| Transistors | ~53.9 Billion |
| Color | Black |
| PCB Color | Black |
| LED Lighting | None |
| Form Factor | ATX Full Height |
| VR Ready | Yes |
| GPU Clock Speeds | |
| Boost Clock | Up to 2970 MHz |
| Game Clock | Up to 2400 MHz |
| Shader & Compute Units | |
| Stream Processors | 4096 |
| Ray Accelerators (Ray Tracing Cores) | 64 |
| AI / Tensor Cores | 128 |
| Memory | |
| Memory Size | 16 GB |
| Memory Type | GDDR6 |
| Memory Bus Width | 256-bit |
| Memory Clock Speed | 2518 MHz (20 Gbps Effective) |
| Memory Bandwidth | 644.6 GB/s |
| Interface & Connectivity | |
| PCI Express Interface | PCIe 5.0 x16 |
| PCIe Bandwidth | PCIe 5.0 x16 |
| Display Outputs | |
| DisplayPort | 2 × DisplayPort 2.1a |
| HDMI | 2 × HDMI 2.1 |
| Max Displays Supported | 4 |
| HDCP Support | HDCP 2.3 |
| Power | |
| TBP (Typical Board Power) | 304W |
| TDP (Max) | 320W |
| Power Connector(s) | 2 × 8-pin PCIe |
| Recommended PSU | 750W |
| Cooling | |
| Cooling Solution | Tri-X Cooling (Triple Fan) |
| Fan Count | 3 |
| Fan Blade Design | AeroCurve Fan Blades |
| Heatsink Design | Free Flow fin module with heatpipes |
| Thermal Interface Material | Honeywell PTM7950 |
| Power Design | Digital Power (accurate power control) |
| Physical Dimensions | |
| Length | 320–321 mm (12.60 in.) |
| Width (Height off PCB) | 120.25 mm (4.73 in.) |
| Thickness (Depth) | 60–61.6 mm |
| Slot Width | Triple Slot (2.42 in.) |
| API & Software Support | |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.6 |
| AMD Upscaling | FSR 4 (RDNA 4 exclusive, ML-based) |
| Ray Tracing | Supported (Hardware Ray Accelerators) |
| System Requirements | |
| Motherboard Slot | PCIe x16 slot required |
| Minimum System RAM | 8 GB (16 GB recommended) |
| Operating System | Windows 10 / Windows 11 / Linux® (64-bit required) |
Unit is brand new never opened with full factory warranty.
Ships with adult signature required.
No returns.





At TieredUp Tech, Inc., we deliver top-quality repairs and custom-built computer systems, ensuring every device performs at its best for our valued customers.
!
