| General | |
|---|---|

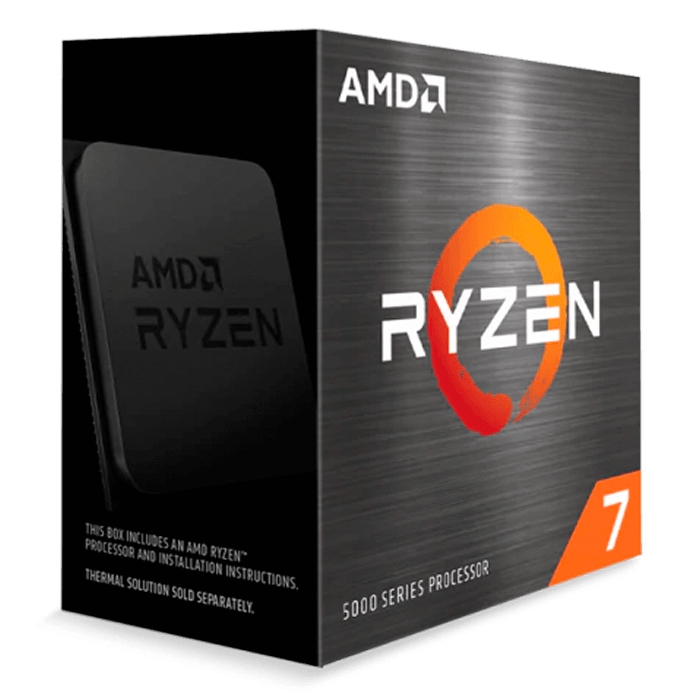

| Product Name | AMD Ryzen™ 7 5800X |
| Product Family | AMD Ryzen™ Processors |
| Product Line | AMD Ryzen™ 7 Desktop Processors |
| Series | Ryzen 5000 Series |
| Codename | Vermeer |
| Microarchitecture | AMD Zen 3 |
| Form Factor | Desktop, Boxed Processor |
| OPN Tray | 100-000000063WOF |
| Launch Date | November 5, 2020 |
| Launch MSRP | $449 USD |
| Processor Cores & Clocks | |
| # of CPU Cores | 8 |
| # of Threads | 16 |
| Base Clock | 3.8 GHz |
| Max. Boost Clock | Up to 4.7 GHz |
| All-Core Boost | Up to 4.5 GHz |
| Unlocked for Overclocking | Yes |
| SMT (Simultaneous Multithreading) | Yes |
| Cache | |
| L1 Cache | 512 KB (64 KB per core) |
| L2 Cache | 4 MB (512 KB per core) |
| L3 Cache (GameCache) | 32 MB |
| Total Cache | 36 MB |
| Memory | |
| Memory Type | DDR4 |
| Memory Channels | 2 (Dual-Channel) |
| Max. Memory Speed | Up to 3200 MT/s (DDR4-3200) |
| Max. Memory Capacity | 128 GB |
| Max. Memory Bandwidth | ~51.2 GB/s |
| ECC Memory Support | Yes (Unofficial / Untested by AMD) |
| Power & Thermal | |
| Default TDP | 105W |
| Max. Operating Temperature (Tjmax) | 90°C |
| Thermal Solution (PIB) | Not Included |
| Recommended Cooler | Premium Air Cooler or Liquid Cooler |
| Platform & Connectivity | |
| CPU Socket | AMD Socket AM4 |
| PCI Express® Version | PCIe® 4.0 |
| PCIe Lanes (CPU) | 24 (x16 GPU + x4 NVMe/Storage + x4 Chipset) |
| Compatible Chipsets | AMD X570, B550 (BIOS update may be required); X470, B450 (select boards) |
| Manufacturing | |
| CPU Core Process Node | TSMC 7nm FinFET (CCD) |
| I/O Die Process Node | GlobalFoundries 12nm |
| Architecture | x86-64 (64-bit) |
| Die Configuration | 1 CCD + 1 IOD (Chiplet Design) |
| Integrated Graphics | |
| Integrated GPU | None |
| Instruction Set & Extensions | |
| Instruction Set | x86-64 |
| Supported Extensions | MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, SSE4a, AVX, AVX2, FMA3, AES, SHA, BMI, BMI2, CLMUL |
| Virtualization | AMD-V (AMD Virtualization) |
| OS Support | |
| Windows | Windows 11 (64-bit), Windows 10 (64-bit) |
| Linux | RHEL x86 64-bit, Ubuntu x86 64-bit |
| Supported Technologies | |
| AMD StoreMI | Yes |
| AMD Ryzen™ Master Utility | Yes |
| AMD VR-Ready Premium | Yes |
| AMD Precision Boost 2 | Yes |
| AMD Precision Boost Overdrive | Yes |
| AMD Cool'n'Quiet | Yes |
