| General | |
|---|---|

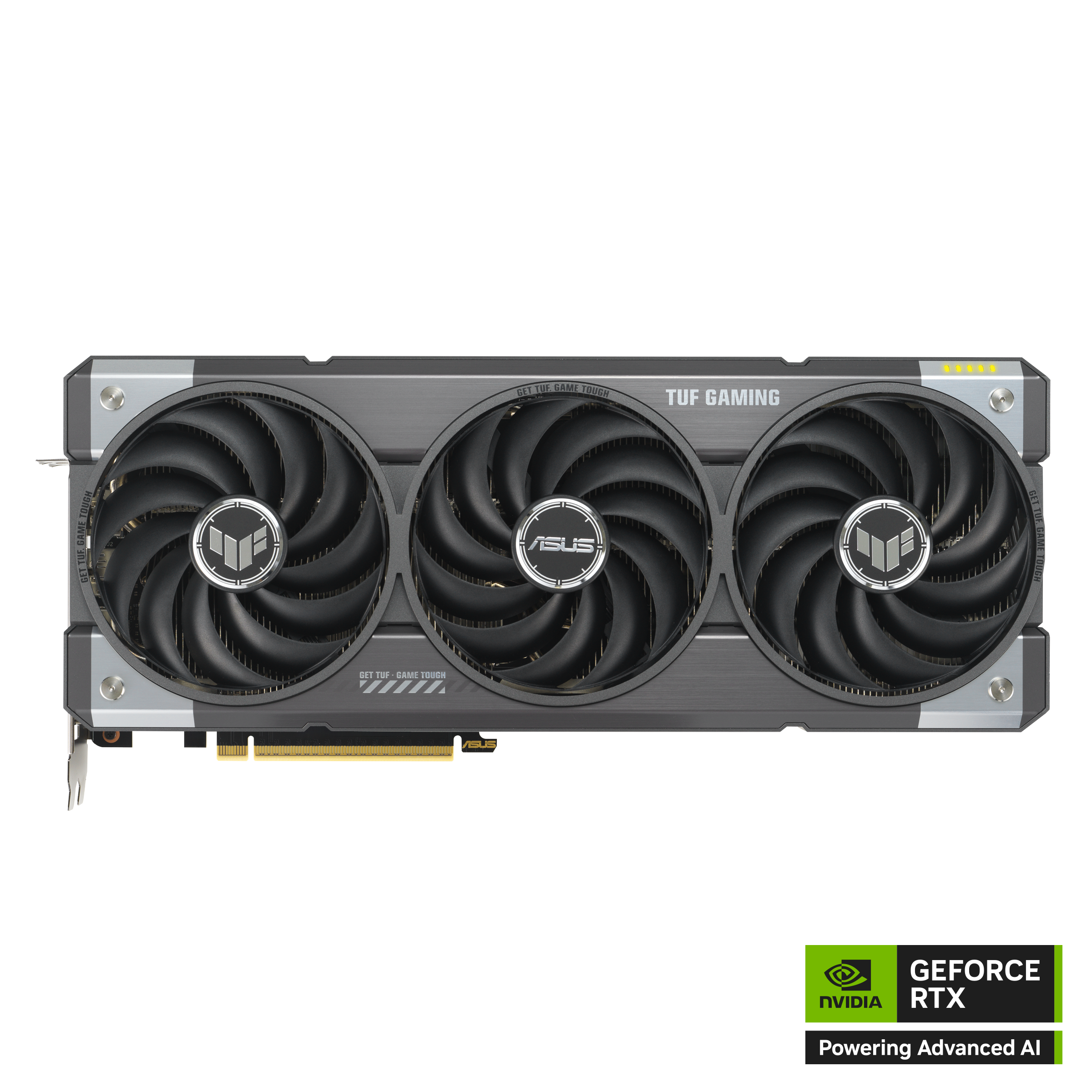

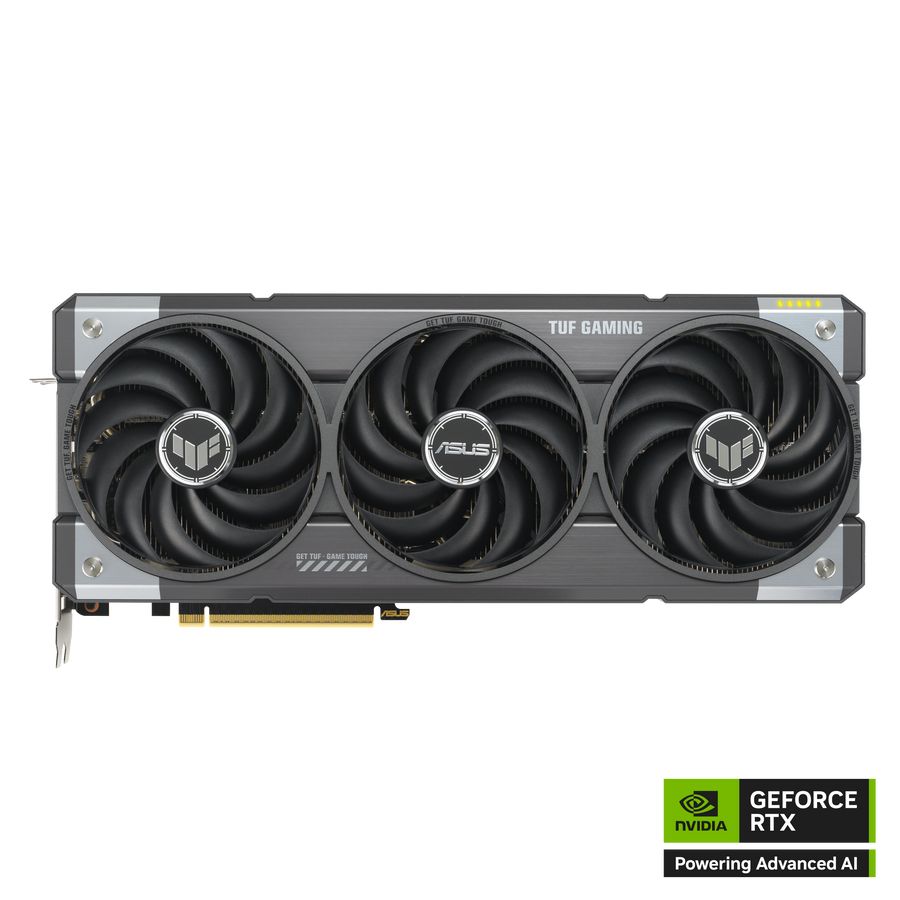

| Brand | ASUS TUF Gaming |
| Model | TUF-RTX5070-O12G-GAMING |
| Part Number | 90YV0LZ0-M0NA00 |
| GPU Architecture | NVIDIA Blackwell |
| Graphic Engine | NVIDIA® GeForce RTX™ 5070 |
| Color | Black / Silver |
| Form Factor | Plug-in Card (ATX) |
| GPU Specifications | |
| CUDA Cores | 6144 |
| Tensor Cores | 192 (5th Gen) |
| RT Cores | 48 (4th Gen) |
| Texture Units | 192 |
| ROPs | 80 |
| GPU Processing Clusters | 5 GPCs, 24 TPCs, 48 SMs |
| AI Performance | 988 TOPs |
| Clock Speeds | |
| Boost Clock (OC Mode) | 2640 MHz |
| Boost Clock (Default Mode) | 2610 MHz |
| Reference Boost Clock | 2512 MHz |
| Max Power Limit (OC Headroom) | Up to 300W |
| Memory | |
| Video Memory | 12 GB GDDR7 |
| Memory Interface | 192-bit |
| Memory Speed | 28 Gbps (1750 MHz clock) |
| Memory Bandwidth | 672 GB/s |
| L1 Cache | 6144 KB |
| L2 Cache | 49152 KB |
| Display & Output | |
| DisplayPort Outputs | 3 × Native DisplayPort 2.1b |
| HDMI Outputs | 2 × Native HDMI 2.1b |
| HDCP Support | Yes (2.3) |
| Max Digital Resolution | 7680 × 4320 (8K) |
| Maximum Simultaneous Displays | 4 |
| G-Sync Support | Yes |
| NVLink / CrossFire | Not Supported |
| Connectivity & Bus | |
| Bus Interface | PCI Express 5.0 x16 (backward compatible) |
| OpenGL | OpenGL® 4.6 |
| CUDA API | Yes |
| Power | |
| TDP / TBP | 250W |
| Power Connector | 1 × 16-pin (12V-2×6 / 12VHPWR) |
| Recommended PSU | 750W (min. 600W per ASUS TBP spec) |
| Cooling | |
| Fan Count | 3 × Axial-Tech Fans |
| Fan Bearing Type | Dual-Ball Bearings (up to 80,000 hrs lifespan) |
| Fan Spin Direction | 2 outer fans counter-clockwise; center fan clockwise |
| Airflow Improvement | 23% more air than standard fans |
| 0dB Fan Stop | Fans stop below 50°C; restart above 55°C |
| Thermal Interface | Premium Phase-Change GPU Thermal Pad |
| MaxContact Technology | +5% GPU heat spreader surface area; up to −2°C |
| Dual BIOS | Yes — Performance / Quiet mode toggle |
| Backplate | Vented Aluminum Backplate |
| Shroud | Diecast Vented Metal Exoskeleton |
| Build Quality & Components | |
| Chokes & MOSFETs | Military-Grade TUF Certified |
| Capacitors | TUF 5K Black Metallic — 52% wider temp tolerance, 2.5× longer lifespan |
| PCB Coating | Protective Conformal Coating (moisture, dust, debris resistant) |
| GPU Guard | Adhesive on all 4 corners + GPU mounting bracket |
| Manufacturing Process | Auto-Extreme Technology (single-pass automated soldering) |
| Lighting | |
| RGB Lighting | ARGB (Addressable RGB) |
| Sync Ecosystem | ASUS Aura Sync |
| Physical Dimensions | |
| Dimensions (L × W × H) | 329 × 140 × 62.5 mm (12.95 × 5.51 × 2.46 in) |
| Card Length | 329 mm (13 in) |
| Card Width | 140 mm (5.5 in) |
| Card Height | 62.5 mm (2.46 in) |
| Slot Width | 3.125-slot |
| Features & Technologies | |
| DLSS | DLSS 4 (Multi Frame Generation, Ray Reconstruction, Super Resolution) |
| Ray Tracing | Yes — 4th Gen RT Cores |
| NVIDIA Reflex | Yes — Reflex 2 with Frame Warp |
| Neural Shader | Yes |
| NVIDIA Studio | Yes |
| Overclocking Utility | ASUS GPU Tweak III |
| Software | |
| Bundled Software | ASUS GPU Tweak III, MuseTree (AI Image Gen), GeForce Game Ready Driver, Studio Driver |
| Accessories Included | |
| In Box | Speedsetup Manual, TUF Graphics Card Holder, TUF Velcro Hook & Loop, TUF Magnet, TUF Gaming Certificate, Thank You Card, Adapter Cable (1 to 2) |
| Marca | NVIDIA |
