| Overview | |
|---|---|

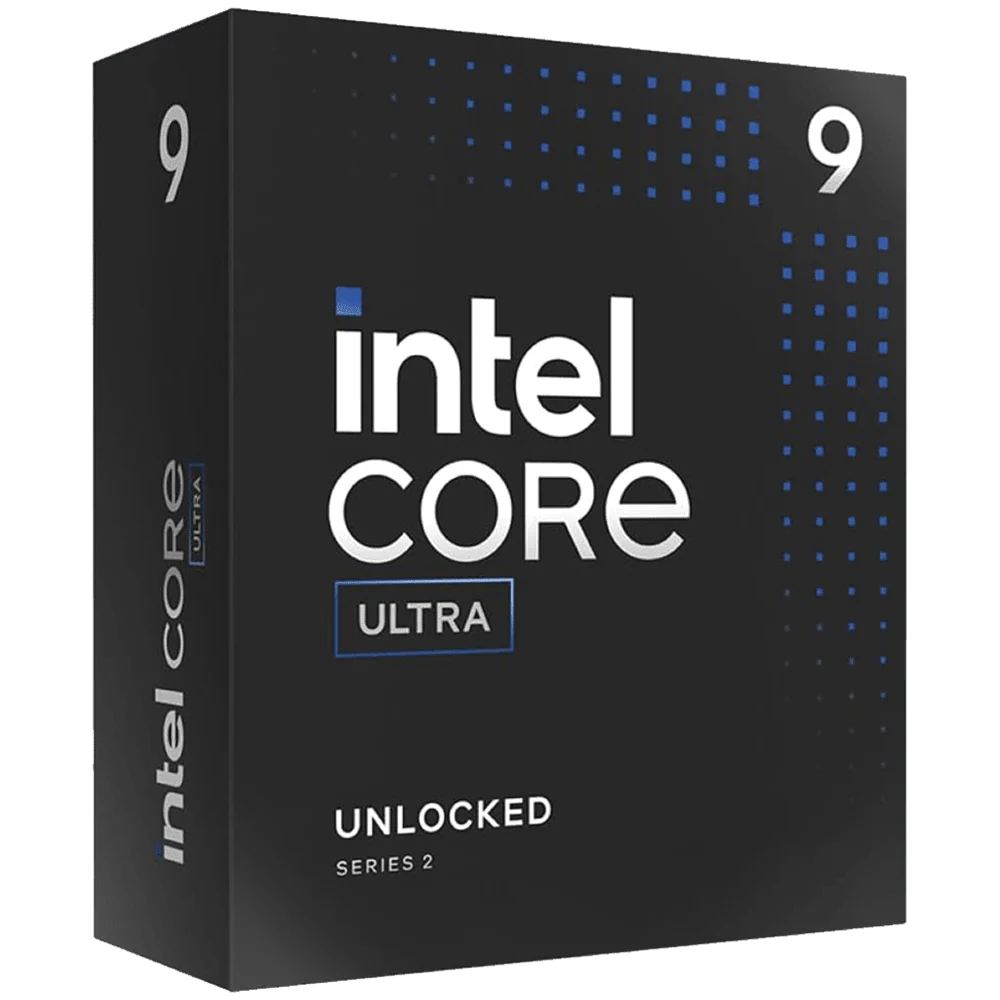

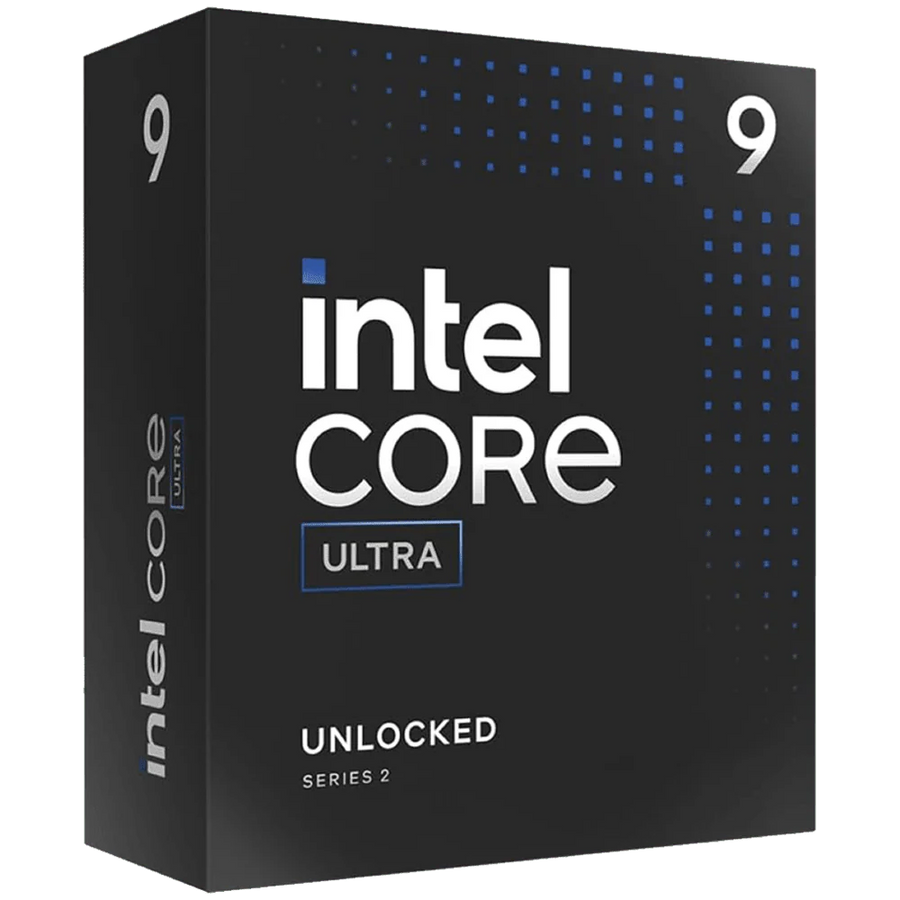

| Product Name | Intel Core Ultra 9 Processor 285K |
| Model Number | BX80768285K |
| Product Line | Core Ultra 9 (Series 2) |
| Codename / Generation | Arrow Lake (Core Ultra 200S) |
| Launch Segment | Desktop |
| 64-bit Support | Yes |
| Unlocked / Overclockable | Yes (K-series) |
| CPU Cores & Threads | |
| Total Cores | 24 (8 P-cores + 16 E-cores) |
| Total Threads | 24 (No Hyper-Threading) |
| Performance Cores (P-cores) | 8 |
| Efficient Cores (E-cores) | 16 |
| Hyper-Threading | No (removed in Arrow Lake) |
| Core Architecture | Performance Hybrid Architecture (P-core + E-core) |
| Clock Speeds | |
| P-Core Base Frequency | 3.7 GHz |
| Max Turbo Boost Frequency | 5.7 GHz |
| Turbo Boost Max 3.0 Frequency | 5.6 GHz |
| Turbo Boost Technology | Intel Turbo Boost Max Technology 3.0 + Thermal Velocity Boost |
| Cache | |
| L1 Instruction Cache (P-cores) | 8 × 64 KB |
| L1 Data Cache (P-cores) | 8 × 48 KB |
| L1 Instruction Cache (E-cores) | 16 × 64 KB |
| L1 Data Cache (E-cores) | 16 × 32 KB |
| L2 Cache (P-cores) | 8 × 3 MB |
| L2 Cache (E-cores) | 4 × 4 MB |
| Total L2 Cache | 40 MB |
| L3 Cache (Intel Smart Cache) | 36 MB |
| Total Cache | 76 MB (L2 + L3 combined) |
| Power | |
| Processor Base Power (PL1 / TDP) | 125 W |
| Maximum Turbo Power (MTP / PL2) | 250 W |
| Maximum Junction Temperature (TJMax) | 105°C |
| Thermal Solution Included | No (sold separately) |
| Memory | |
| Memory Type | DDR5 (CUDIMM supported) |
| Max Memory Speed | DDR5-6400 MT/s (native); DDR5-8000+ (overclocked via XMP) |
| Max Memory Size | 192 GB |
| Memory Channels | Dual-Channel |
| ECC Memory Support | Yes |
| Max Memory Bandwidth | 102.4 GB/s |
| Intel XMP Support | Yes (Intel eXtreme Memory Profile) |
| Socket & Platform | |
| CPU Socket | LGA1851 (FCLGA1851) |
| Compatible Chipsets | Intel 800 Series (Z890, etc.) |
| Package | 3D Foveros Multi-Chip Packaging (MCP) |
| PCIe & Connectivity | |
| PCIe Version Support | PCIe 5.0 & PCIe 4.0 |
| CPU PCIe Lanes | 24 total (PCIe 5.0 ×16 GPU + PCIe 5.0 ×4 NVMe + PCIe 4.0) |
| Chipset PCIe Lanes | 20 additional PCIe 4.0 lanes (via Z890 chipset) |
| Wi-Fi Support | Discrete Intel Wi-Fi 710 + Bluetooth 5.4 (platform support) |
| Intel vPro Support | Yes |
| Integrated Graphics | |
| GPU Name | Intel Xe-LPG Graphics (Xe Core Graphics) |
| GPU Architecture | Intel Xe-LPG (same as Meteor Lake; not Battlemage/Xe2) |
| Xe Cores | 4 Xe Cores |
| Execution Units (EUs) | 64 EUs |
| GPU Boost Clock | 2.0 GHz |
| Max Resolution (HDMI) | 7680 × 4320 @ 60 Hz |
| Max Display Outputs | 4 simultaneous displays |
| Intel Quick Sync Video | Yes |
| AI & NPU | |
| Integrated NPU | Yes (dedicated AI accelerator) |
| NPU Throughput | 13 TOPS (INT8) |
| Total Platform AI TOPS (CPU+GPU+NPU) | ~36 TOPS combined |
| Microsoft Copilot+ Certified | No (requires 40+ TOPS; platform reaches ~36 TOPS) |
| GNA (Gaussian & Neural Accelerator) | GNA 3.5 (noise suppression, background blur) |
| Overclocking | |
| Overclocking Support | Yes (unlocked K-series) |
| Ratio Granularity | 16.6 MHz increments |
| Dual BCLK Tuning | Yes (compute die and SoC die independently) |
| Die-to-Die Interface OC | Yes (MCP die-to-die interface overclocking) |
| Intel XTU Support | Yes (Intel Extreme Tuning Utility v10+) |
| Technology & Features | |
| Intel Thread Director | Yes (built-in, dynamically assigns workloads to optimal cores) |
| Intel Dynamic Tuning Technology | Yes |
| Intel Application Optimization | Yes |
| Intel Optane Memory Support | Yes |
| AES-NI (Hardware Encryption) | Yes |
| Intel vPro Technology | Yes |
| Intel Turbo Boost Max Technology 3.0 | Yes |
| Thermal Velocity Boost | Yes |
| Intel eXtreme Memory Profile (XMP) | Yes (DDR5 memory overclocking) |
| Instruction Set Extensions | SSE4.1, SSE4.2, AVX-512, AVX2, BMI1, BMI2 |
