| Overview | |
|---|---|

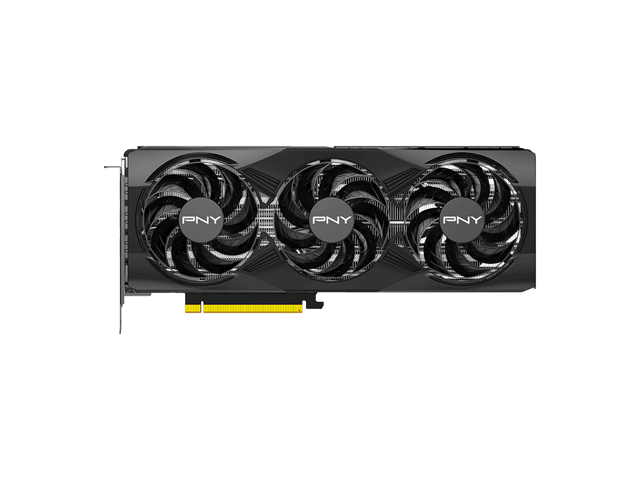

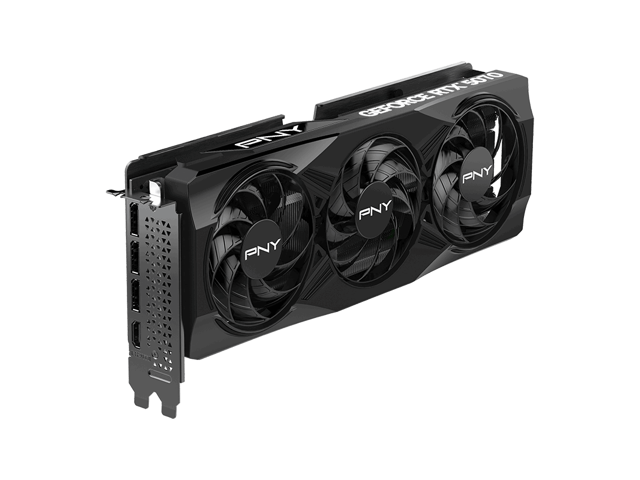

| Product Name | PNY GeForce RTX 5070 OC Triple Fan 12GB GDDR7 RGB Graphics Card |
| Model / Part Number | VCG507012TFXPB1-O |
| GPU | NVIDIA GeForce RTX 5070 |
| Architecture | NVIDIA Blackwell |
| GPU Chip | GB205 |
| Fabrication Process | 4nm (TSMC N4P) |
| Color | Black |
| GPU Cores & Compute | |
| CUDA Cores | 6,144 |
| Tensor Cores | 5th Generation (192 Tensor Cores) |
| RT Cores | 4th Generation (48 RT Cores) |
| Streaming Multiprocessors (SMs) | 48 |
| Clock Speeds | |
| Base Clock | 2,475 MHz |
| Boost Clock (OC) | 2,512 MHz (2.51 GHz) |
| Memory | |
| Memory Size | 12 GB |
| Memory Type | GDDR7 |
| Memory Interface | 192-bit |
| Memory Bandwidth | 672 GB/s |
| Effective Memory Clock | 28 Gbps |
| Interface & Connectivity | |
| PCIe Interface | PCI Express 5.0 x16 |
| Power Connector | 1× 16-pin (PCIe Gen5) |
| Display Outputs | |
| DisplayPort | 3× DisplayPort 2.1 |
| HDMI | 1× HDMI 2.1 |
| Maximum Displays Supported | 4 |
| Maximum Resolution | 8K (7680×4320) |
| Cooling & Physical | |
| Cooling Solution | Triple Fan |
| RGB Lighting | Yes (RGB) |
| Card Length | 300 mm |
| Slot Width | 2.4-Slot |
| SFF-Ready | Yes |
| Power | |
| TDP / TBP | 250 W |
| Recommended System PSU | 650 W (minimum, based on Ryzen 9 5900X system) |
| Features & Technologies | |
| DLSS | DLSS 4 with Multi-Frame Generation |
| Ray Tracing | Yes — 4th Generation RT Cores |
| AI / Tensor | 5th Gen Tensor Cores — Max AI performance with FP4 |
| NVIDIA Reflex | Reflex 2 with Frame Warp (latency reduction) |
| NVIDIA Broadcast | Yes |
| NVIDIA Studio | Yes |
| G-SYNC | Yes |
| Neural Rendering / Neural Shaders | Yes — New Streaming Multiprocessors optimized for neural shaders |
| API Support | CUDA, DirectX, OpenGL, Vulkan |
| Driver Included | No — Downloaded via NVIDIA App |
