CLICK TO EXPAND
| Graphics Processing Unit | |
|---|---|
| GPU Model | NVIDIA® GeForce RTX™ 5080 |
| GPU Chip | GB203-400 (GB203) |
| Architecture | NVIDIA Blackwell |
| Fabrication Process | 4 nm (TSMC N4P) |
| Die Size | 378 mm² |
| Transistor Count | 45.6 Billion |
| CUDA Cores | 10,752 |
| Tensor Cores | 336 |
| Ray Tracing Cores | 84 |
| Streaming Multiprocessors (SM) | 84 |
| TMUs | 336 |
| ROPs | 112 |
| AI Performance | 1801 TOPs |
| OpenGL Support | OpenGL® 4.6 |
| Clock Speeds | |
| Base Clock | 2295 MHz |
| Boost Clock (Default Mode) | 2640 MHz |
| Boost Clock (OC Mode) | 2670 MHz |
| Memory | |
| Video Memory | 16 GB GDDR7 |
| Memory Interface | 256-bit |
| Memory Speed | 30 Gbps (Effective) / 3750 MHz |
| Memory Bandwidth | 960 GB/s |
| Display & Output | |
| Max Resolution | 7680 x 4320 (8K) |
| HDMI | 2x Native HDMI 2.1b |
| DisplayPort | 3x Native DisplayPort 2.1b |
| HDCP Support | Yes (2.3) |
| Maximum Simultaneous Displays | 4 |
| NVLink / CrossFire Support | No |
| Connectivity | |
| Bus Interface | PCI Express 5.0 x16 |
| Power Connector | 1x 16-pin (Includes 1-to-3 Adapter Cable) |
| Performance & API | |
| DLSS Version | DLSS 4 |
| Ray Tracing | Yes (3rd Generation) |
| Cooling System | |
| Cooling Type | Active Air Cooling — Quad Axial-Tech Fan Design |
| Number of Fans | 3 (Black Edition) / 4 (OC / Full Astral) |
| Vapor Chamber | Yes — Patented with Milled Heatpipe Pathways |
| Thermal Pad | Phase-Change GPU Thermal Pad |
| Airflow Enhancement | Vertical Airflow Channel — Up to 20% Increased Air Pressure |
| Heatsink | Increased Fin Density Heatsink |
| Fan Headers | 2x PWM FanConnect Headers |
| Power | |
| TDP | 420W |
| Recommended PSU | 850W |
| Form Factor | |
| Dimensions (L x W x H) | 357.6 x 149.3 x 76 mm (14.1 x 5.9 x 3 in) |
| Card Length | 358 mm |
| Slot Width | 3.8 Slots |
| Design & Lighting | |
| Color | Black |
| RGB Lighting | Aura Sync ARGB (Indirect) |
| Frame | Die-Cast Metal Frame |
| GPU Bracket | Metal GPU Bracket |
| Software | |
| Bundled Software | ASUS GPU Tweak III, MuseTree, GeForce Game Ready Driver, Studio Driver |
| In the Box | |
| Accessories | 1x Speedsetup Manual, 1x ROG Graphics Card Holder, 1x ROG Velcro Hook & Loop, 1x ROG Magnet, 1x ROG Graphics Card Keycap, 1x ROG PCB Ruler, 1x Thank You Card, 1x Adapter Cable (1-to-3) |

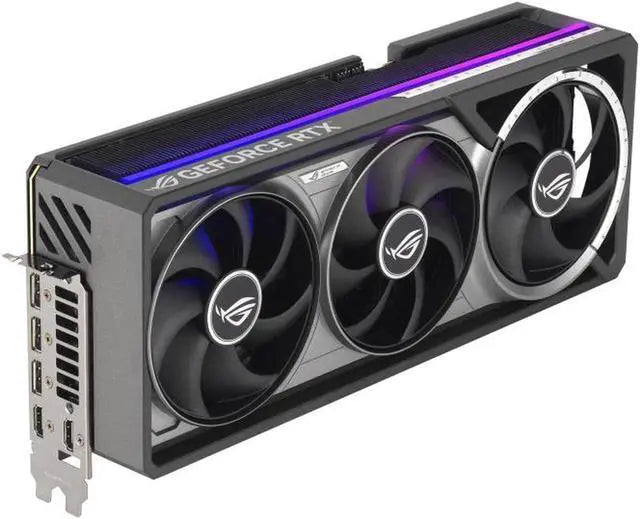

The Asus NVIDIA GeForce RTX 5080 ROG Astral is a triple-fan graphics card equipped with 16 GB of GDDR7 memory, designed to handle demanding gaming workloads and high-resolution graphics rendering. Its controllable RGB lighting lets you customize the card's appearance to match your build.
At 358 mm in length and occupying 3.8 PCIe slots, this card requires careful case planning and a power supply with a 16-pin connector to support its 360W TDP. The black shroud and three-fan cooling system are built to manage heat during extended gaming sessions.
