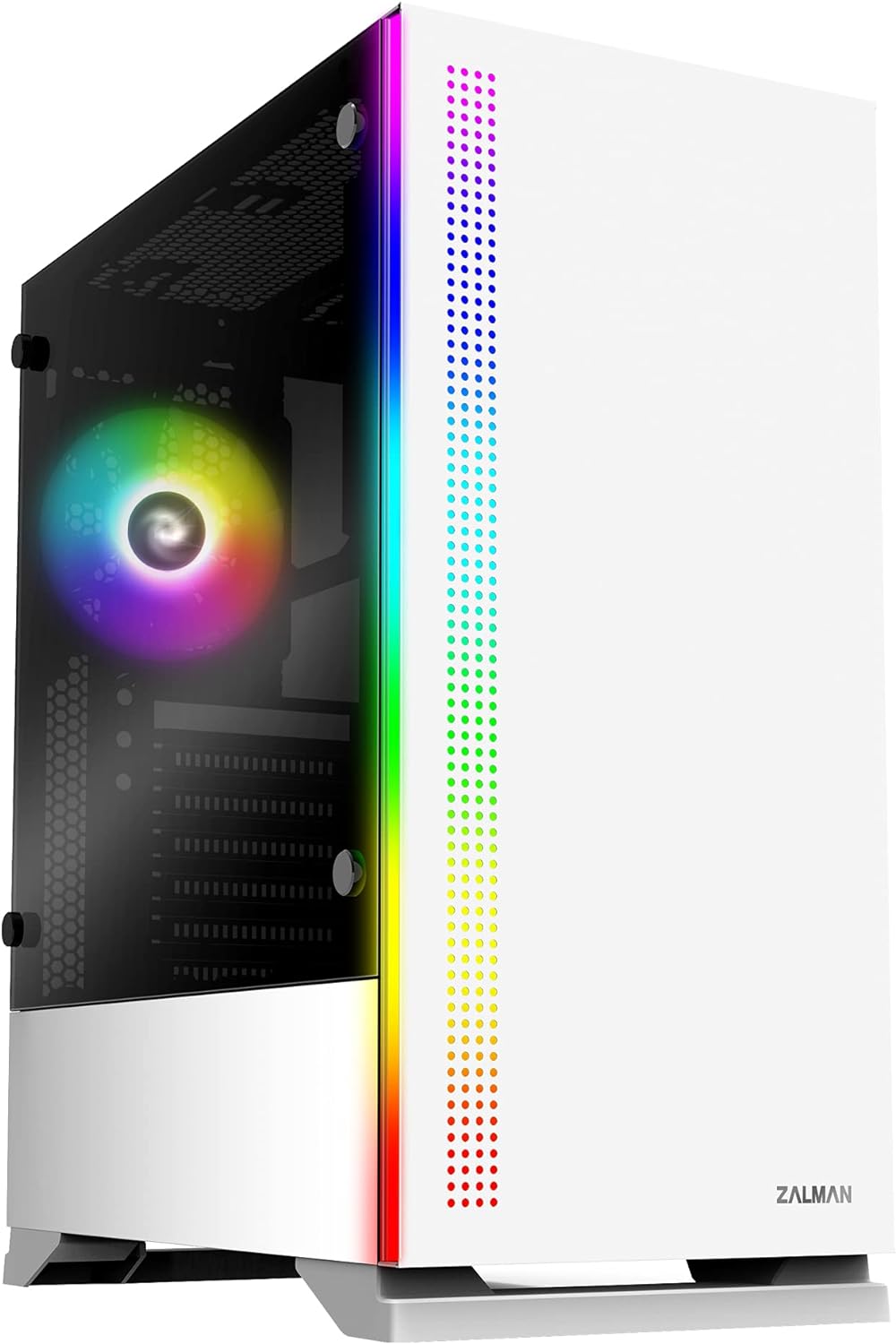

Zalman S5-WH Gaming Computer Case
Zalman S5-WH Gaming Computer Case — side view
Zalman S5-WH Gaming Computer Case — rear view
Zalman S5-WH Gaming Computer Case — detail view
Zalman S5-WH Gaming Computer Case — close-up
Zalman S5-WH Gaming Computer Case — angle view
Zalman S5-WH Gaming Computer Case — top view
Zalman S5-WH Gaming Computer Case — bottom view
Zalman S5-WH Gaming Computer Case — packaging
Geek Tech Supply

Zalman S5-WH Gaming Computer Case

Computer Cases● Out of Stock
$60.00
Qty
Flexible Payment Options
4 interest-free payments of $15.00 — Learn more
As low as $5.00/mo — Learn more
Lease-to-own from $1.15/wk — no credit needed. Apply at checkout
Finance from $2.50/mo — instant decisions. Learn more
🛡️30-Day Warranty
🚚Free Ship $1,200+
🔧Expert Support
General
ModelZM-S5-WHITE (S5-WH)
Form FactorATX Mid Tower
ColorWhite
MaterialsSteel, Plastic, 4mm Tempered Glass
Dimensions & Weight

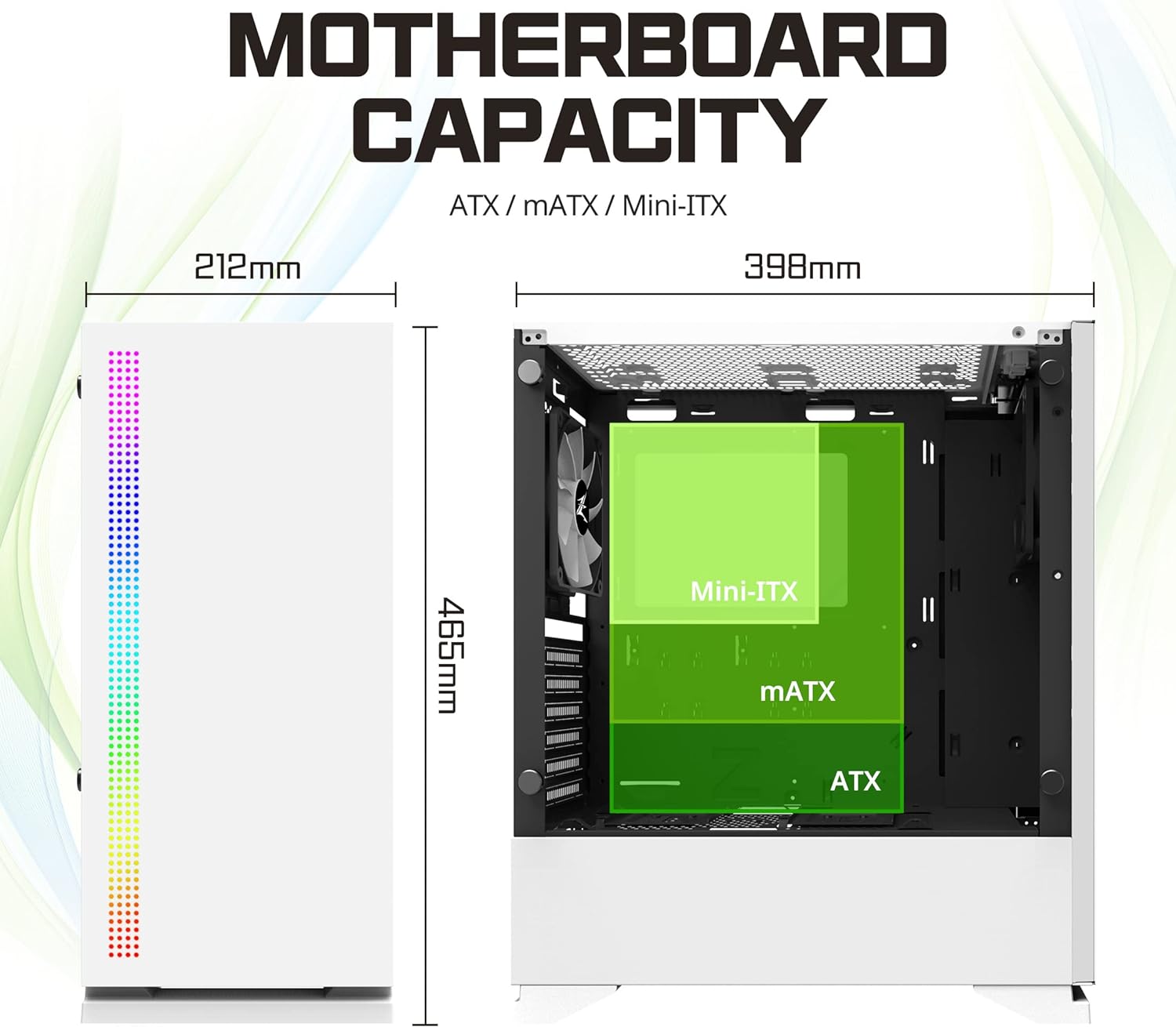

Dimensions (D × W × H)398 × 212 × 465 mm
Weight5.8 kg
Motherboard & Expansion
Motherboard SupportATX, mATX, Mini-ITX
PCI Expansion Slots7
NoteDoes not fit ATX motherboards with side-facing SATA ports

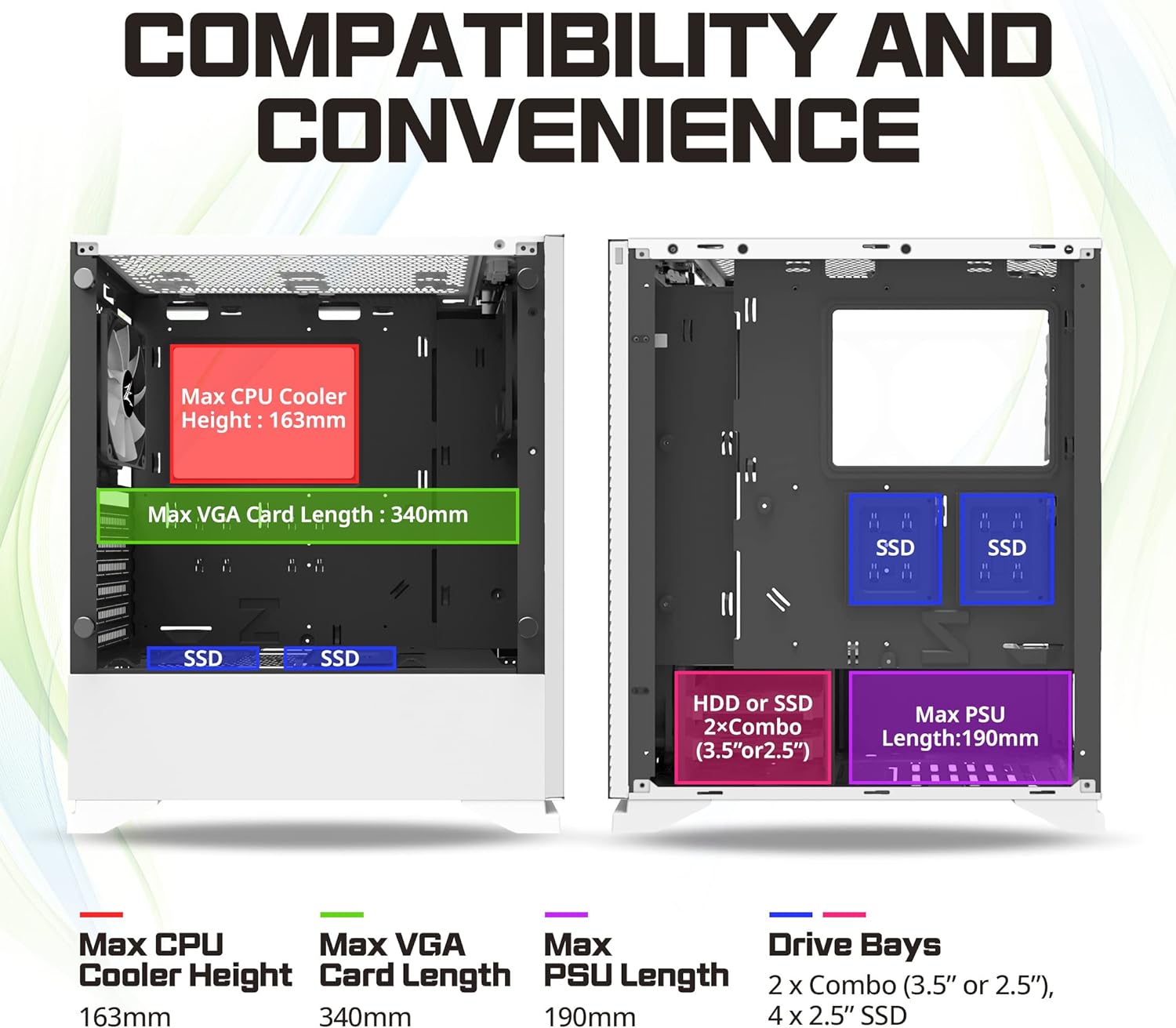

Component Clearance
Max GPU Length340 mm
Max CPU Cooler Height163 mm
Max PSU Length190 mm
Drive Bays
3.5″ / 2.5″ Combo Bays2 × (3.5″ or 2.5″) — modular drive cage
Dedicated 2.5″ Bays4 × 2.5″ (on back of motherboard tray & PSU shroud)
Total Storage Bays6 (2 combo + 4 dedicated 2.5″)

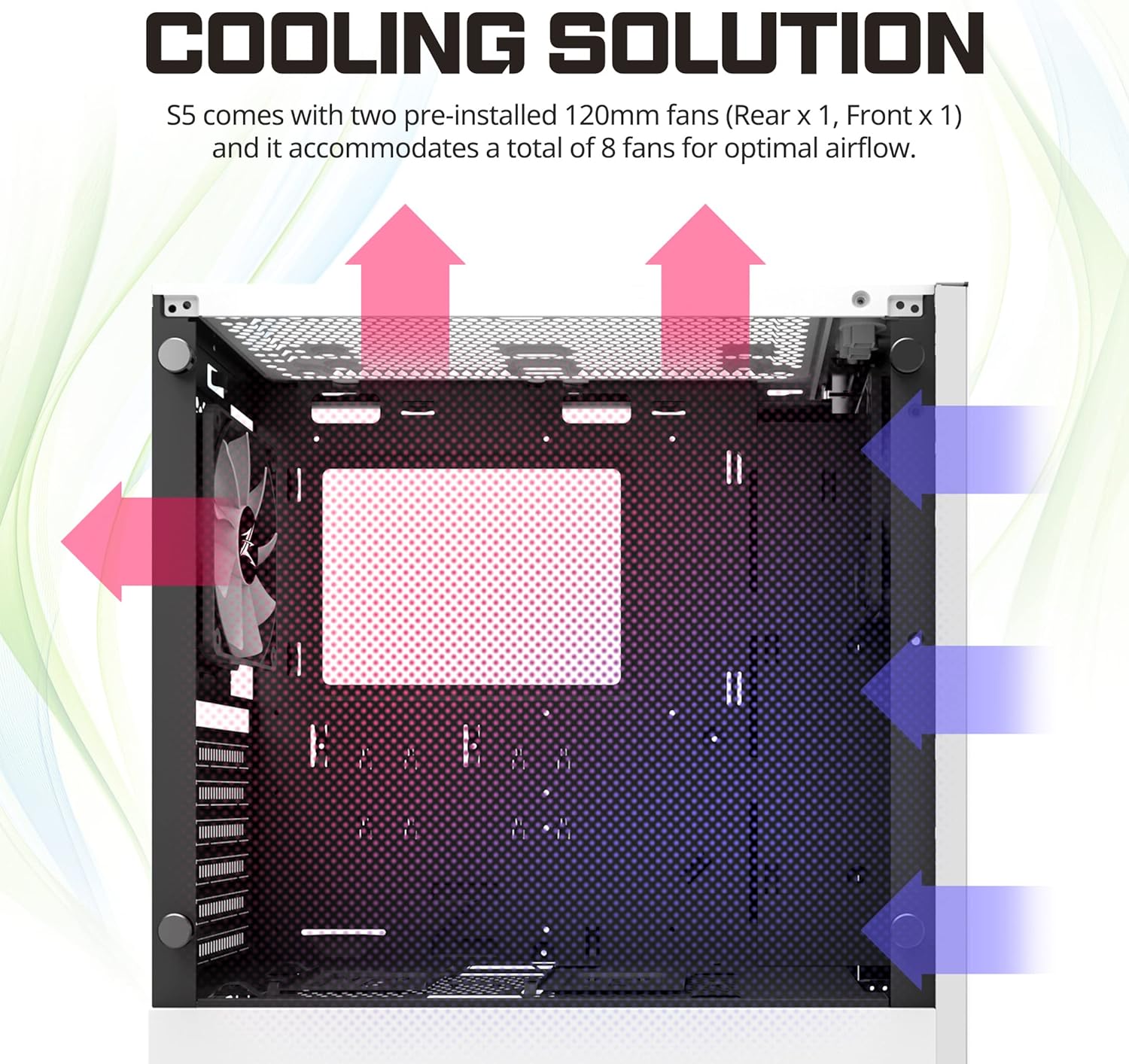

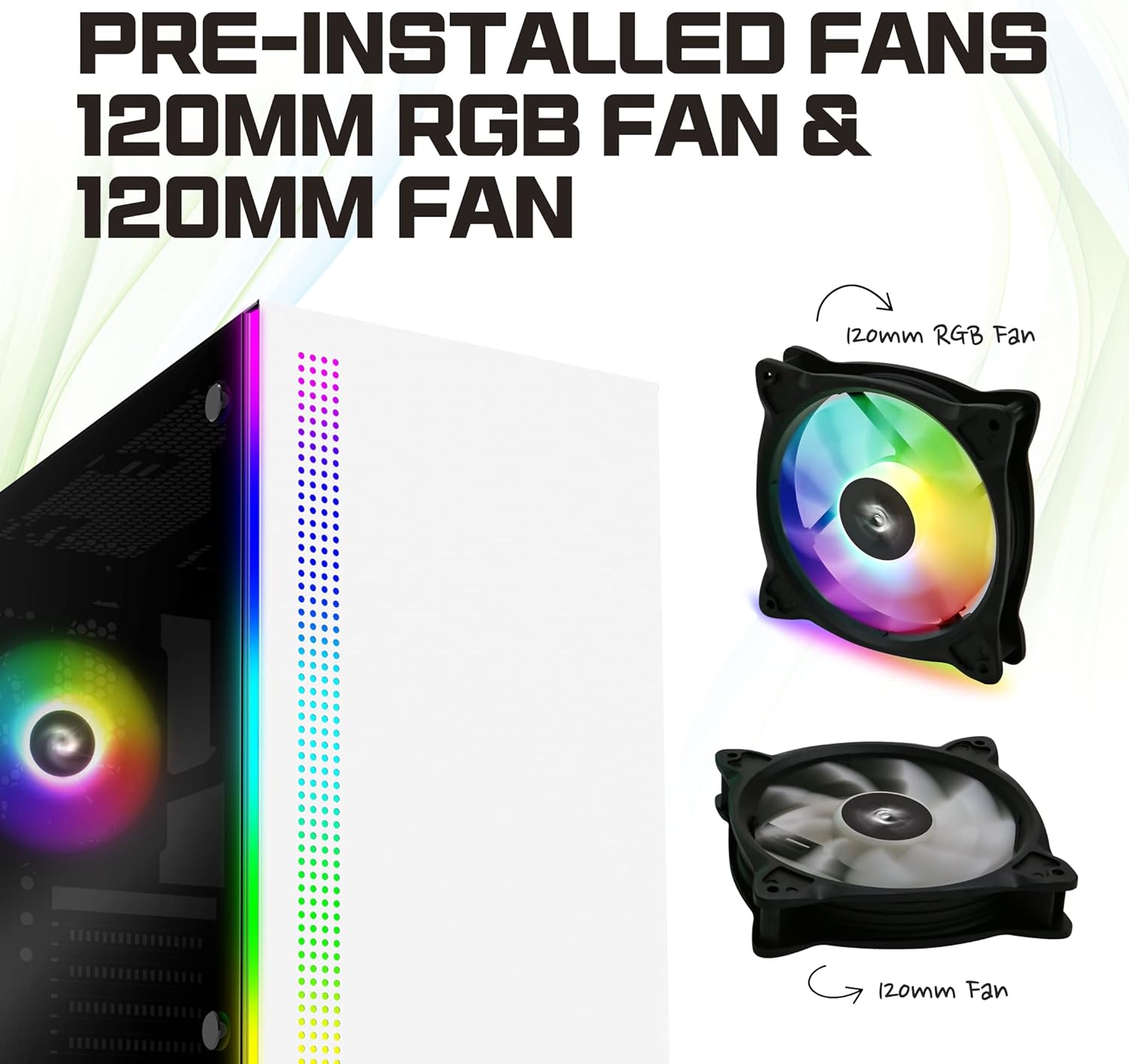

Cooling — Pre-Installed Fans
Front Fan1 × 120mm (non-RGB, hydraulic bearing)
Rear Fan1 × 120mm RGB (hydraulic bearing)
Fan Speed1,100 RPM (±10%) — fixed via 4-pin Molex
Fan Lifespan30,000 hours
Total Pre-Installed Fans2 × 120mm

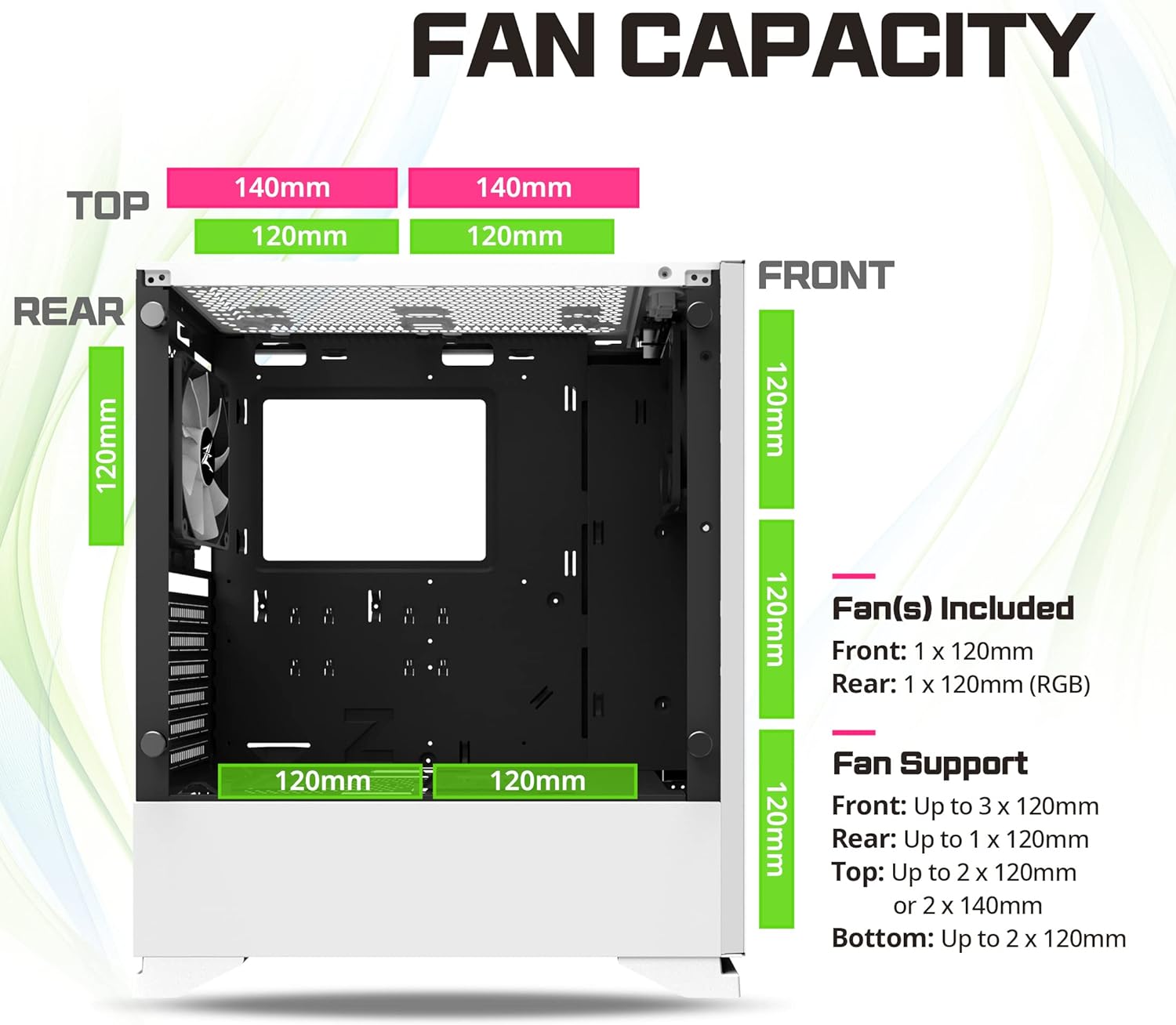

Cooling — Fan Support (Total)
FrontUp to 3 × 120mm
RearUp to 1 × 120mm
TopUp to 2 × 120mm or 2 × 140mm
BottomUp to 2 × 120mm
Total Fan Capacity8 fans
Liquid Cooling & Radiator Support
Vertical AIO BracketYes — supports 1 × 240mm radiator (vertical mount)
Max Radiator Size240mm
Max Radiator Thickness65mm
Top Radiator SupportUp to 240mm
Front Radiator SupportUp to 240mm (via 3 × 120mm fan mounts)

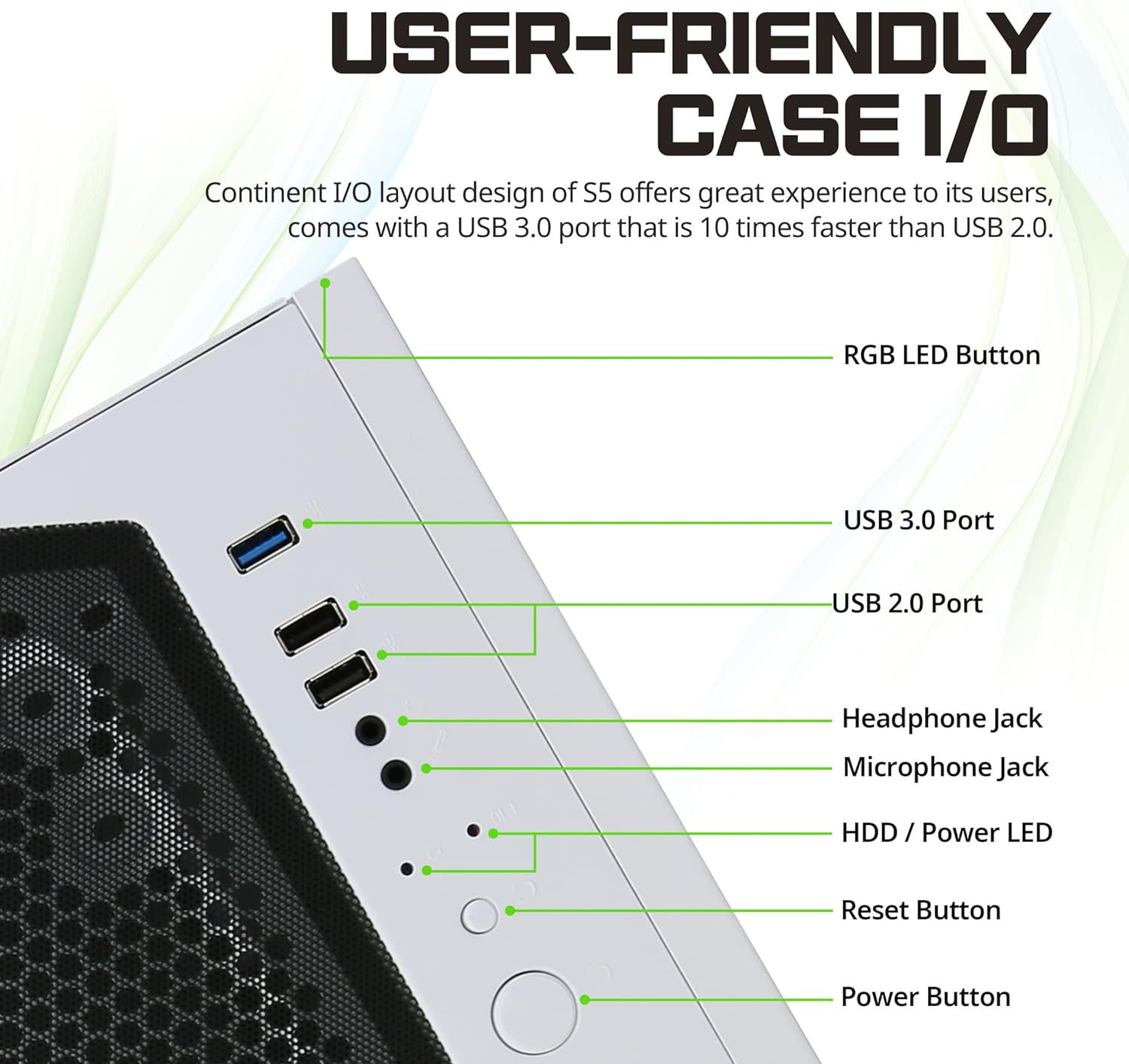

Front Panel I/O
USB 3.01 × USB 3.0
USB 2.02 × USB 2.0
AudioHD Audio (Mic + Headphone)
ButtonsPower Button, Reset Button, RGB Control Button (right side of front cover)
LEDsHDD LED, Power LED
Lighting & Aesthetics
RGB Front Panel StripYes — RGB LED strips on front panel & side
RGB Fan (Rear)Yes — 1 × 120mm RGB fan pre-installed

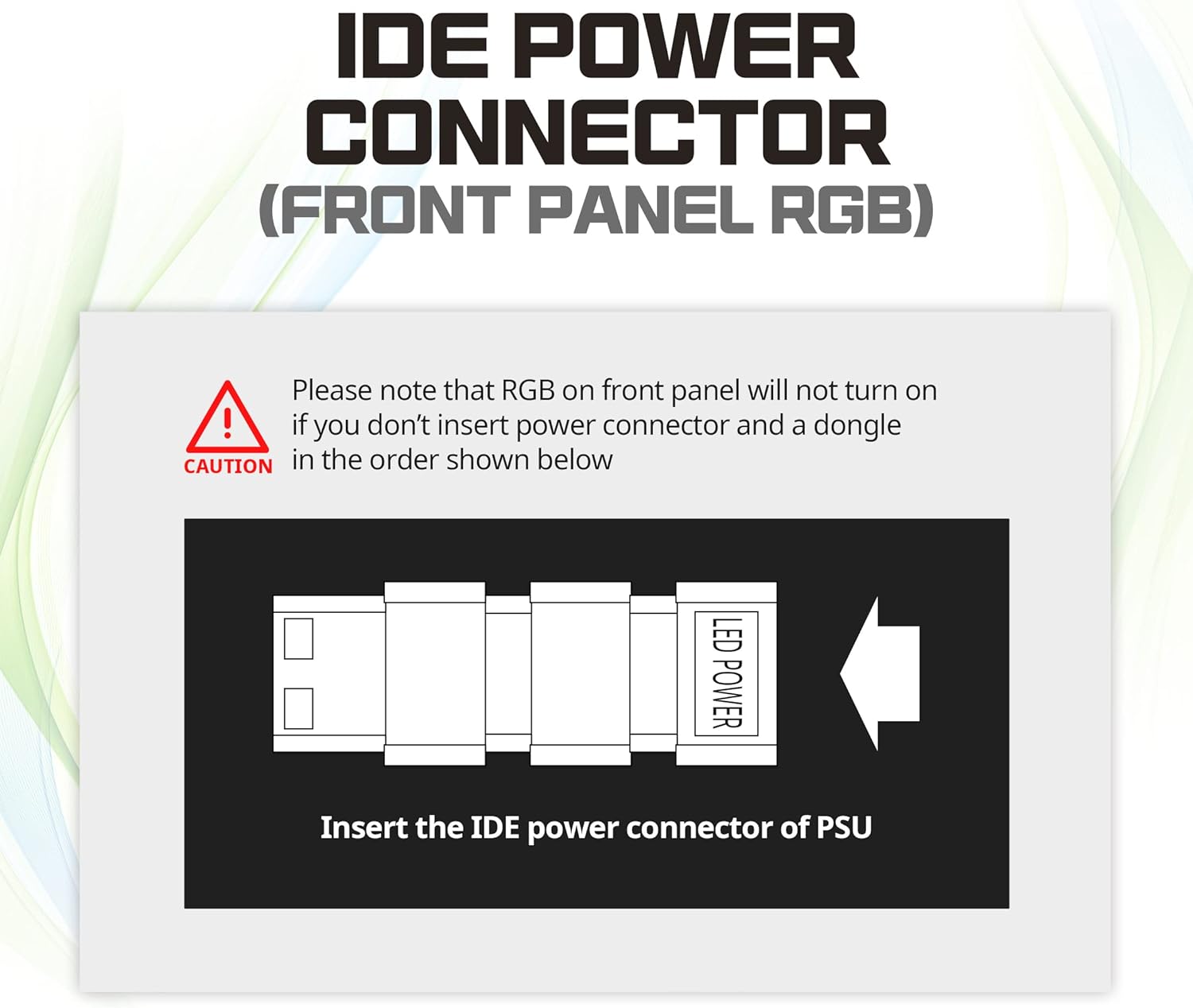

RGB Power SourceIDE 4-pin Molex + dongle required for front panel RGB

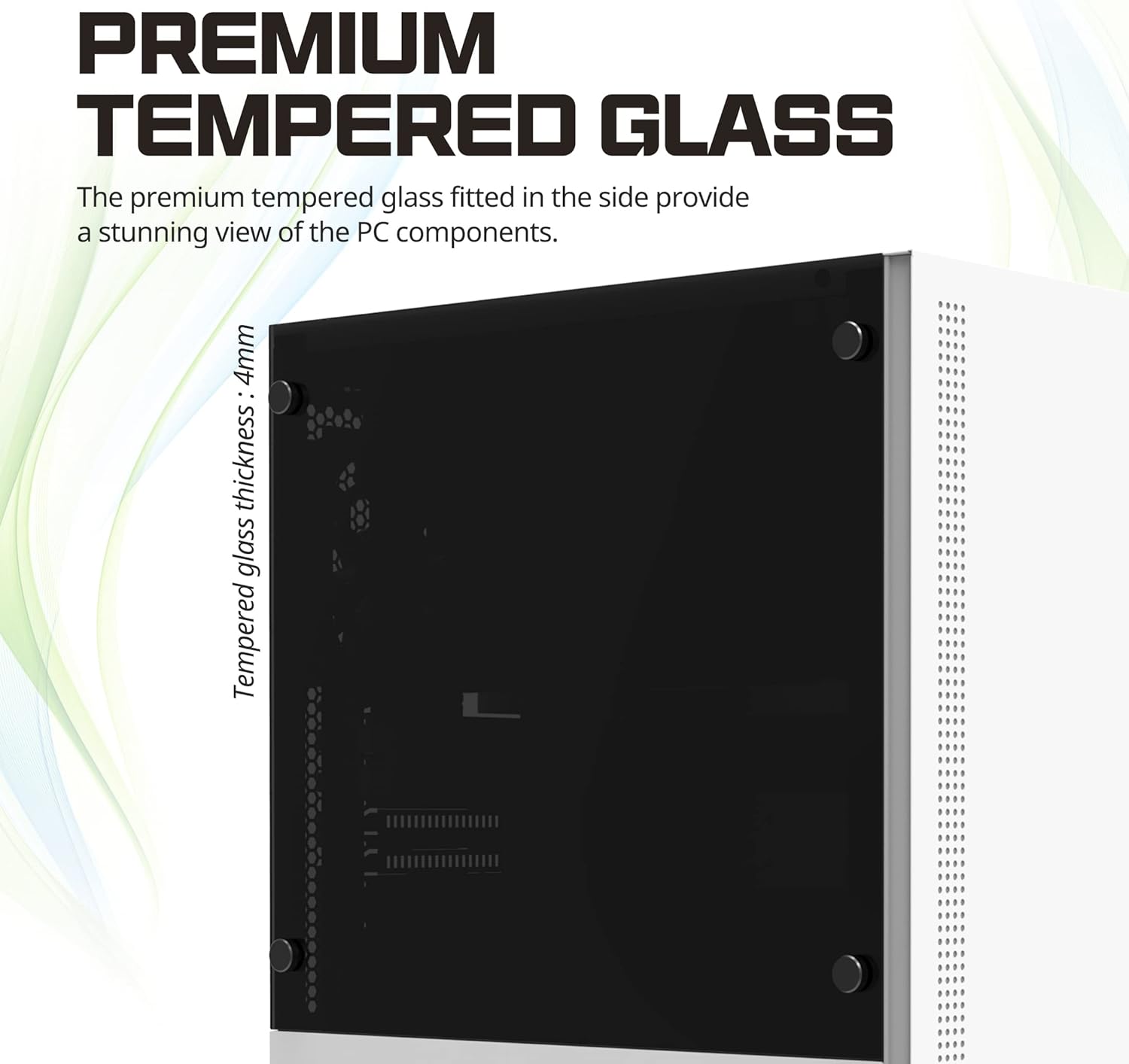

Side Panel4mm Tempered Glass (left side)
Power Supply
PSU Form FactorATX (not included)
PSU LocationBottom-mounted with shroud
Max PSU Length190mm
Bottom Dust FilterYes — removable, attaches with latches
Cable Management
Inner Cable PanelYes — rear inner panel conceals cable routing
Chassis Features
Case Feet4 × rubberized anti-vibration feet
Expansion Slot CoversBreakable (non-reusable) + 1 replacement cover included
Included AccessoriesScrews, cable ties, speaker, glass cleaning cloth, user manual
