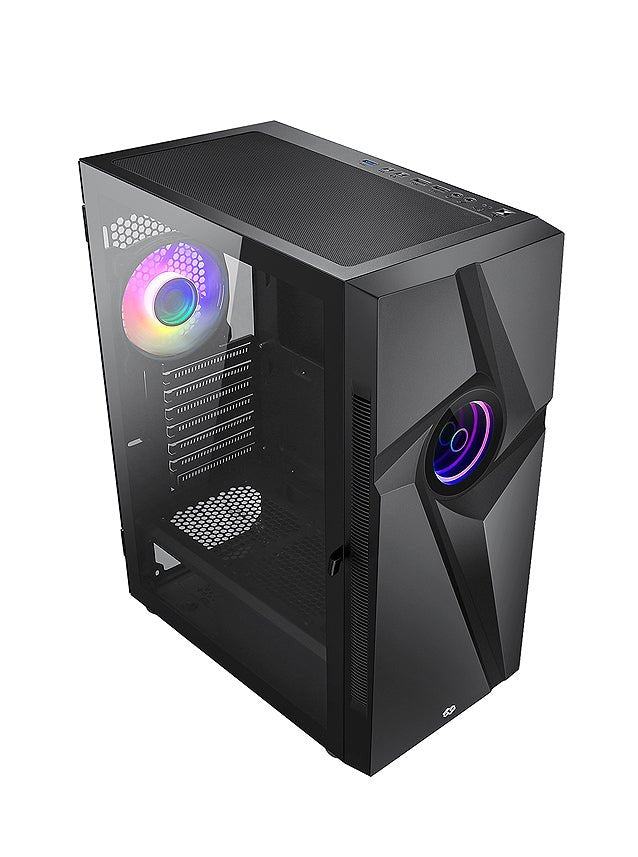

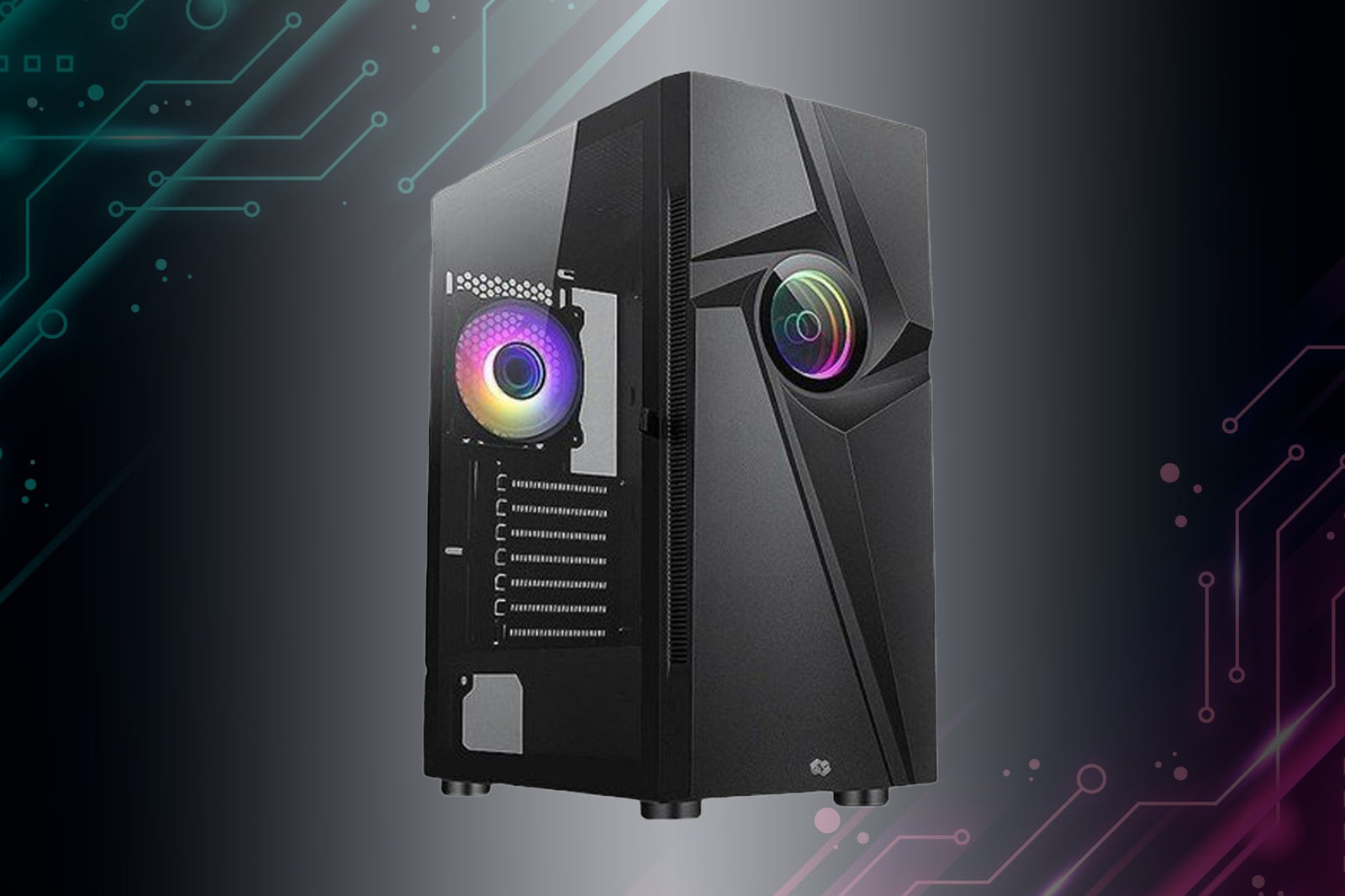

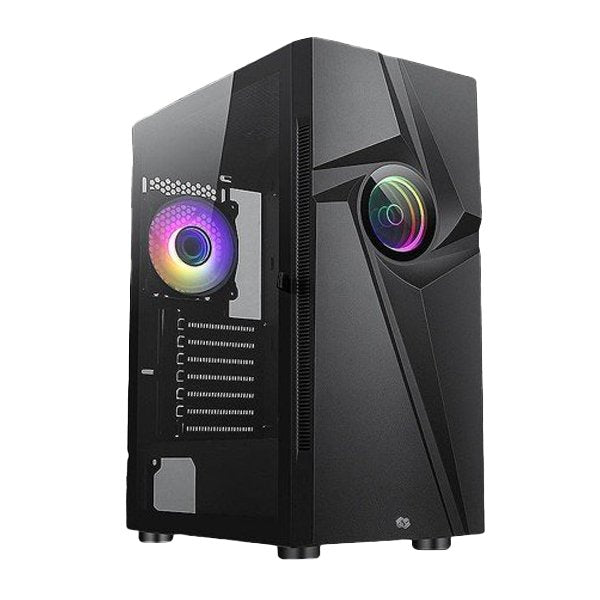

(ATX) BGears Vortex Gaming Computer Case

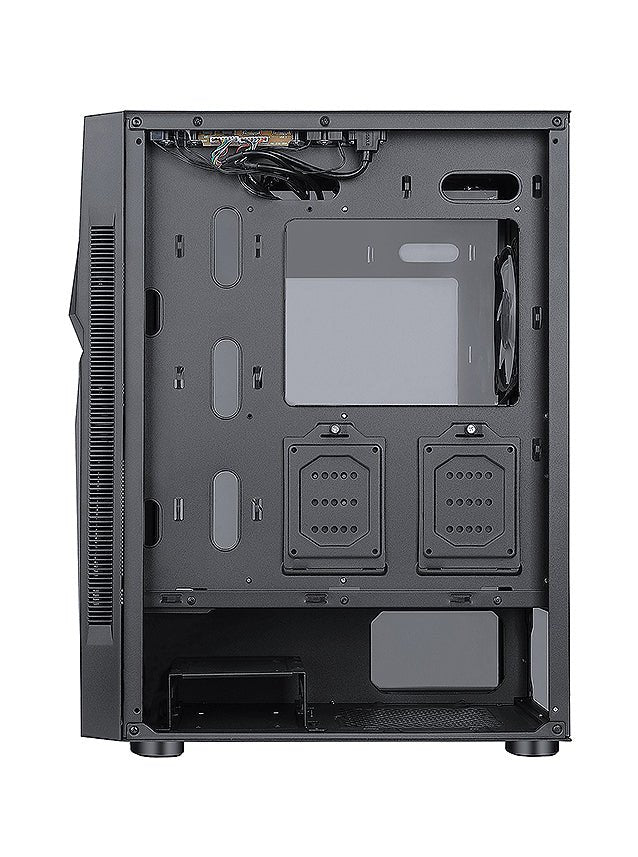

(ATX) BGears Vortex Gaming Computer Case — side view

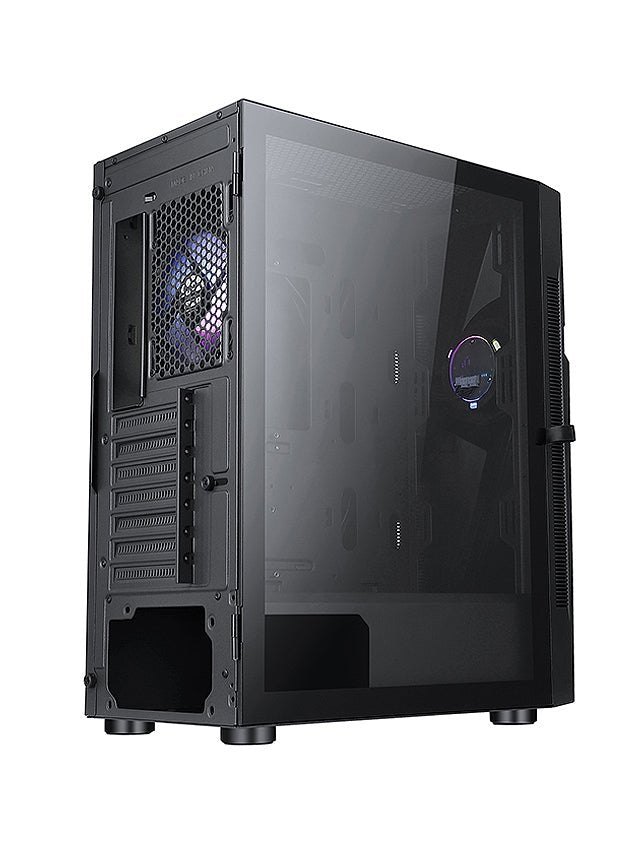

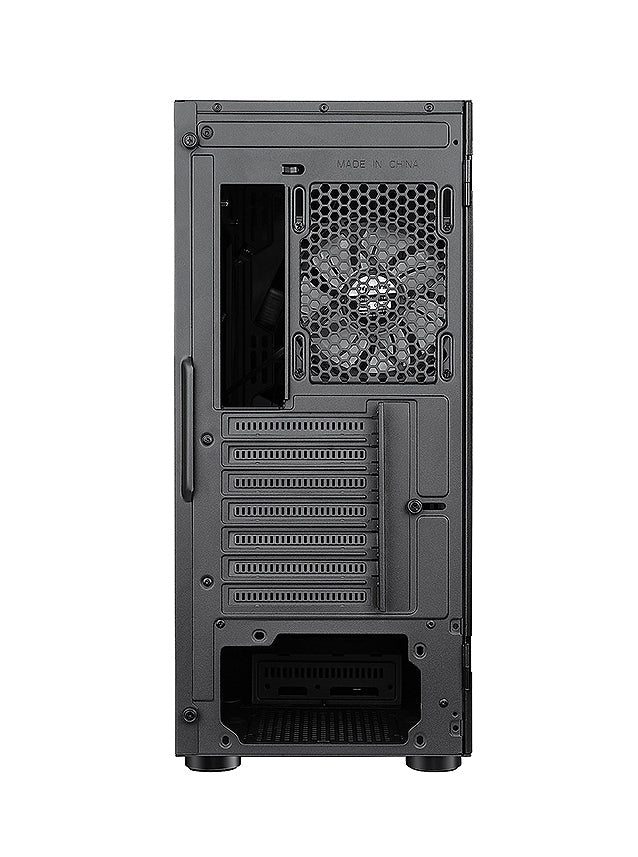

(ATX) BGears Vortex Gaming Computer Case — rear view

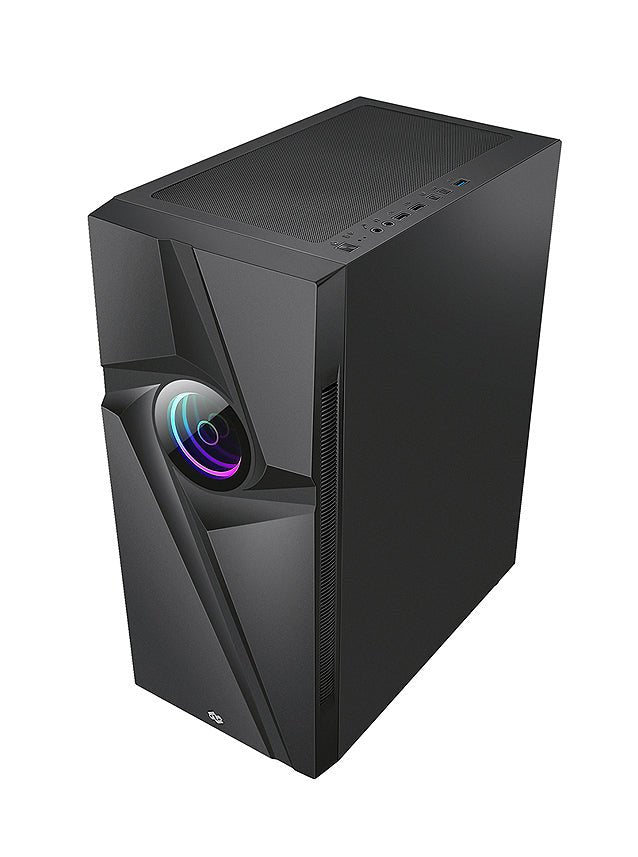

(ATX) BGears Vortex Gaming Computer Case — detail view
(ATX) BGears Vortex Gaming Computer Case — close-up

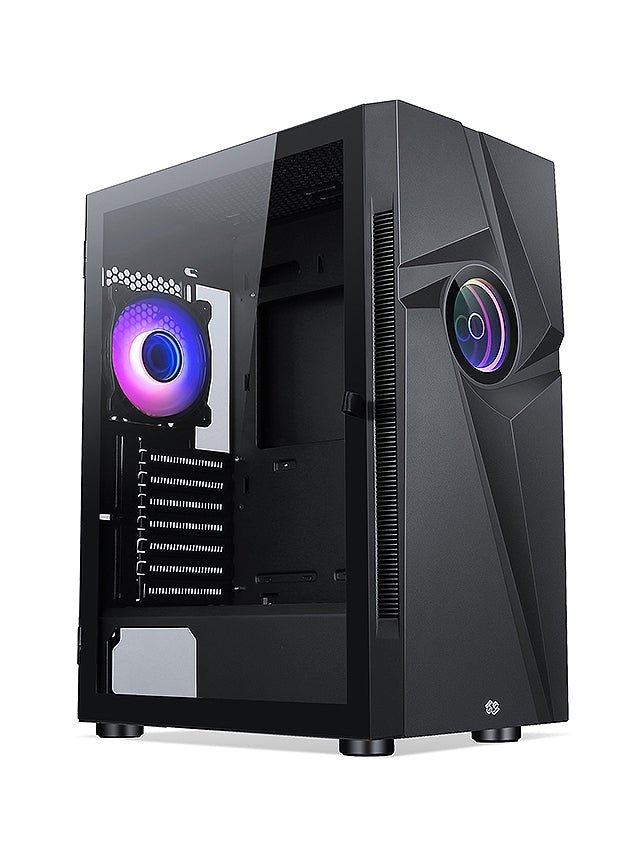

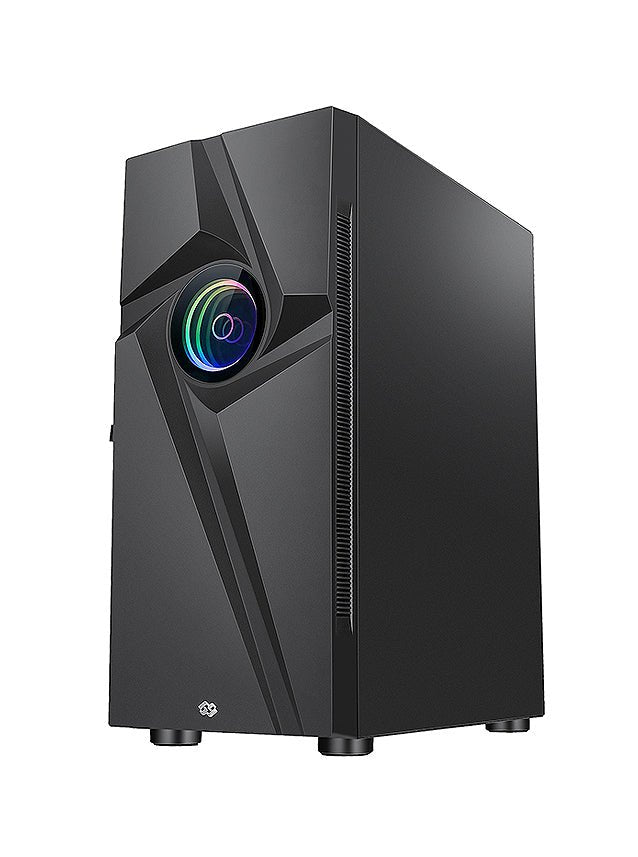

(ATX) BGears Vortex Gaming Computer Case — angle view
(ATX) BGears Vortex Gaming Computer Case — top view
(ATX) BGears Vortex Gaming Computer Case — bottom view
(ATX) BGears Vortex Gaming Computer Case — packaging
(ATX) BGears Vortex Gaming Computer Case — contents included
(ATX) BGears Vortex Gaming Computer Case — spec label
(ATX) BGears Vortex Gaming Computer Case — lifestyle view
BGears

(ATX) BGears Vortex Gaming Computer Case

Computer Cases● Out of Stock
$72.00
Qty
Flexible Payment Options
4 interest-free payments of $18.00 — Learn more
As low as $6.00/mo — Learn more
Lease-to-own from $1.38/wk — no credit needed. Apply at checkout
Finance from $3.00/mo — instant decisions. Learn more
🛡️30-Day Warranty
🚚Free Ship $1,200+
🔧Expert Support
General
BrandBluegears (BGears)
Modelb-Vortex-RGB
Part NumberB-VORTEX RGB
UPC / EAN853704001626
Case TypeMid Tower ATX
ColorBlack
Dimensions & Construction
Overall Dimensions (L × W × H)380 × 210 × 480 mm (14.96" × 8.27" × 18.90")
Internal Dimensions (L × W × H)335 × 210 × 468 mm
Volume38.304 L (1.353 ft³)
Chassis Thickness0.5 mm (black interior)
MaterialsTempered Glass, ABS, Acrylic, Steel
Front Panel MaterialABS + Acrylic + Mirror + Mirror LED (Controlled)

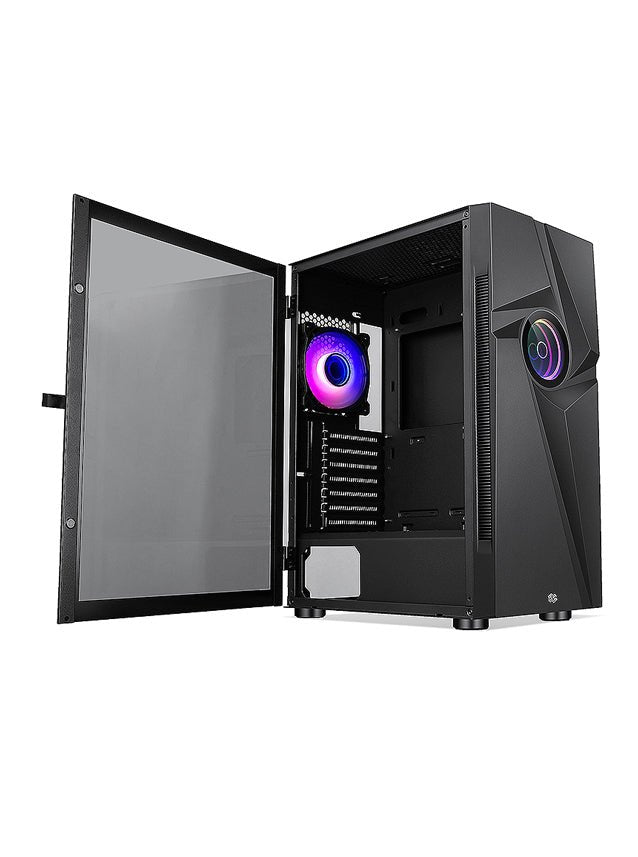

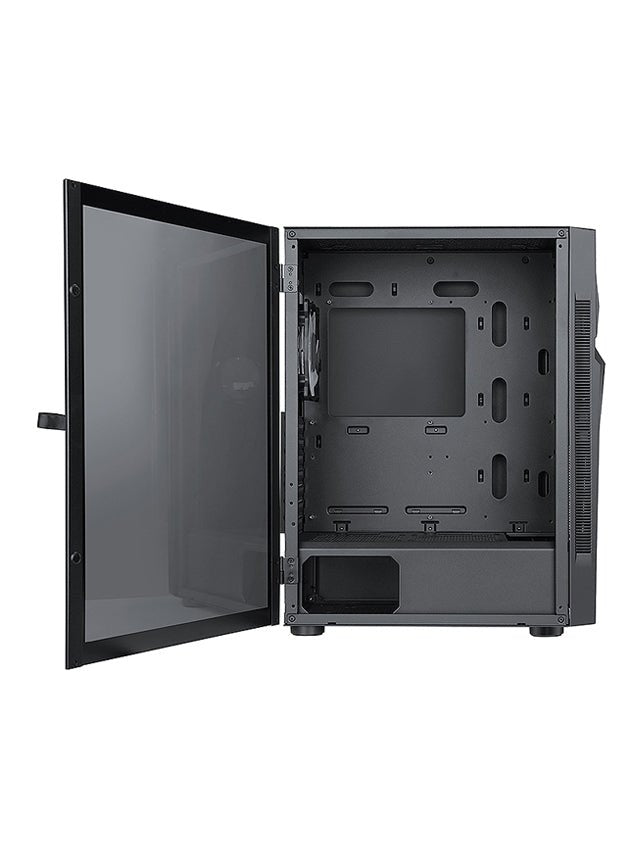

Side Panel LeftDoor-Hinge Tinted Tempered Glass
Side Panel RightSteel
Motherboard Compatibility
Supported Form FactorsE-ATX, ATX, Micro-ATX, Mini-ITX
Drive Bays & Expansion
Internal 3.5" HDD Bays2 × 3.5" (1 bay convertible to 2.5" SSD) — up to 4 total per some configs
Internal 2.5" SSD Bays2 × 2.5"
Expansion Slots (PCIe)7 × Full-Height
Cooling — Fans
Total Fan SupportUp to 8 fans
Front Fan Support3 × 120 mm or 2 × 140 mm (not included; limited to 1 × 120 mm if E-ATX board installed)
Top Fan Support2 × 120 mm or 2 × 140 mm (not included)
Rear Fan1 × PWM 120 mm b-ARGB Vortex (included, syncs with front LED)
PSU Chamber Fan Support2 × 120 mm (optional)
Cooling — Liquid / Radiator
Front Radiator Support240 mm or 360 mm
Top Radiator Support240 mm
Rear Radiator Support120 mm
Component Clearance
Max CPU Cooler Height165 mm
Max GPU / VGA Card Length320 mm (max 320 mm with front fan installed)
Front I/O & Connectivity
USB Ports1 × USB 3.2 Gen 1 Type-A (USB 3.0), 2 × USB 2.0 Type-A
AudioHD Audio + Microphone jacks
I/O Cable Length750 mm
Lighting & Aesthetics

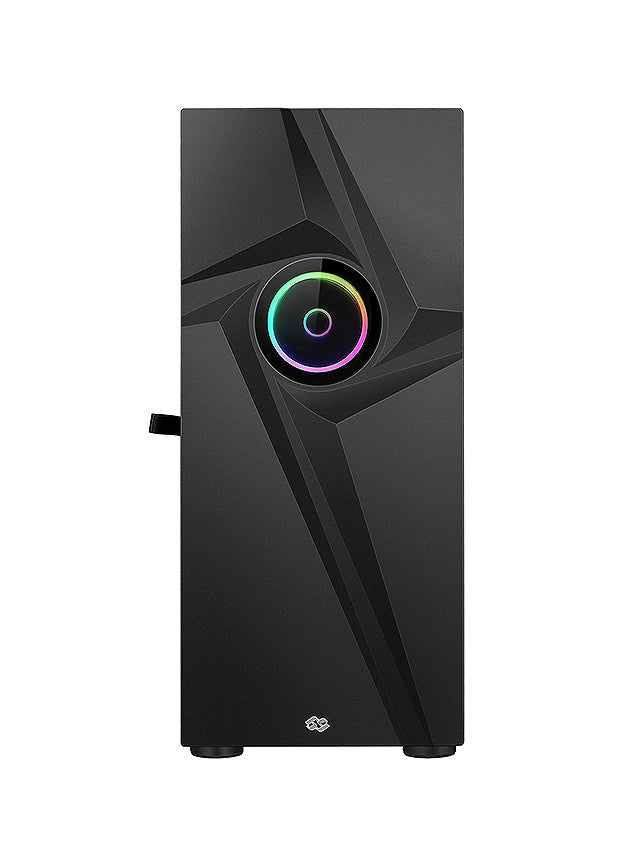

Front Panel LightingARGB LED Optical Illusion / Vortex Effect (Controlled)
Included Fan LightingARGB (syncs with front panel LED)
Side WindowTinted Tempered Glass (door-hinge open design)
Dust Filtration & Airflow Features
Top Panel FilterMagnetic dust cover
PSU FilterPVC filter at PSU location
PSU ChamberSeparate isolated chamber for improved cooling

Mid-Tower | Includes: x1 RGB Fan
