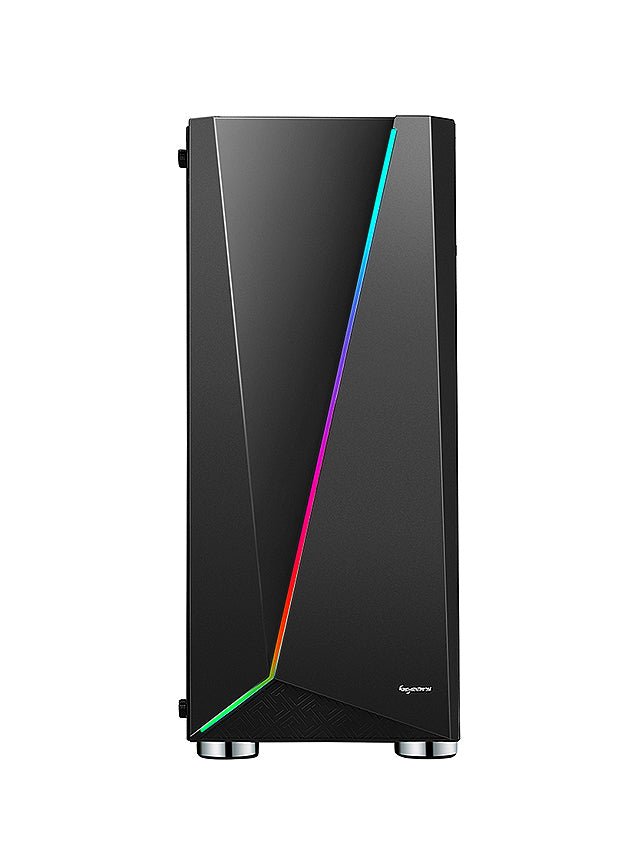

BGears Draco5907 Gaming Computer Case
BGears Draco5907 Gaming Computer Case — side view
BGears Draco5907 Gaming Computer Case — rear view
BGears Draco5907 Gaming Computer Case — detail view
BGears Draco5907 RGB Gaming Computer Case RGB E-ATX ATX Micro-ATX Mini-ITX Tempered Glass Black - TieredUp Tech
BGears Draco5907 RGB Gaming Computer Case RGB E-ATX ATX Micro-ATX Mini-ITX Tempered Glass Black - TieredUp Tech

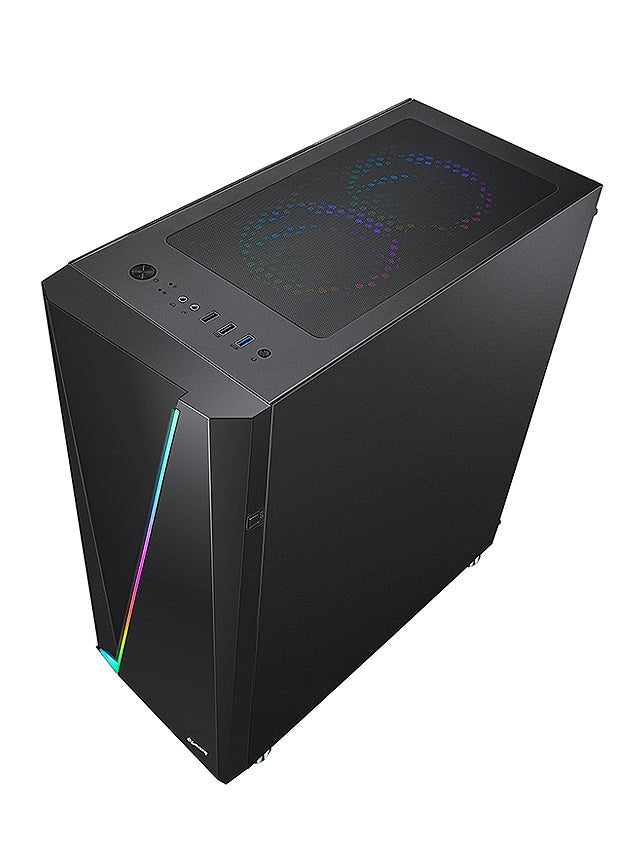

BGears Draco5907 Gaming Computer Case — top view
BGears Draco5907 Gaming Computer Case — bottom view
BGears Draco5907 Gaming Computer Case — packaging
BGears Draco5907 Gaming Computer Case — contents included
BGears Draco5907 Gaming Computer Case — spec label
BGears

BGears Draco5907 Gaming Computer Case

Computer Cases● Out of Stock
$89.99
Qty
Flexible Payment Options
4 interest-free payments of $22.49 — Learn more
As low as $7.49/mo — Learn more
Lease-to-own from $1.73/wk — no credit needed. Apply at checkout
Finance from $3.74/mo — instant decisions. Learn more
🛡️30-Day Warranty
🚚Free Ship $1,200+
🔧Expert Support
General
ModelBGears b-Draco5907
Case TypeMid Tower ATX
ColorBlack
Chassis Thickness0.5 mm Steel
Materials & Panels
Front Panel MaterialABS + SPECTRUM RGB LED Strip Light
Left Side Panel5mm Tempered Glass
Right Side PanelSteel
Dimensions
Internal Dimensions (W × D × H)205 × 395 × 470 mm
Overall Dimensions (W × D × H)205 × 435 × 485 mm
Motherboard Compatibility
Supported Form FactorsE-ATX, ATX, Micro-ATX, Mini-ITX
Drive Bays
3.5" HDD Bays3
2.5" SSD Bays2
Expansion & PSU
Expansion Slots7
PSU CompatibilityStandard ATX / ATX12V (PSU Not Included)
PSU CageSeparate / Isolated PSU Cage for Better Cooling
I/O & Front Panel Ports
USB PortsUSB 3.0 × 1, USB 2.0 × 2
Audio PortsMic In / HD Audio Out
I/O Cable Length700 mm
Cooling & Fan Support
Front Fan Support3 × 120mm or 3 × 140mm (Optional)
Top Fan Support2 × 120mm (Optional)
Rear Fan Support1 × 120mm (Optional)
PSU Cover Fan Support3 × 120mm (Optional)
CPU Cooler Max Height160 mm
VGA Card Max Length370 mm
Liquid Cooling Support
Front RadiatorUp to 240mm
Top RadiatorUp to 240mm
Rear RadiatorUp to 120mm
Dust Filtration
Top Dust FilterMagnetic Dust Filter
Bottom Dust FilterPVC Duct Filter
Lighting
RGB Lighting Modes14 Total: 6 RGB Flow Modes, 7 Solid Color Modes, 1 LED Off Mode
RGB ControlFront Panel RGB-LED Control Button
LED StripSPECTRUM RGB LED Strip (Front Panel)

FEATURE

  • RGB LED with multi-mode setting Front Panel
  • Access to 14 RGB lighting modes via conveniently located RGB-LED control button on the front panel:
    6 RGB flow lighting modes / 7 solid color modes / 1 LED OFF mode
  • 5mm thickness Tempered Glass Side Window Panel
  • Separate Power Supply cage for better cooling
  • Support E-ATX/ATX/Micro-ATX/mini-ITX motherboards
  • Support WaterCooling: Front-240mm, Top-240mm, Rear-120mm

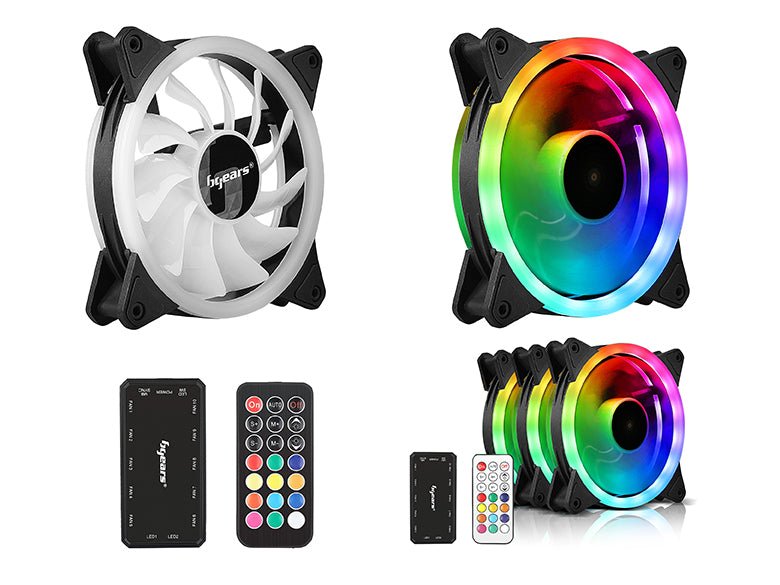

  • Includes:
    3 x 120mm ARGB Fan
    1 x 10 Fan Port Hub
    1 x RGB LED Strip
    1 x Remote Controller
    Power Supply is not included.

_____________________________________________________________________________________________

COMPONENT SUPPORT

  • CPU Cooler Max Height: 160mm
  • VGA Card Max Length: 370mm
    (When the front panel is installed with water cooling, the length of the graphics card is limited to 310mm)
  • The power supply can support within 190mm
  • Motherboards: E-ATX/ATX/Micro-ATX/mini-ITX

_____________________________________________________________________________________________

FAN POSITION AND AIRFLOW

FAN POSITION

  • FRONT: 3 x 120mm or 3 x 140mm (optional)
  • TOP: 2 x ARGB 120mm (included)
  • Rear: 1 x ARGB 120mm (included)
  • PSU Cover: 13 x 120mm (optional)
  • 1 x RGB LED Strip (included)

RADIATOR

  • FRONT: 240mm Radiator
  • TOP: 240mm Radiator
  • Rear: 120mm Radiator
  • RGB LED Strip x 1 included

____________________________________________________________________________________________

b-Draco5907 RGB
Case Type: Middle Tower ATX
Chassis Thickness: 0.5mm
Motherboards: E-ATX/ATX/Micro-ATX/mini-ITX
Dimension (Internal): 205(W) x 395(D) x 470(H)mm
Dimension (Overall): 205(W) x 435(D) x 485(H)mm
Front Panel: ABS + SPECTRUM RGB LED strip light
Side Panel Left: Tempered Glass
Side Panel Right: Steel
Drive Bay HDD (3.5'): 3
Drive Bay SSD (2.5'): 2
I/O Port: USB 3.0 x 1 / USB 2.0 x 2 / Mic / HD AUDIO, Cable Length 700mm
Fan Front: 120mm x 3 or 140mm x 3 (Optional)
Fan Top: 2 x ARGB 120mm (Included)
Fan Rear: 1 x ARGB 120mm (Included)
Fan PSU Chamber: 120mm x 3 (Optional)

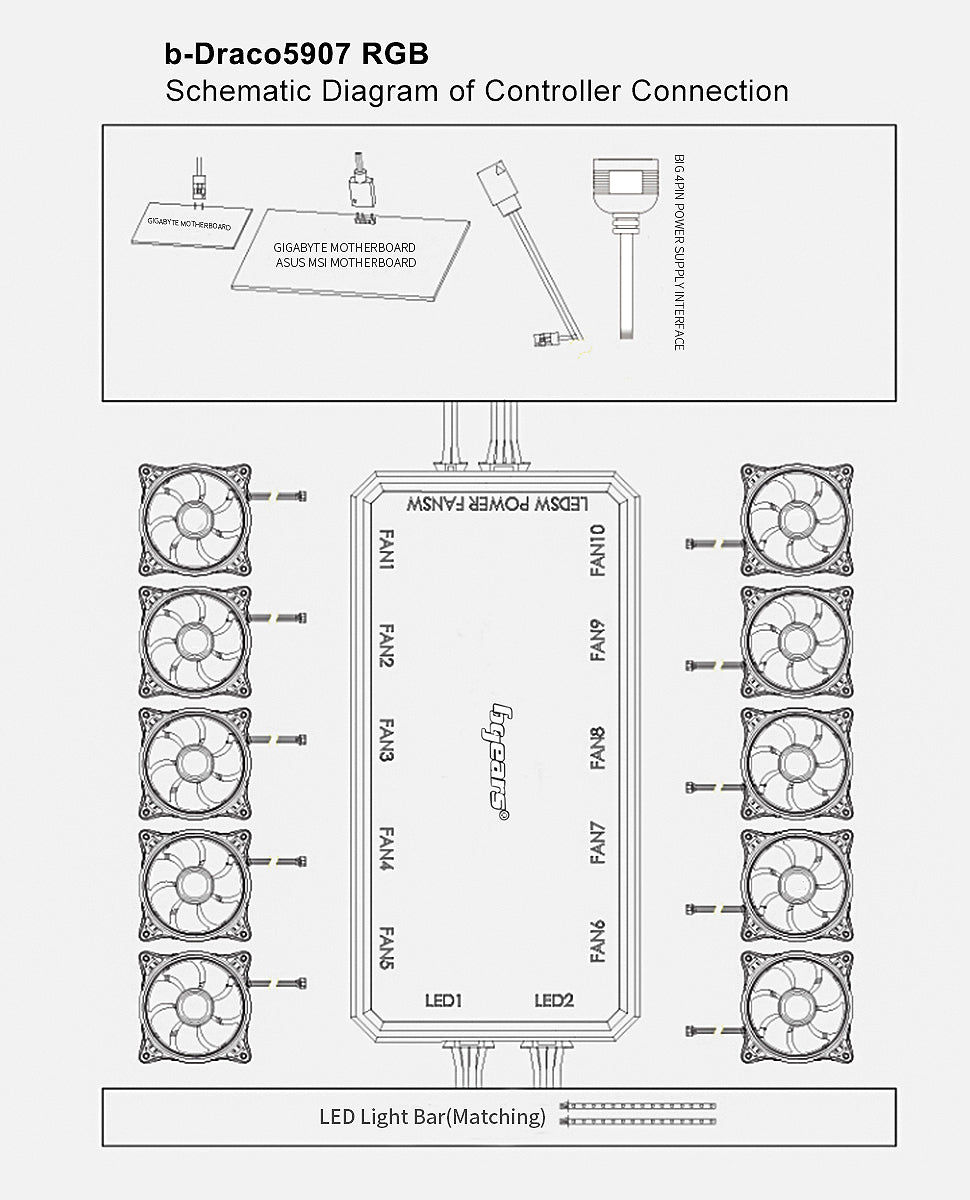

Fan Hub: 10 Port Fan Hub (Included)
Controller: 1 x Fan Remote Controller (Included)
RGB LED Strip: 1 x 14 inch long RGB LED Strip (Included)
CPU Cooler Height: Max. 160mm
VGA Card Length: Max. 393mm (Maximum 370mm with front fans installed)
Water Cooling: front 240mm, top 240mm, rear 120mm
Dust Cover: top magnet dust filter, bottom PVC duct filter
Expansion Slots: 7
PSU Compatibility Standard ATX / ATX12V (Power Supply is not included.)
