Asiahorse FS-S001 RGB Fan (5 Pack)

Computer Fans● Out of Stock
$72.86
Qty
Flexible Payment Options
4 interest-free payments of $18.21 — Learn more
As low as $6.07/mo — Learn more
Lease-to-own from $1.40/wk — no credit needed. Apply at checkout
Finance from $3.03/mo — instant decisions. Learn more
🛡️30-Day Warranty
🚚Free Ship $1,200+
🔧Expert Support

Technical Specifications

General
ModelAsiahorse FS-S001
BrandAsiaHorse
Pack Quantity5-Pack
ASINB08174WFGL
ColorWhite
MaterialFull-Frame Acrylic (Transparent / Frosted)
Compatible DevicesDesktop PC Cases, Radiators / Liquid Cooling Systems
Physical Dimensions
Fan Size120 mm
Frame Dimensions120 mm × 120 mm × 30 mm (Square Acrylic Frame)
Frame Thickness30 mm
Frame Side Length4 × 120 mm (square perimeter)
Light Frame Section — Front10 mm (1 cm), 90° angle design
Light Frame Section — Middle4 mm (0.4 cm)
Light Frame Section — Back8 mm (0.8 cm)
Cable Length550 mm
Fan Performance
Speed Range800 – 1800 RPM (PWM controlled)
Airflow57 CFM
Static Pressure1.98 mmH₂O
Bearing TypeHydraulic Bearing
Blade Count9 Blades (Nine Leaves Design)
Blade MaterialFine Transparent / Frosted
Electrical
Fan Connector (PWM)4-Pin PWM
ARGB Connector5V 3-Pin ARGB
Fan-to-Hub Connector6-Pin Proprietary Interface
Hub Power InputSATA Power
ARGB Voltage5V DC
Lighting

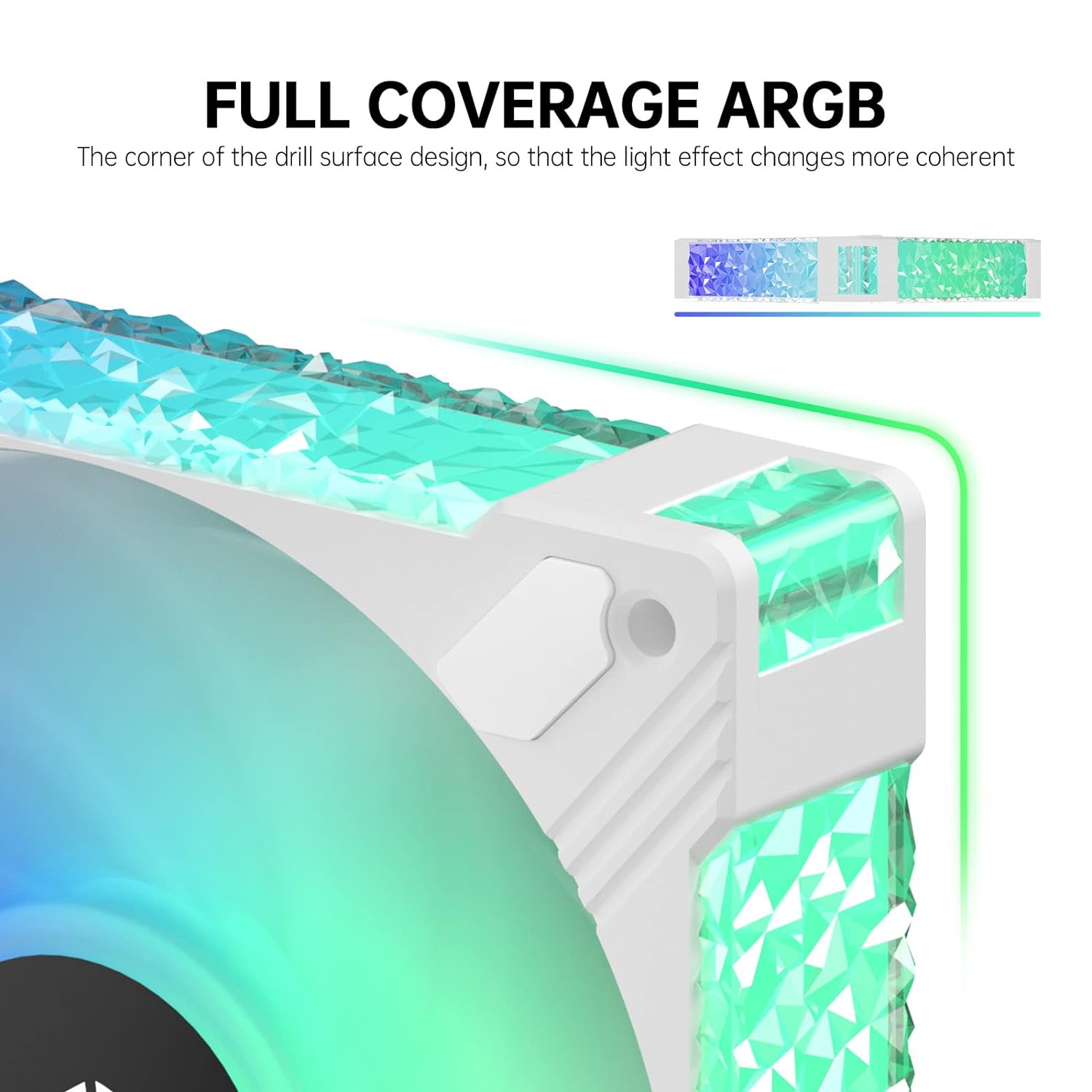

LED TypeARGB (Addressable RGB)
LED Count (Per Fan)20 (frame) + 8 (blade) = 28 Addressable LEDs

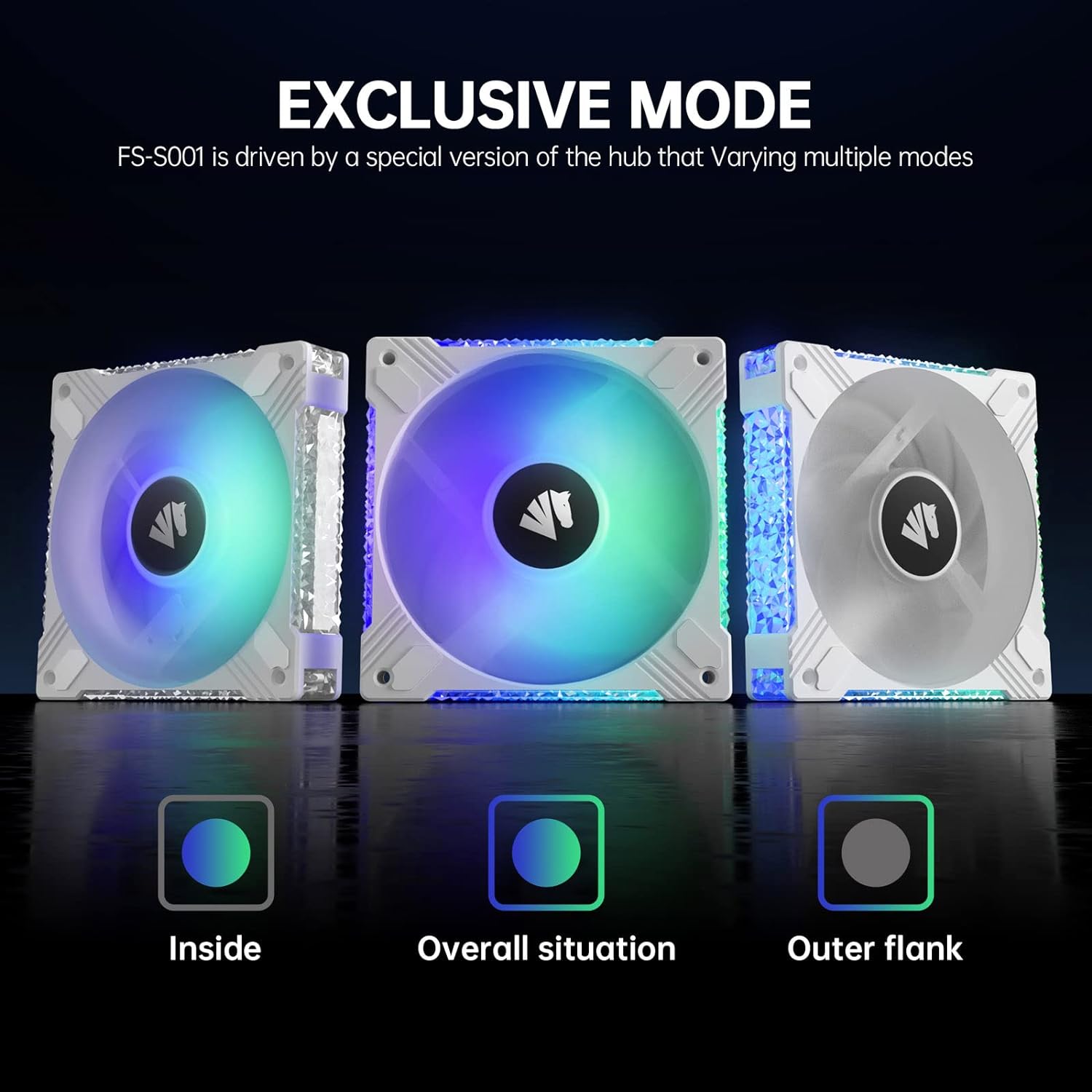

LED ZonesInternal (Blades) & External (Frame) — independently controllable

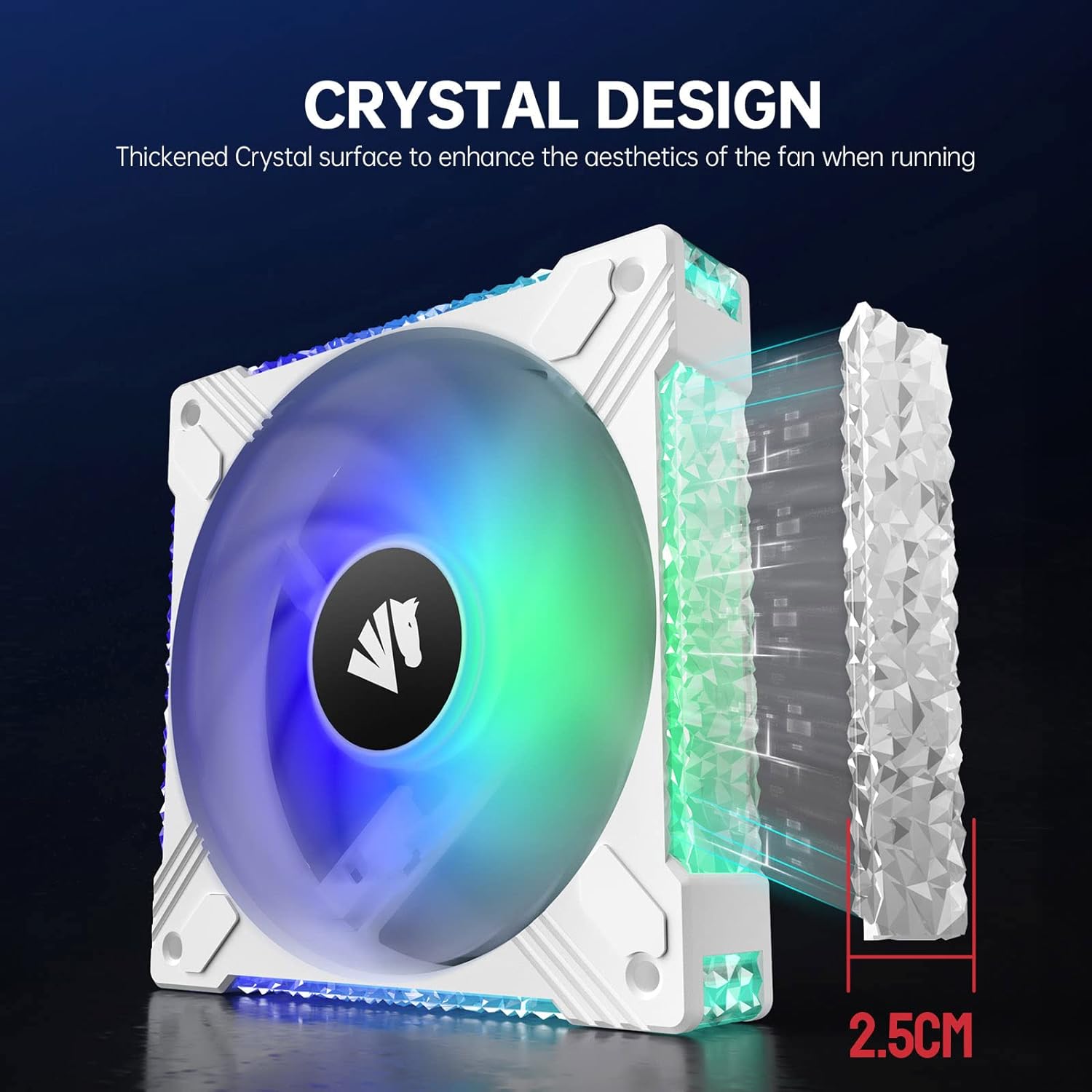

Frame DesignThree-Ring Square Acrylic Frame
Lighting EffectsWave, Full Light, RGB Spectrum, Flow, Ripple, Pulse, Blink, Rainbow 2.0, Off, Internal Only, External Only, Half-Light (Half-Moon Eclipse), Series Light
Motherboard RGB SyncYes — 5V ARGB Header (3-Pin)
Compatible SoftwareASUS Aura Sync, Gigabyte RGB Fusion, MSI Mystic Light Sync
Controller & Remote
Controller Type2.4G PWM Sync HUB with Remote (6-Pin Interface)
Remote Frequency2.4 GHz RF
Controller FunctionsFan speed control, lighting effect selection, brightness adjustment, effect speed
Control ModesAnalog (Remote/Hub) or Motherboard Sync (5V ARGB + PWM)
Hub CompatibilityProprietary — must use included controller with included fans only
Series Light InstallationFans must be installed in sequence per included manual for chain lighting effects
Package Contents

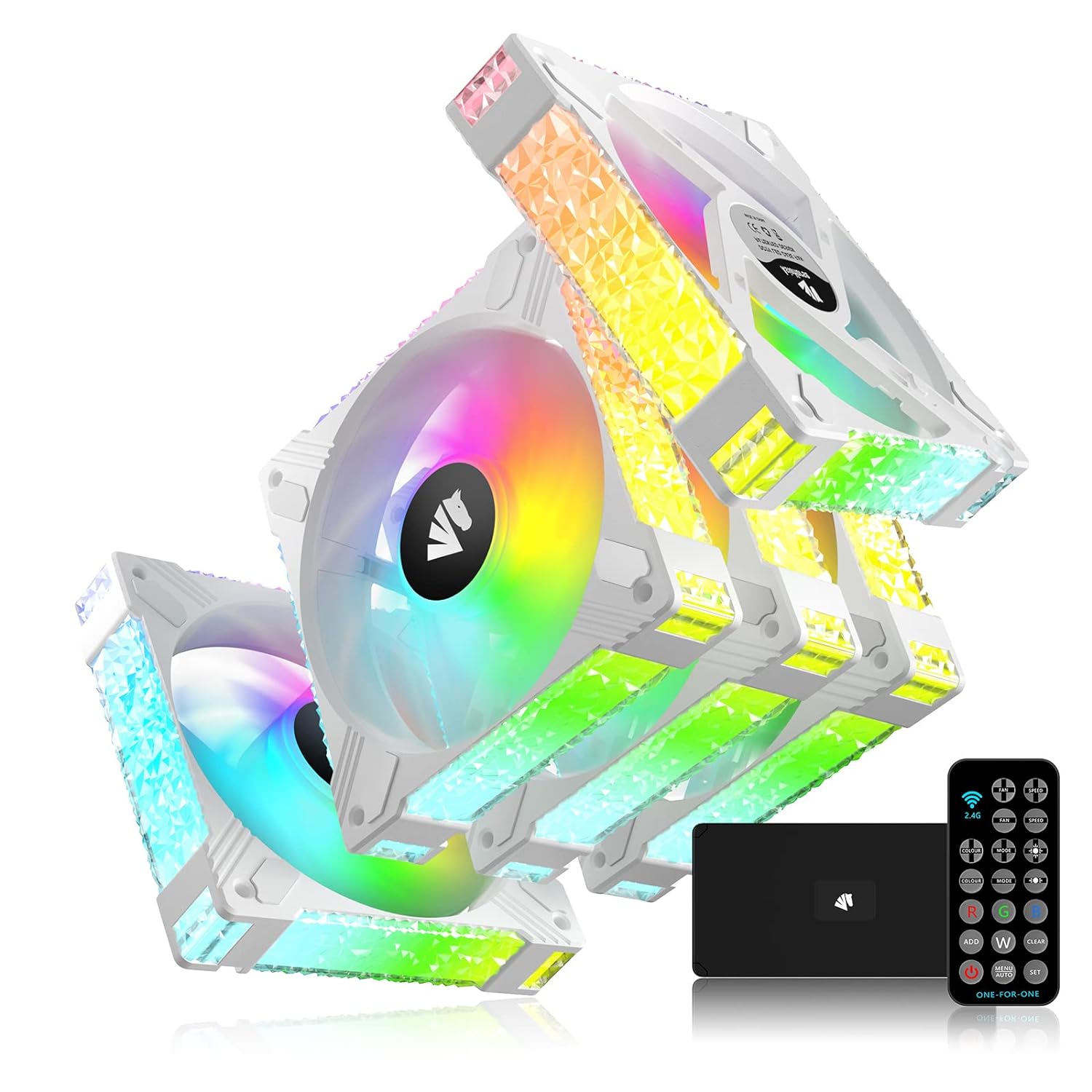

Fans Included5 × 120mm FS-S001 Full Frame Acrylic Case Fan (6-Pin)
Hub & Remote1 × 2.4G PWM Sync HUB & Remote (6-Pin)
PWM Cable1 × PWM Cable
Sync Motherboard Cable1 × Sync Motherboard Cable
Power Cable1 × SATA Power Cable
Screws20 × Mounting Screws
