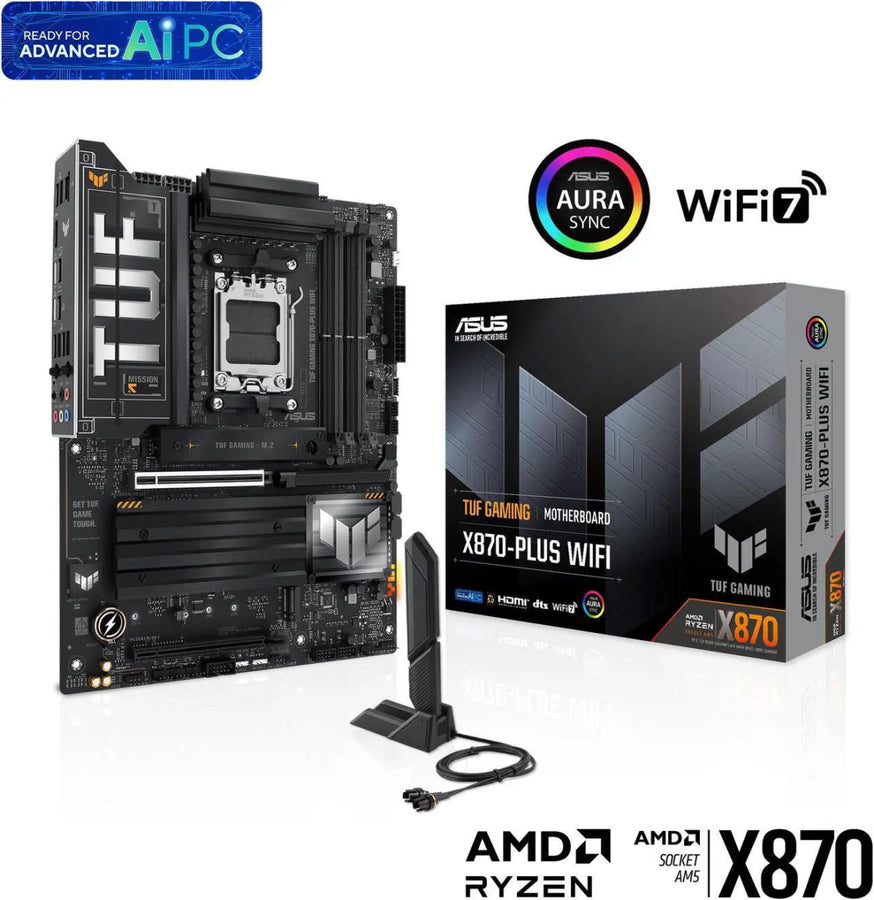

ASUS TUF Gaming X870-PLUS WiFi 7 (DDR5) (AMD) (AM5) (TDP 170W) (M-ATX)
Motherboard● In Stock
$232.81
Flexible Payment Options
ShopPay
Afterpay
4 interest-free payments of $58.20 — Learn more
affirm
As low as $19.40/mo — Learn more
ACIMA
Lease-to-own from $4.47/wk — no credit needed. Apply at checkout
PAY
TOMORROW
TOMORROW
Finance from $9.70/mo — instant decisions. Learn more
30-Day Warranty
Free Ship $1,200+
Expert Support
| General | |
|---|---|
| Model | TUF GAMING X870-PLUS WIFI |
| Part Number | 90MB1IU0-M0EAY0 / 90MB1IU0-M0AAY0 |
| Form Factor | ATX |
| Dimensions | 305 × 244 mm |
| PCB Layers | 8-Layer |
| Color | Black |
| Processor & Chipset | |
| CPU Socket | AMD Socket AM5 (LGA 1718) |
| Chipset | AMD X870 |
| Supported CPUs | AMD Ryzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series Desktop Processors |
| Memory | |
| Memory Type | DDR5 |
| DIMM Slots | 4 × 288-pin DIMM |
| Max Memory | 256 GB (192 GB validated; up to 48 GB per slot) |
| Memory Speed | Up to 8000+ MT/s (OC) with Ryzen 9000 / 8000 / 7000 Series |
| Memory Architecture | Dual Channel |
| ECC Support | ECC and Non-ECC, Un-buffered DIMM; On-Die ECC supported |
| OC Profiles | AMD EXPO™, ASUS Enhanced Memory Profile (AEMP) |
| Expansion Slots | |
| PCIe x16 Slot 1 | PCIe 5.0 x16 (Ryzen 9000/7000) / PCIe 4.0 x8/x4 (Ryzen 8000) — SafeSlot |
| PCIe x16 Slot 2 | PCIe 4.0 x16 (supports x4 mode) — AMD X870 Chipset |
| Total PCIe Slots | 2 × PCIe x16 |
| Bandwidth Note | PCIe 5.0 x16 shares bandwidth with M.2_2 (drops to x8 when M.2_2 active); PCIe 4.0 x16 disabled when M.2_4 active |
| Storage | |
| M.2 Slots Total | 4 × M.2 (Key M) |
| M.2_1 | Type 2280 — PCIe 5.0 x4 (Ryzen 9000/7000) / PCIe 4.0 x4 (Ryzen 8000) |
| M.2_2 | Type 2280 — PCIe 5.0 x4 (Ryzen 9000/7000); Not supported on Ryzen 8000 |
| M.2_3 | Type 2280 — PCIe 4.0 x4 (AMD X870 Chipset) |
| M.2_4 | Type 2242/2260/2280/22110 — PCIe 4.0 x4 (AMD X870 Chipset) |
| SATA Ports | 2 × SATA 6 Gb/s |
| RAID Support | PCIe RAID 0/1/5/10 and SATA RAID 0/1 via AMD RAIDXpert2 (RAID 5 requires Ryzen 9000) |
| Display Output | |
| HDMI | 1 × HDMI 2.1 (4K@60Hz) — requires CPU with integrated graphics |
| USB4 Display Output | 2 × USB4 Type-C® — max 4K@60Hz via DisplayPort 1.4a |
| USB Connectivity — Rear I/O | |
| Total Rear USB Ports | 10 Ports |
| USB4 (40 Gbps) | 2 × USB4® 40Gbps (Type-C®) |
| USB 3.2 Gen 2 (10 Gbps) | 3 × USB 10Gbps (Type-A) |
| USB 3.2 Gen 1 (5 Gbps) | 4 × USB 5Gbps (Type-A) |
| USB 2.0 | 1 × USB 2.0 (Type-A) — also serves as BIOS FlashBack™ port |
| USB Connectivity — Front Panel Headers | |
| Total Front USB Ports | 7 Ports |
| USB 3.2 Gen 2x2 (20 Gbps) Type-C | 1 × USB 20Gbps connector (Type-C®) with PD Fast Charge up to 30W (PD 3.0) |
| USB 3.2 Gen 1 (5 Gbps) Header | 1 × Header (supports 2 additional USB 5Gbps ports) |
| USB 2.0 Headers | 2 × Headers (supports 4 additional USB 2.0 ports) |
| Networking | |
| Ethernet | Realtek 2.5Gb Ethernet |
| Wi-Fi Standard | Wi-Fi 7 (IEEE 802.11be) — 2×2, 2.4 / 5 / 6 GHz |
| Wi-Fi Bandwidth | 160 MHz, up to 2.9 Gbps transfer rate |
| Bluetooth | Bluetooth 5.4 |
| Antenna | ASUS Wi-Fi Q-Antenna (tool-free) |
| LAN Protection | TUF LANGuard (advanced signal-coupling, surge/ESD protection) |
| Audio | |
| Audio Codec | Realtek ALC1220P |
| Channels | 7.1 Surround Sound |
| SNR — Line Out | 120 dB (Stereo) |
| SNR — Line In | 113 dB |
| Playback Resolution | Up to 32-Bit / 192 kHz |
| Audio Features | Audio Shielding, Dedicated Audio PCB Layers, Premium Audio Capacitors, TUF Gaming Audio Cover, Unique De-pop Circuit, Impedance Sensing, DTS Audio Processing |
| Rear Audio Jacks | 5 × 3.5mm (Line-Out, Line-In, Microphone, Rear Speaker, Subwoofer) |
| Power Delivery | |
| VRM Configuration | 16+2+1 Power Stages |
| Power Stage Rating | 80A SPS per stage |
| CPU Power Connectors | 2 × 8-pin +12V (ProCool) |
| Main Power Connector | 1 × 24-pin ATX |
| VRM Technology | DIGI+ VRM with real-time voltage control |
| Front Panel USB-C PD Output | 5V/9V max 3A, 12V max 2.5A, 15V max 2A (up to 30W, PD 3.0) |
| Rear USB4 Type-C PD Output | Max 5V/3A |
| Fan & Cooling Headers | |
| CPU Fan Header | 1 × 4-pin CPU Fan |
| CPU OPT Fan Header | 1 × 4-pin CPU OPT |
| AIO Pump Header | 1 × 4-pin AIO Pump (W_PUMP+) |
| Chassis Fan Headers | 4 × 4-pin Chassis Fan (7 total fan headers on board) |
| Cooling Software | Fan Xpert 4 with AI Cooling II |
| Thermal Sensor Header | 1 × Thermal Sensor Header |
| Heatsinks | Enlarged VRM Heatsinks (dual, non-heatpipe), M.2 Heatsinks (with Q-Latch), PCH Heatsink |
| Internal Connectors & Headers | |
| Addressable RGB (ARGB Gen 2) | 3 × Addressable Gen 2 Headers |
| Front Panel Audio | 1 × F_AUDIO Header |
| Front Panel System | 1 × 10-1 pin Front System Panel Header |
| Clear CMOS | 1 × Clear CMOS Header |
| Chassis Intrusion | 1 × Chassis Intrusion Header |
| COM Port | 1 × COM Port Header |
| BIOS | |
| BIOS Type | 256 Mb Flash ROM, UEFI AMI BIOS |
| BIOS Features | BIOS FlashBack™ (button + LED), CrashFree BIOS 3, EZ Flash 3, UEFI EZ Mode, MyHotkey, AI Overclocking Guide |
| Manageability | WOL, PXE |
| ASUS Special Features & Protection | |
| Protection | DIGI+ VRM, ESD Guards (+/-10kV air / +/-6kV contact), TUF LANGuard, Overvoltage Protection, SafeSlot, SafeDIMM, Stainless-Steel I/O |
| Q-Design Features | M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED (CPU/DRAM/VGA/Boot), Q-Slot |
| Q-LED Indicators | CPU (Red), DRAM (Yellow), VGA (White), Boot Device (Yellow-Green) |
| Overclocking Technologies | AI Overclocking, Dynamic OC Switcher, Core Flex, PBO Enhancement |
| Aura Sync | Yes — Addressable Gen 2 RGB |
| I/O Shield | Pre-mounted Stainless Steel (corrosion-resistant, 72-hour fog/salt tested) |
| Software | |
| ASUS Software | Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 4 (AI Cooling II), ASUS DriverHub, AI Advisor, GlideX, USB Wattage Watcher, TurboV Core, TUF GAMING CPU-Z |
| Bundled Software | DTS Audio Processing, Norton 360 for Gamers (60-day trial), WinRAR (40-day trial) |
| OS Support | Windows 11 |
| In the Box | |
| Cables | 2 × SATA 6Gb/s Cables |
| Accessories | 1 × ASUS Wi-Fi Q-Antenna, 2 × M.2 Rubber Packages, 1 × M.2 SSD Screw Package, 1 × TUF GAMING Sticker |
| Documentation | 1 × Quick Start Guide |
The ASUS TUF Gaming X870-PLUS WiFi 7 (DDR5) (AMD) (AM5) (TDP 170W) (M-ATX) is a Common-tier custom gaming PC built and tested by TieredUp Tech in Orange, TX. This machine delivers 100+ FPS in esports titles like Fortnite, Valorant, and Apex Legends at 1080p ultra settings — making it the perfect entry point into PC gaming.
This build is optimized for Fortnite, Valorant, Apex Legends, Minecraft, League of Legends, and CS2. Whether you are jumping into your first PC gaming experience or upgrading from an older system, the ASUS TUF Gaming X870-PLUS WiFi 7 (DDR5) (AMD) (AM5) (TDP 170W) (M-ATX) delivers exceptional performance straight out of the box.
Every Common-tier BitCrate gaming PC is hand-assembled, stress-tested, and quality checked by our technicians before shipping. We stand behind every build with a 30-day warranty and ongoing technical support from our team in Orange, TX.
Priced at $232.81 and in stock now, the ASUS TUF Gaming X870-PLUS WiFi 7 (DDR5) (AMD) (AM5) (TDP 170W) (M-ATX) represents outstanding value for its performance tier. Order today and experience the TieredUp Tech difference — premium gaming performance at every price point.
Specifications at a glance:
• Build Tier: Common
• Built & tested in Orange, TX
• 30-day warranty included
• Free shipping on orders over $1,200
