CLICK TO EXPAND
| General | |
|---|---|

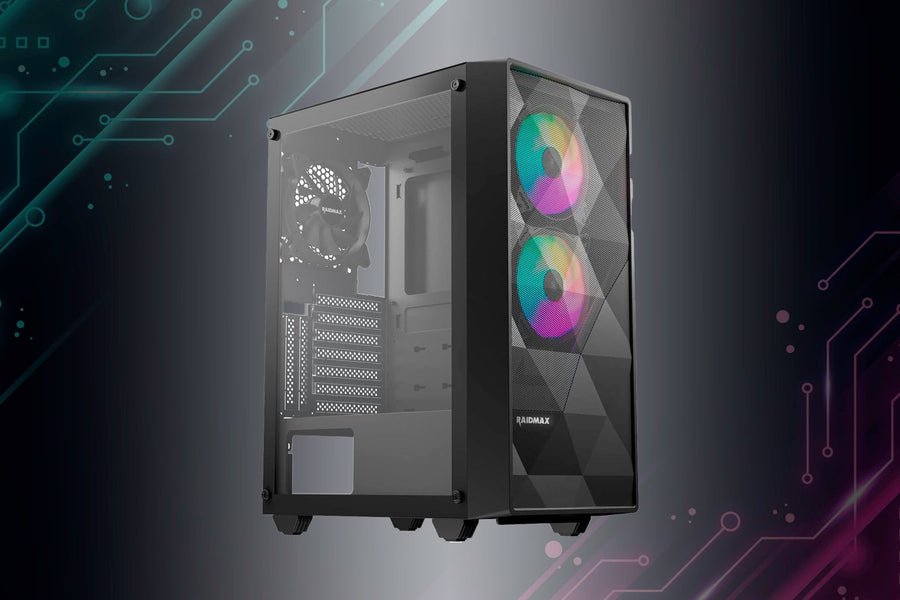

| Model | Raidmax Meshian X603 |
| Case Type | ATX Mid Tower |
| Color Options | Black, White |
| Front Panel Design | Wavy large-area mesh with aluminum metal logo |
| Side Panel | 4mm Tempered Glass (slide side-path, tool-less) |
| Dimensions & Form Factor | |
|---|---|
| External Dimensions | 22" × 12" × 21" (558mm × 305mm × 533mm) |
| Chassis Interior Length | 420mm |
| Motherboard Compatibility | |
|---|---|
| Supported Form Factors | E-ATX, ATX, Micro-ATX, Mini-ITX |
| Drive & Expansion | |
|---|---|
| Storage Support | 2× SSD + 1× HDD or 1× SSD + 2× HDD (easy-detach brackets) |
| Max GPU Length | 400mm |
| Max CPU Cooler Height | 165mm |
| PSU Support | Standard PS2 / ATX PSU (Bottom Mounted) |
| Fan Support | |
|---|---|
| Front | 120mm × 3 or 140mm × 3 |
| Top | 120mm × 3 or 140mm × 2 |
| Rear | 120mm × 1 |
| PSU Chamber | 120mm × 2 |
| Motherboard Tray Side | 120mm × 2 |
| Pre-Installed Fans | 4× ARGB 120mm (front × 3 + rear × 1) |
| Radiator / Liquid Cooling Support | |
|---|---|
| Front | 120mm / 140mm / 240mm / 280mm / 360mm |
| Top | 120mm / 140mm / 240mm / 280mm / 360mm |
| Rear | 120mm |
| Motherboard Tray Side | 120mm / 240mm |
| Max Front Radiator | 360mm |
| I/O Panel | |
|---|---|
| USB | 2× USB 3.0 Type-A + 1× USB 3.2 Gen 2 Type-C |
| Audio | HD Audio In / Out (3.5mm) |
| Buttons | Power Button + ARGB Lighting Control Button |
| I/O Location | Top-mounted |
| Lighting | |
|---|---|
| RGB Type | ARGB (Addressable RGB) |
| ARGB Header | 5V 3-pin ARGB (motherboard sync compatible) |
| RGB Hub | Yes — supports up to 6 ARGB devices |
| Lighting Control | I/O panel button or motherboard software sync |
| Dust Filters & Maintenance | |
|---|---|
| Dust Filter Locations | Top and Bottom (removable / magnetic) |
| Top Filter Tab | Rubber logo tab on magnetic filter for easy removal |
| M/B Tray Filter | Yes — rubber logo tab filter on motherboard side tray |
