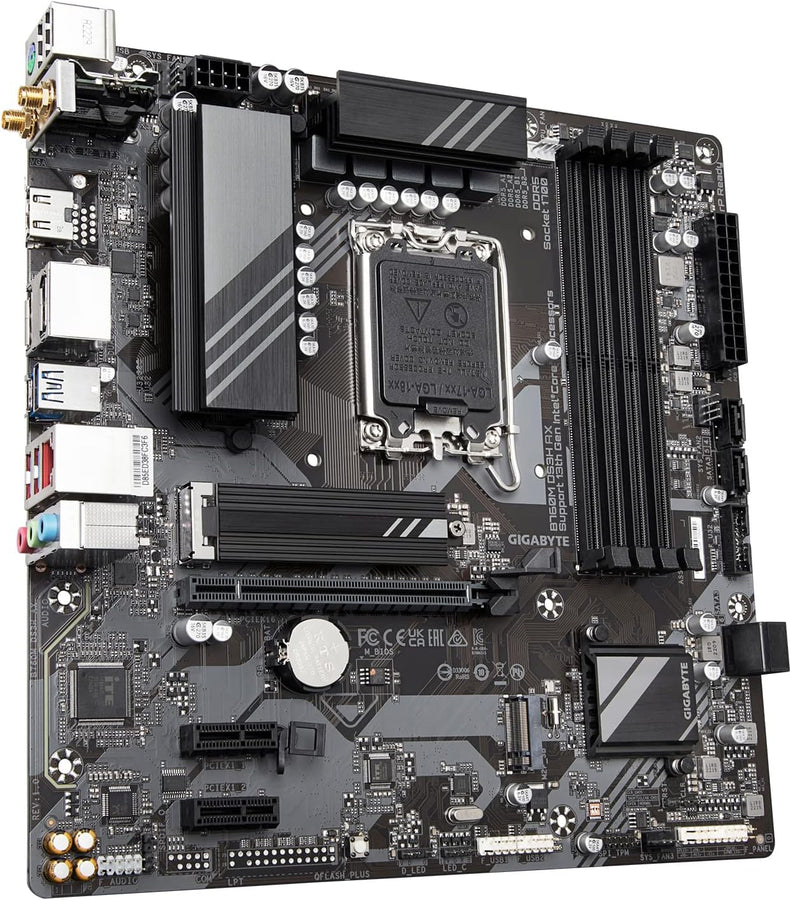

Placa base GIGABYTE B760M DS3H AX DDR5 B760M CLICK TO EXPAND
(Intel) GIGABYTE B760M DS3H AX LGA1700 DDR5 Motherboard
(Intel) GIGABYTE B760M DS3H AX LGA1700 DDR5 Motherboard — side view
(Intel) GIGABYTE B760M DS3H AX LGA1700 DDR5 Motherboard — rear view
(Intel) GIGABYTE B760M DS3H AX LGA1700 DDR5 Motherboard — detail view
(Intel) GIGABYTE B760M DS3H AX LGA1700 DDR5 Motherboard — close-up
(Intel) GIGABYTE B760M DS3H AX LGA1700 DDR5 Motherboard — angle view
GTech

Placa base GIGABYTE B760M DS3H AX DDR5 B760M

Placas base● Out of Stock
$142.99
Qty
Flexible Payment Options
4 interest-free payments of $35.74 — Learn more
As low as $11.91/mo — Learn more
Lease-to-own from $2.74/wk — no credit needed. Apply at checkout
Finance from $5.95/mo — instant decisions. Learn more
🛡️30-Day Warranty
🚚Free Ship $1,200+
🔧Expert Support
Overview
ModelGIGABYTE B760M DS3H AX (Rev. 1.x)
Form FactorMicro-ATX (244 x 244 mm)
PCB ColorBlack
SeriesUltra Durable
Processor
SocketIntel LGA 1700
Supported CPUsIntel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron
ChipsetIntel B760 Express
CPU Power Connector1 x 8-pin ATX 12V (Solid Pin)
Memory
Memory TypeDDR5
DIMM Slots4 x DDR5 DIMM
Memory ArchitectureDual Channel
Max Capacity192 GB (4 x 48 GB)
Native Speed (i9/i7 13th Gen)DDR5-5600 / 5200 / 4800 / 4400 MT/s
Native Speed (i5/i3 13th & 12th Gen)DDR5-4800 / 4400 MT/s
OC Speed SupportDDR5-5200 ~ DDR5-7600 (O.C.) and beyond
XMP SupportXMP 3.0
ECC SupportECC Un-buffered DIMM, Non-ECC Un-buffered DIMM
Power Delivery
VRM Design6+2+1 Hybrid Digital VRM Phases
Vcore Phases6 phases dedicated to Vcore
ATX Main Power1 x 24-pin ATX
PCB MaterialServer-grade mid-loss / low-loss PCB (PCIe 4.0 Ready)
Expansion Slots
PCIe x16 Slot1 x PCIe 4.0 x16 (CPU) — PCIe EZ-Latch
PCIe x1 Slots2 x PCIe 3.0 x1 (Chipset)
Storage
M.2 Slots2 x M.2 Socket 3 (M-Key, Type 2280)
M.2 InterfacePCIe 4.0 x4 / x2 NVMe (both slots)
M.2 Slot 1 (M2A_CPU)CPU-connected, PCIe 4.0 x4 — with M.2 Thermal Guard
M.2 Slot 2 (M2P_SB)Chipset-connected, PCIe 4.0 x4
SATA Ports4 x SATA 6Gb/s
RAID SupportRAID 0, 1, 5, 10 (SATA)
Networking & Wireless
LAN ControllerRealtek 2.5 GbE (10/100/1000/2500 Mbps)
Wi-Fi StandardWi-Fi 6E 802.11ax (2.4 / 5 / 6 GHz)
Wi-Fi Chipset (PCB Rev. 1.0)AMD Wi-Fi 6E RZ608 (MT7921K)
Wi-Fi Chipset (Later Revisions)Intel Wi-Fi 6E AX210
Max Wi-Fi SpeedUp to 2.4 Gbps
BluetoothBluetooth 5.2 / 5.3
Antenna2 x SMA antenna connectors (2T2R)
Rear I/O
Video Outputs1 x HDMI, 2 x DisplayPort
USB Type-C1 x USB 3.2 Gen 2 (10 Gbps)
USB 3.2 Gen 1 (Type-A)3 x USB 3.2 Gen 1 (5 Gbps)
USB 2.0 (Type-A)2 x USB 2.0 / 1.1
PS/21 x PS/2 Keyboard / Mouse combo
LAN Port1 x RJ-45 (2.5 GbE)
Audio Jacks3 x 3.5mm Audio Jacks
Q-Flash Plus ButtonYes — update BIOS without CPU, RAM, or GPU installed
Internal Headers & Connectors
USB 3.2 Gen 1 Header1 x (19-pin, supports 2 ports at 5 Gbps)
USB 2.0 Headers2 x (supports 4 ports via Chipset + 2 USB 2.0 Hubs)
CPU Fan Header1 x CPU_FAN (PWM / DC)
System Fan Headers3 x SYS_FAN (PWM / DC, up to 24W / 12V × 2A each)
Addressable LED Header1 x ARGB (3-pin, 5V)
RGB LED Header1 x RGB (4-pin, 12V)
Front Panel Audio Header1 x HD Audio
S/PDIF Out Header1 x S/PDIF Out
Front Panel Header1 x (Power / Reset / LED)
TPM Header1 x (SPI — for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0)
Clear CMOS Jumper1 x CLR_CMOS
Reset Jumper1 x Reset
Audio
Audio Codec8-Channel (7.1) HD Audio
Audio FeaturesAudio Noise Guard, High-End Audio Capacitors
Fan & Thermal
Fan ControlSmart Fan 6 — Multiple Temperature Sensors, Hybrid Fan Headers, FAN STOP
Fan Header TypePWM and DC modes supported
M.2 Thermal GuardYes — 1 x M.2 Thermal Guard (M2A_CPU slot)
RGB & Personalization
Onboard RGBNo onboard RGB LEDs
RGB SoftwareRGB Fusion 2.0 (via GIGABYTE Control Center)
LED Strip SupportAddressable LED (ARGB 3-pin) & RGB LED (4-pin) strips
BIOS
BIOS TypeAMI UEFI BIOS
Q-Flash PlusYes — USB BIOS flash without CPU, memory, or GPU
BIOS FeaturesEasy Mode, My Favorites, Storage Info, Changelog, Load Line Curve, PerfDrive, DDR5 XMP Booster
Performance ModesMax Turbo, Optimization, Spec Enhance, E-Core Disable (PerfDrive, 13th Gen)
Software
Utility SuiteGIGABYTE Control Center (GCC)
OS SupportWindows 10 (64-bit), Windows 11 (64-bit)
In the Box
Accessories Included2 x SATA cables, Wi-Fi antenna, Rear I/O plate
Especificaciones de su nuevo equipo
Marca Gigabyte
