CLICK TO EXPAND
| GENERAL | |
|---|---|
| Product Name | O11D MINI V2 |
| Model | O11DMIV2X BLACK / O11DMIV2W WHITE / O11DMIV2FX BLACK / O11DMIV2FW WHITE |
| Color | Black / White |
| Warranty | 1 Year (Case: 1 Year, Fans: 3 Years for Flow edition) |
| DIMENSIONS & WEIGHT | |
| Dimensions | 423.6mm x 273.3mm x 391.95mm (DxWxH) |
| Volume | 45.38L |
| MATERIALS & CONSTRUCTION | |
| Materials | 2mm Aluminum Panel / 1mm Mesh Panel / 4.0mm Tempered Glass |
| MOTHERBOARD COMPATIBILITY | |
| Motherboard Support | Back-Connect ATX / ATX / Micro-ATX / Mini-ITX |
| Expansion Slots | 5 |
| COOLING SUPPORT | |
| Fan Support | Top: 120mm x 3 or 140mm x 2 / Side: 120mm x 2 / Bottom: 120mm x 3 / Rear: 120mm x 1 |
| Included Fans | N/A (Standard) / Side: Reverse blade 120mm PWM fan x2, Bottom: Reverse blade 120mm PWM fan x3 (Flow edition) |
| LIQUID COOLING SUPPORT | |
| Radiator Support | Top: 240mm / 280mm / 360mm (Note: 280mm radiator requires mounting motherboard one slot lower) / Side: 240mm |
| GPU & EXPANSION | |
| GPU Length Clearance | 400 mm |
| CPU Cooler Height Clearance | 160 mm |
| STORAGE | |
| Storage | Drive Cage: 2.5" SSD x 2 or 3.5" HDD x 2 / Behind MB Tray: 2.5" SSD x 2 |
| FRONT PANEL I/O & CONNECTIVITY | |
| I/O Ports | USB 3.0 x 2 / USB 3.2 Type C x 1 / Audio x 1 / Power Button x 1 |
| DUST FILTRATION | |
| Dust Filter | Bottom x 1 |

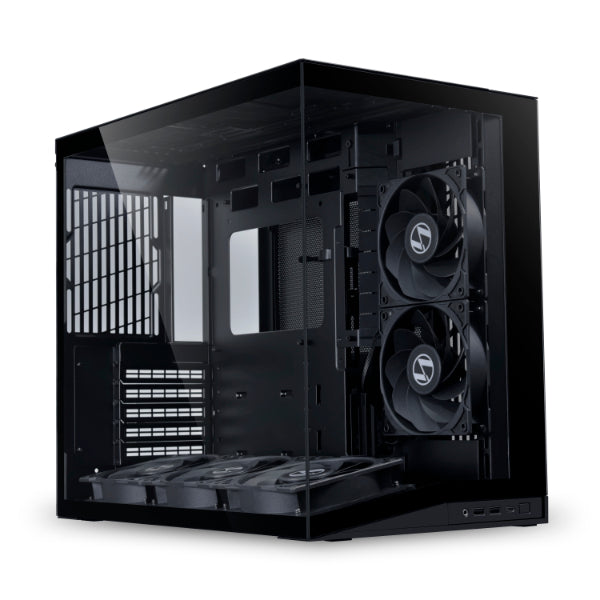

The LIAN LI O11D MINI V2 Flow is a black gaming case sized at 423.6mm x 273.3mm x 391.95mm, built to house ATX motherboards and ATX power supplies. This Flow edition includes five 120mm PWM reverse blade fans pre-installed: two on the side and three on the bottom, giving your build immediate airflow out of the box.
The case supports graphics cards up to 400mm long, CPU coolers up to 160mm tall, and radiators sized 360mm at the top or 240mm on the side. Front panel connectivity includes two USB 3.0 ports and one USB 3.2 Type C port, with additional fan mounting available at the top, rear, and side positions for further cooling expansion as your build requires.
