CLICK TO EXPAND
| General | |
|---|---|

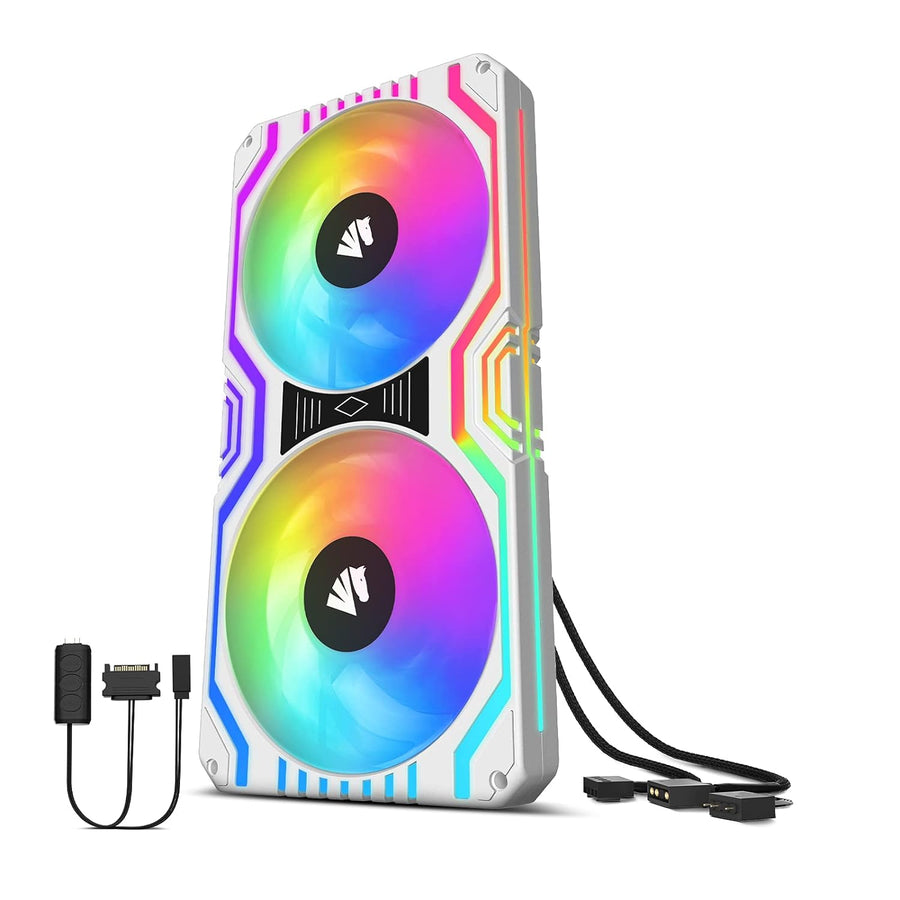

| Brand | AsiaHorse |
| Model | Matrix-White 48 ARGB 240MM |
| Model Number | MATRIX-240MM |
| ASIN | B08CXLP2H9 |
| Color | White |
| Frame Material | Plastic |
| Application | Desktop PC Case / CPU Liquid Cooling System |
| Manufacturer | Asiahorse (Shenzhen) Industry Co., Ltd. |
| Physical Dimensions | |
| Frame Configuration | All-in-One Integrated Square Frame |
| Total Assembly Size | 240 mm |
| Individual Fan Size | 120 mm x 120 mm |
| Number of Fans | 2 × 120 mm (integrated in single frame) |
| Fan Frame Design | Square (maximizes area coverage and airflow) |
| Fan Performance | |
| Fan Speed Range | 800 – 1800 RPM (PWM controlled) |
| Max Airflow | 66.5 CFM |
| Noise Level | 16 – 34.3 dB(A) |
| Speed Control | PWM (4-pin) — motherboard auto-adjustable |
| Cooling Type | Air Cooling |
| Electrical | |
| Fan Voltage | 12 V DC (4-pin PWM) |
| ARGB Voltage | 5 V (3-pin ARGB) |
| PWM Connector | 4-pin (integrated hub output) |
| ARGB Connector | 5V 3-pin (ARGB / ARGB MB header) |
| Motor & Bearing | |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Motor Type | Multiple new-design motors in series (integrated PWM chip) |
| EMI Noise Suppression | Built-in PWM integrated chip actively eliminates motor electromagnetic noise |
| Fan Blade Design | Guide groove with arc-surface machining for increased air intake and reduced intake noise |
| RGB Lighting | |
| LED Type | Addressable RGB (ARGB) |
| Total LED Count | 48 independently-controlled addressable RGB LEDs |
| LEDs per Fan | 24 addressable LEDs per 120 mm fan |
| LED Voltage | 5 V |
| Lighting Structure | Matrix structure — cyclic bearing light effect with visible fade from all angles |
| Color Customization | Full spectrum — individually addressable per LED |
| Compatibility & Sync | |
| RGB Sync Support | Motherboard ARGB header (5V 3-pin) or included analog controller |
| MB Sync Ecosystems | ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, ASRock Polychrome Sync |
| Fan Use Cases | PC case fan, CPU liquid cooler radiator fan |
| CPU Type Compatibility | All (universal) |
| Design & Noise Reduction | |
| Anti-Vibration Pads | 4 × corner anti-vibration rubber gaskets (sound-absorbing) |
| Frame Integration | Single integrated square frame housing both fans — reduces loss of air volume and air pressure |
| Air Channel Design | Strong 3D air channel for chassis; maximizes area coverage |
| Cable Management | Single PWM cable and single ARGB cable for the entire 2-fan assembly via integrated hub |
| Controller & Hub | |
| Included Controller | MB Sync / Analog Controller (small hub included) |
| Control Modes | Motherboard sync (ARGB header) or standalone analog RGB controller |
| Hub Type | Integrated PWM + ARGB fan hub |
| Speed Adjustment | Dynamic — via motherboard PWM signal or controller |
| Package Contents | |
| Fans | 1 × integrated 240 mm square frame assembly (2 × 120 mm fans) |
| Controller | 1 × MB Sync / Analog RGB controller |
| Hub | 1 × Integrated PWM fan hub |
| Anti-Vibration Gaskets | 4 × corner rubber anti-vibration pads (pre-installed) |
| Marca | Caballo asiático |
