CLICK TO EXPAND
| General | |
|---|---|

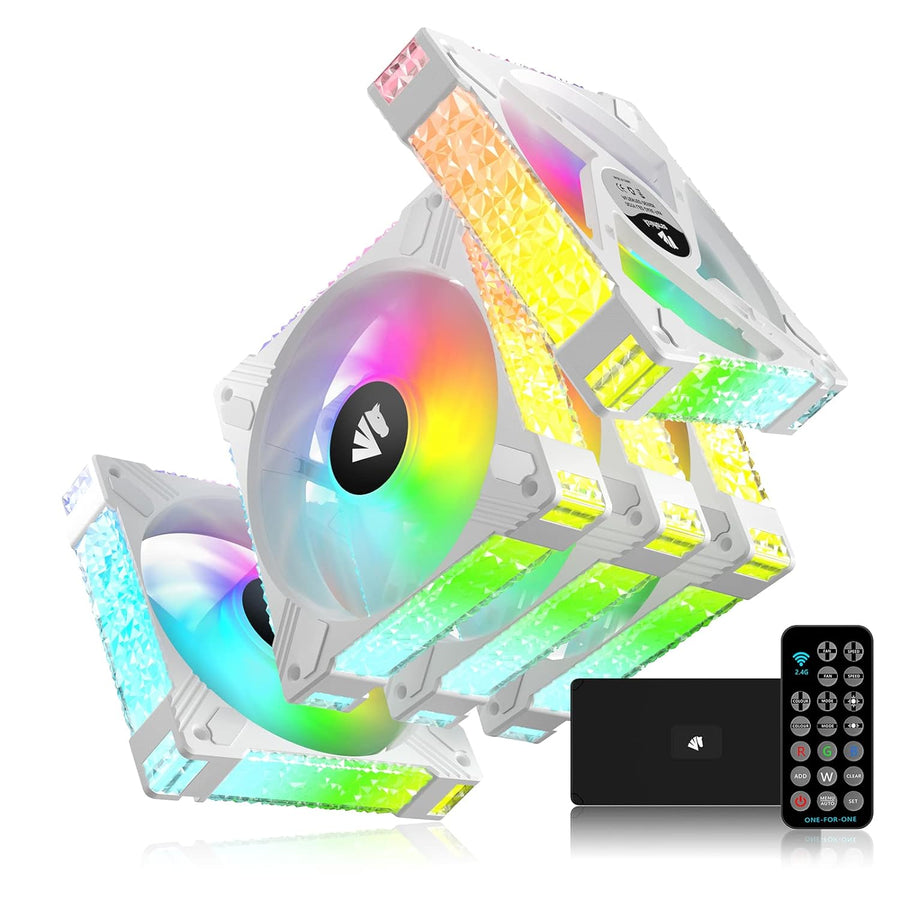

| Model | Asiahorse FS-S001 |
| Brand | AsiaHorse |
| Pack Quantity | 5-Pack |
| ASIN | B08174WFGL |
| Color | White |
| Material | Full-Frame Acrylic (Transparent / Frosted) |
| Compatible Devices | Desktop PC Cases, Radiators / Liquid Cooling Systems |
| Physical Dimensions | |
| Fan Size | 120 mm |
| Frame Dimensions | 120 mm × 120 mm × 30 mm (Square Acrylic Frame) |
| Frame Thickness | 30 mm |
| Frame Side Length | 4 × 120 mm (square perimeter) |
| Light Frame Section — Front | 10 mm (1 cm), 90° angle design |
| Light Frame Section — Middle | 4 mm (0.4 cm) |
| Light Frame Section — Back | 8 mm (0.8 cm) |
| Cable Length | 550 mm |
| Fan Performance | |
| Speed Range | 800 – 1800 RPM (PWM controlled) |
| Airflow | 57 CFM |
| Static Pressure | 1.98 mmH₂O |
| Bearing Type | Hydraulic Bearing |
| Blade Count | 9 Blades (Nine Leaves Design) |
| Blade Material | Fine Transparent / Frosted |
| Electrical | |
| Fan Connector (PWM) | 4-Pin PWM |
| ARGB Connector | 5V 3-Pin ARGB |
| Fan-to-Hub Connector | 6-Pin Proprietary Interface |
| Hub Power Input | SATA Power |
| ARGB Voltage | 5V DC |
| Lighting | |
| LED Type | ARGB (Addressable RGB) |
| LED Count (Per Fan) | 20 (frame) + 8 (blade) = 28 Addressable LEDs |
| LED Zones | Internal (Blades) & External (Frame) — independently controllable |
| Frame Design | Three-Ring Square Acrylic Frame |
| Lighting Effects | Wave, Full Light, RGB Spectrum, Flow, Ripple, Pulse, Blink, Rainbow 2.0, Off, Internal Only, External Only, Half-Light (Half-Moon Eclipse), Series Light |
| Motherboard RGB Sync | Yes — 5V ARGB Header (3-Pin) |
| Compatible Software | ASUS Aura Sync, Gigabyte RGB Fusion, MSI Mystic Light Sync |
| Controller & Remote | |
| Controller Type | 2.4G PWM Sync HUB with Remote (6-Pin Interface) |
| Remote Frequency | 2.4 GHz RF |
| Controller Functions | Fan speed control, lighting effect selection, brightness adjustment, effect speed |
| Control Modes | Analog (Remote/Hub) or Motherboard Sync (5V ARGB + PWM) |
| Hub Compatibility | Proprietary — must use included controller with included fans only |
| Series Light Installation | Fans must be installed in sequence per included manual for chain lighting effects |
| Package Contents | |
| Fans Included | 5 × 120mm FS-S001 Full Frame Acrylic Case Fan (6-Pin) |
| Hub & Remote | 1 × 2.4G PWM Sync HUB & Remote (6-Pin) |
| PWM Cable | 1 × PWM Cable |
| Sync Motherboard Cable | 1 × Sync Motherboard Cable |
| Power Cable | 1 × SATA Power Cable |
| Screws | 20 × Mounting Screws |
| Marca | Caballo asiático |
