| Overview | |
|---|---|
| Model Number | CC-H61FB-01 |
| UPC | 810074844147 |
| EAN | 5056547204055 |
| Full Name | H6 Flow — Compact Dual-Chamber Mid-Tower Airflow Case |
| Color | Black |
| Case Type | ATX Mid-Tower |
| Dimensions & Weight | |
| Height (with Feet) | 435 mm (17.13 in) |
| Width | 287 mm (11.30 in) |
| Depth | 415 mm (16.34 in) |
| Volume | 51.81 L (1.83 ft³) |
| Materials & Construction | |
| Frame Material | SGCC Steel (Galvanized Cold Rolled Steel) |
| Side Panel | Ultra-Clear Tempered Glass + Dark Tinted Tempered Glass (Black SKU) |
| Panel Design | Panoramic wraparound dual tempered glass sides |
| Motherboard Tray | Fixed |
| Panel Access | Tool-free (top and side panels) |
| Motherboard & Form Factor | |
| Supported Form Factors | ATX, Micro-ATX, Mini-ITX |
| Max Motherboard Size | ATX |
| Component Clearance | |
| Max GPU Length | 365 mm (14.37 in) |
| Max CPU Cooler Height | 163 mm (6.42 in) |
| Max PSU Length | 200 mm (7.87 in) |
| PSU Compatibility | ATX, SFX |
| PSU Mount Location | Bottom (ATX) |
| Cable Management Space (Behind Mobo) | 91 mm (3.58 in) |
| Top Radiator Clearance | 30 mm (1.18 in) |
| Vertical GPU Support | Yes (requires separately sold mount) |
| Fan Support | |
| Total Fan Slots | 9 |
| Front-Right (Angled) | 3 × 120 mm (3 × F120Q Airflow fans included) |
| Top | 3 × 120 mm or 2 × 140 mm |
| Bottom | 2 × 140 mm |
| Rear | 1 × 120 mm |
| Included Fans | 3 × 120 mm F120Q Airflow fans (pre-installed) |
| Included Fan Specs — F120Q Airflow | |
| Fan Size | 120 mm |
| Fan Speed | 1,300 ± 130 RPM |
| Airflow | 55.17 CFM |
| Static Pressure | 1.27 mm-H₂O |
| Noise Level | 26.1 dBA |
| Fan Connector | 3-pin DC |
| Radiator Support | |
| Top | Up to 360 mm (240 mm / 280 mm / 360 mm) |
| Rear | Up to 120 mm |
| Liquid Cooling Ready | Yes |
| Storage | |
| 2.5" Drive Bays | 2 |
| 3.5" Drive Bays | 1 |
| Expansion & I/O | |
| Expansion Slots | 7 × Full-Height (Standard) |
| Vertical Expansion Slots | 0 |
| Front USB Type-A | 2 × USB 3.2 Gen 1 Type-A |
| Front USB Type-C | 1 × USB 3.2 Gen 2x2 Type-C (20 Gbps) |
| Audio | 1 × Combo Headset Audio Jack (3.5 mm In/Out) |
| Front Panel Buttons | Power, Reset |
| Power Supply | |
| PSU Included | No |
| PSU Form Factor Support | ATX, SFX |
| PSU Mount | Bottom (behind dual-chamber wall) |
| Dust Filtration | |
| Filter Locations | Top, Front |
| Filter Type | High-Performance Mesh (removable) |
| Cable Management | |
| Routing Channels | Wide channels with included cable straps |
| Space Behind Motherboard | 91 mm (3.58 in) |
| Dual-Chamber Design | Yes — PSU and storage isolated behind motherboard wall |

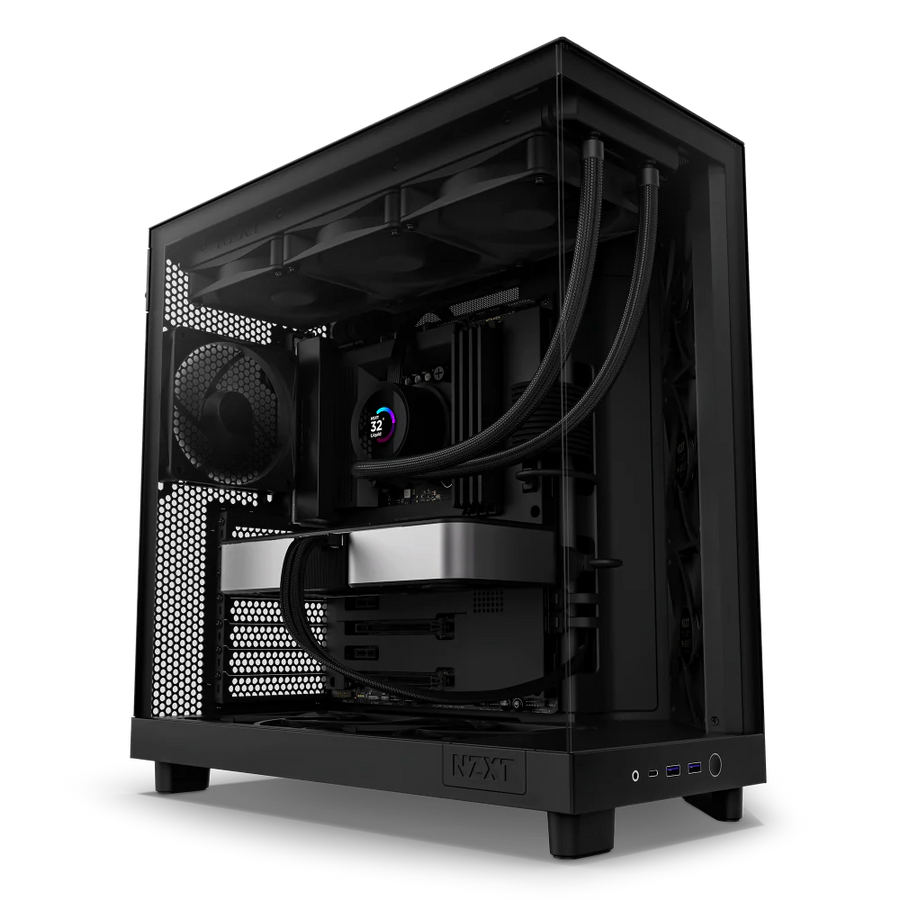

The NZXT H6 Flow is a black ATX gaming case designed around airflow, arriving with three 120mm fans already installed and room for more. It supports ATX motherboards and ATX power supplies, with clearance for graphics cards up to 365mm long and CPU coolers up to 163mm tall, giving you flexibility to build with today's common components.
The case includes mounting points for additional cooling—top panels accept up to a 360mm radiator, side panels hold three more 120mm fans, and the bottom fits two 140mm units. Front connectivity includes two USB 3.2 Gen 1 Type-A ports and one USB 3.2 Gen 2x2 Type-C port for fast data transfer and device charging.
