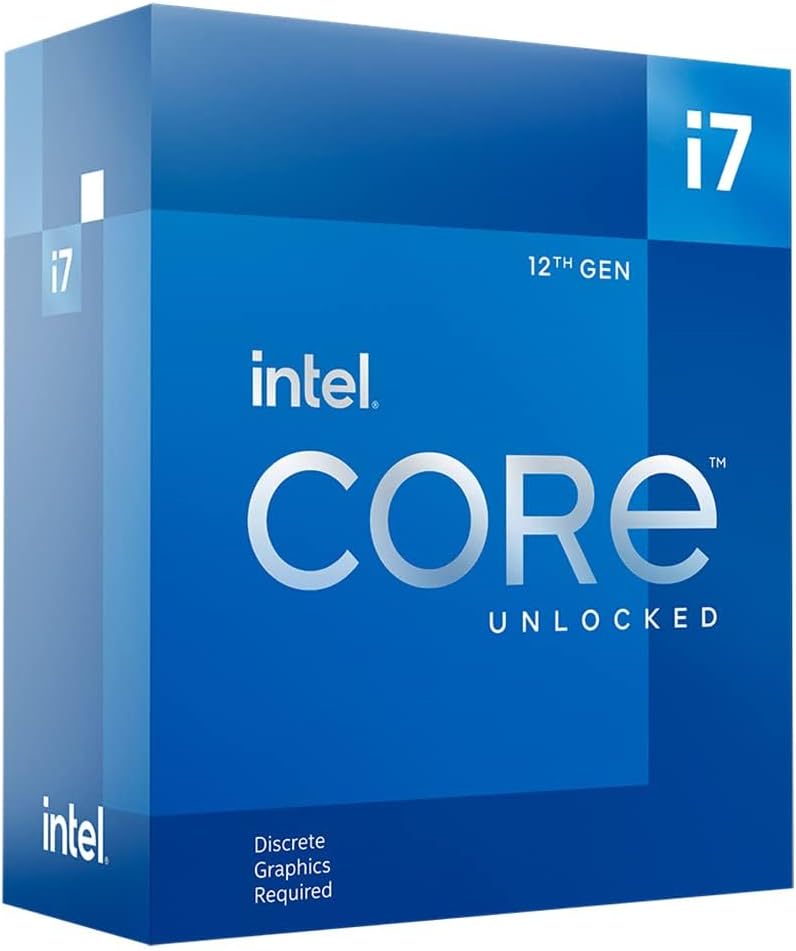

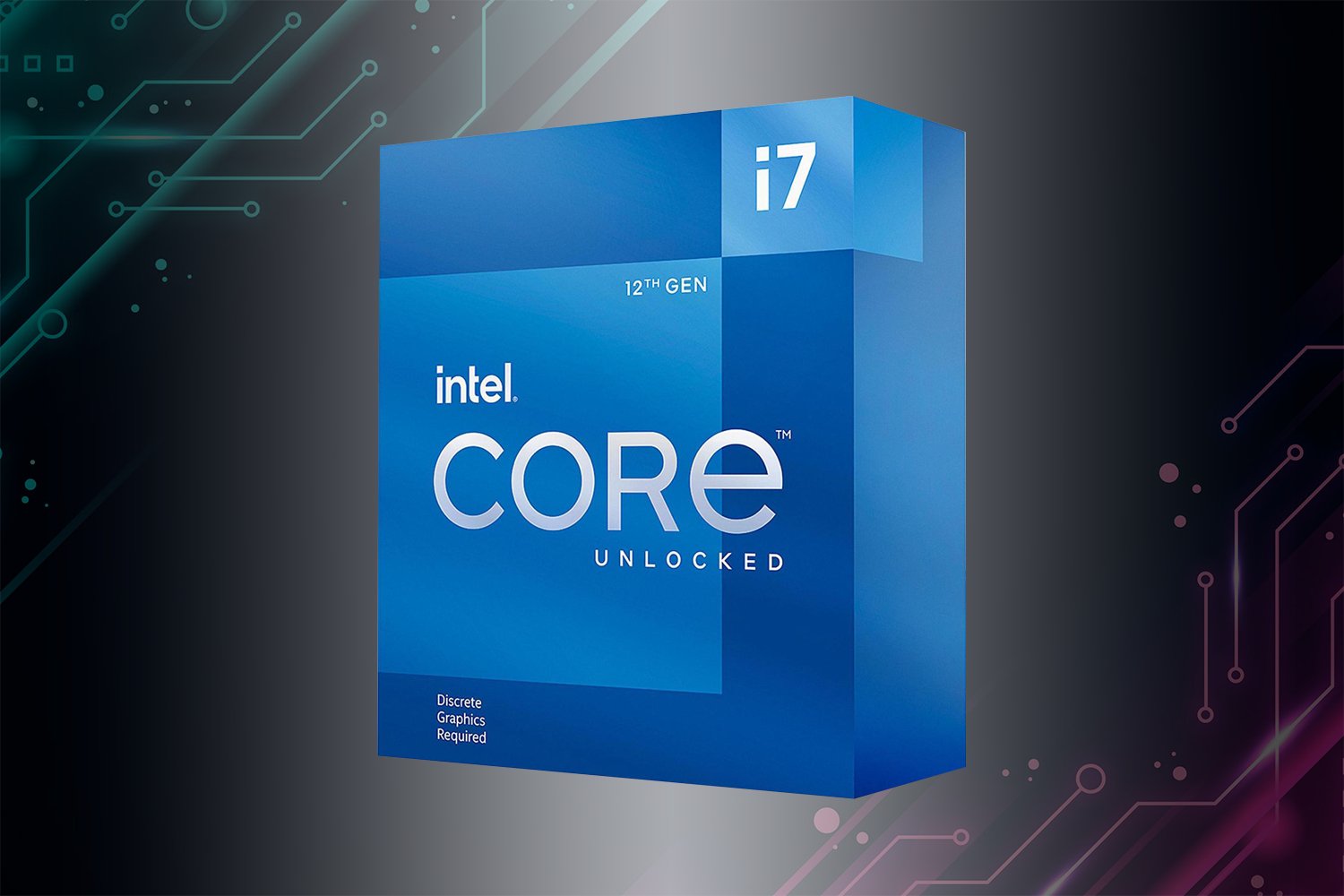

Intel i7-12700KF 3.6Ghz (12-Core, 20 Threads, 25MB Cache) CPU (TDP 190W) (LGA1700) CLICK TO EXPAND
Intel i7-12700KF 3.6Ghz (12-Core, 20 Threads, 25MB Cache) CPU (TDP 190W) (LGA1700)
Intel i7-12700KF 3.6Ghz (12-Core, 20 Threads, 25MB Cache) CPU (TDP 190W) (LGA1700)
Intel i7-12700KF 3.6Ghz (12-Core, 20 Threads, 25MB Cache) CPU (TDP 190W) (LGA1700)
TieredUp Tech, Inc.

Intel i7-12700KF 3.6Ghz (12-Core, 20 Threads, 25MB Cache) CPU (TDP 190W) (LGA1700)

Processors● In Stock
$275.12
Qty
Flexible Payment Options
4 interest-free payments of $68.78 — Learn more
As low as $22.92/mo — Learn more
Lease-to-own from $5.29/wk — no credit needed. Apply at checkout
Finance from $11.46/mo — instant decisions. Learn more
🛡️30-Day Warranty
🚚Free Ship $1,200+
🔧Expert Support
Overview
Product NameIntel® Core™ i7-12700KF
Full NameIntel® Core™ i7-12700KF Processor (25M Cache, up to 5.00 GHz)
Processor Family12th Generation Intel® Core™ i7
CodenameAlder Lake-S (C0)
SegmentDesktop
Launch DateQ4 2021 (November 2021)
OPN / MPNBX8071512700KF
Integrated GraphicsNone (Discrete GPU Required)
Boxed Thermal SolutionNot Included
CPU Cores & Architecture
Total Cores12 (8 Performance-cores + 4 Efficient-cores)
Total Threads20
P-Core ArchitectureGolden Cove (8 cores, Hyper-Threading enabled)
E-Core ArchitectureGracemont (4 cores, no Hyper-Threading)
Core ArchitectureHybrid (Intel Thread Director)
Manufacturing ProcessIntel 7 (10 nm Enhanced SuperFin)
Die Size215.25 mm² (Monolithic)
ISA / Architecturex86-64 (64-bit)
Clock Speeds
P-Core Base Frequency3.60 GHz
P-Core Max Turbo Boost 2.04.90 GHz
P-Core Max Turbo Boost Max 3.05.00 GHz
E-Core Base Frequency2.70 GHz
E-Core Max Turbo Frequency3.80 GHz
Unlocked MultiplierYes (Overclocking Supported)
Cache
L1 Instruction Cache (P-Core)8 × 32 KB
L1 Data Cache (P-Core)8 × 48 KB
L1 Instruction Cache (E-Core)4 × 64 KB
L1 Data Cache (E-Core)4 × 32 KB
L2 Cache (P-Core)8 × 1.25 MB (10 MB total)
L2 Cache (E-Core Cluster)1 × 2 MB (shared per 4 E-cores)
L2 Cache Total12 MB
L3 Cache (Intel Smart Cache)25 MB (Shared)
Memory
Max Memory Size128 GB
Memory Types SupportedDDR5, DDR4 (not simultaneously)
Max DDR5 SpeedDDR5-4800 MT/s
Max DDR4 SpeedDDR4-3200 MT/s
Memory Channels2 (Dual-Channel)
Max Memory Bandwidth76.8 GB/s (DDR5-4800, Dual-Channel)
ECC Memory SupportYes (requires chipset support)
PCI Express
PCIe Revisions SupportedPCIe 5.0 & PCIe 4.0
Max PCIe Lanes (CPU)20 Total
PCIe 5.0 Lanes16 (x16 for GPU)
PCIe 4.0 Lanes4 (x4 for NVMe)
Compatible ChipsetsIntel 600-series (Z690, B660, H670, H610), Intel 700-series (Z790)
Power
Base TDP (PBP)125 W
Maximum Turbo Power (MTP)190 W
Thermal Junction (Tj Max)100°C
Socket & Platform
SocketLGA1700
PlatformDesktop (ATX, mATX, mITX)
Instruction Sets & Technologies
Instruction SetsSSE4.1, SSE4.2, AVX2, AVX-512 (P-cores only)
Intel Hyper-Threading TechnologyYes (P-cores only)
Intel Turbo Boost Technology 2.0Yes
Intel Turbo Boost Max Technology 3.0Yes
Intel Thread DirectorYes
Intel Deep Learning Boost (VNNI)Yes
Intel AES-NIYes
Intel 64 (EM64T)Yes
Intel Virtualization Technology (VT-x)Yes
Intel VT-d (Directed I/O)Yes
Intel Trusted Execution Technology (TXT)Yes
Intel Secure Key (RDRAND)Yes
Execute Disable Bit (XD / NX)Yes
Intel Speed Shift Technology (HWP)Yes
Intel Extreme Tuning Utility (XTU) SupportYes (K-series unlocked)
Operating System Support
WindowsWindows 11, Windows 10 (20H1, 20H2, 21H1, 21H2, 22H2)
LinuxYes (Kernel 5.15+)
The Intel i7-12700KF 3.6Ghz (12-Core, 20 Threads, 25MB Cache) CPU (TDP 190W) (LGA1700) is a Common-tier custom gaming PC built and tested by TieredUp Tech in Orange, TX. This machine delivers 100+ FPS in esports titles like Fortnite, Valorant, and Apex Legends at 1080p ultra settings — making it the perfect entry point into PC gaming. The Intel i7 CPU provides the processing power needed for smooth gameplay, fast load times, and seamless multitasking. This build is optimized for Fortnite, Valorant, Apex Legends, Minecraft, League of Legends, and CS2. Whether you are jumping into your first PC gaming experience or upgrading from an older system, the Intel i7-12700KF 3.6Ghz (12-Core, 20 Threads, 25MB Cache) CPU (TDP 190W) (LGA1700) delivers exceptional performance straight out of the box. Every Common-tier BitCrate gaming PC is hand-assembled, stress-tested, and quality checked by our technicians before shipping. We stand behind every build with a 1-year warranty on parts and labor and ongoing technical support from our team in Orange, TX. Priced at $275.12 and in stock now, the Intel i7-12700KF 3.6Ghz (12-Core, 20 Threads, 25MB Cache) CPU (TDP 190W) (LGA1700) represents outstanding value for its performance tier. Order today and experience the TieredUp Tech difference — premium gaming performance at every price point. Specifications at a glance: • Processor: Intel i7 • Build Tier: Common • Built & tested in Orange, TX • 1-year warranty on parts and labor • Free shipping on orders over $1,200
