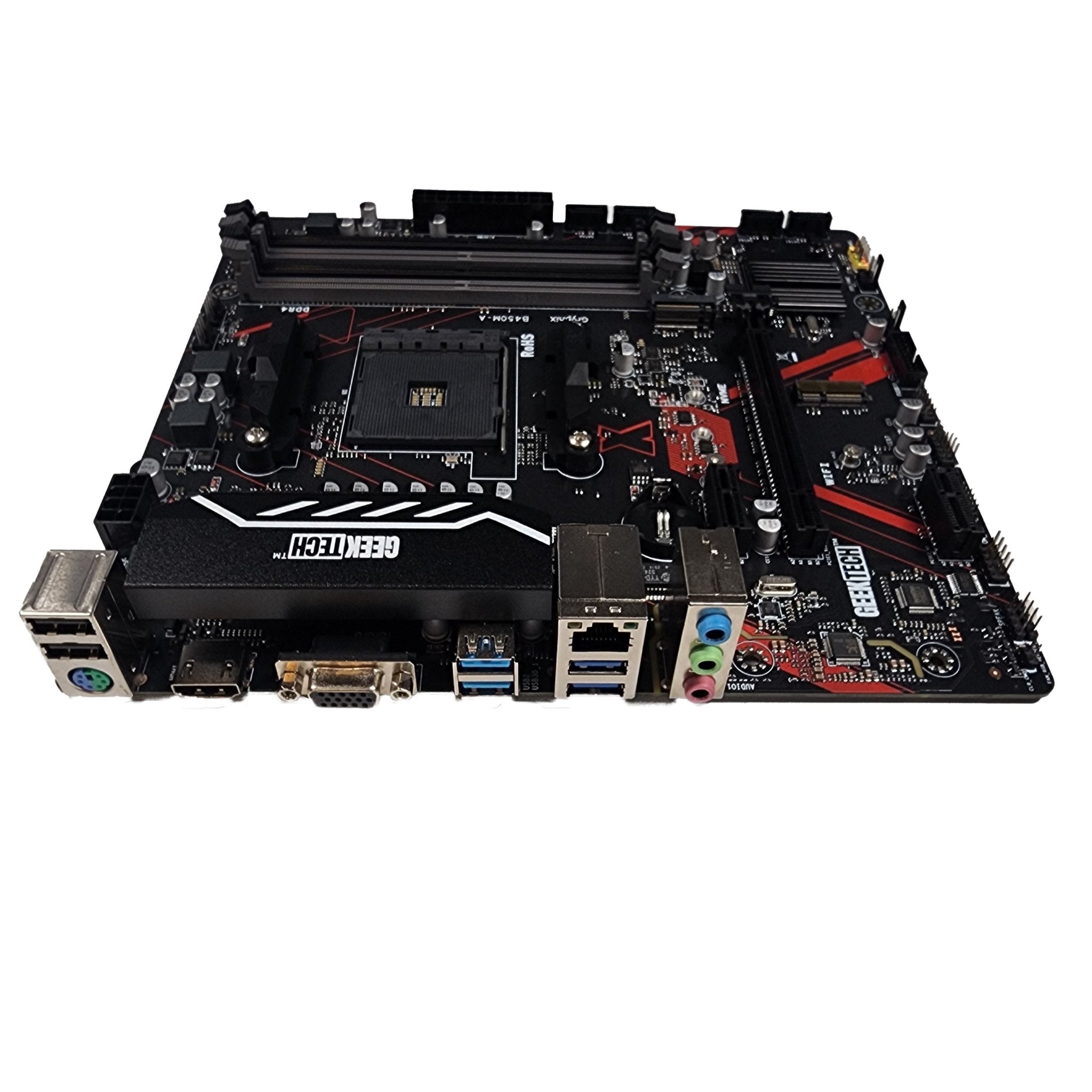

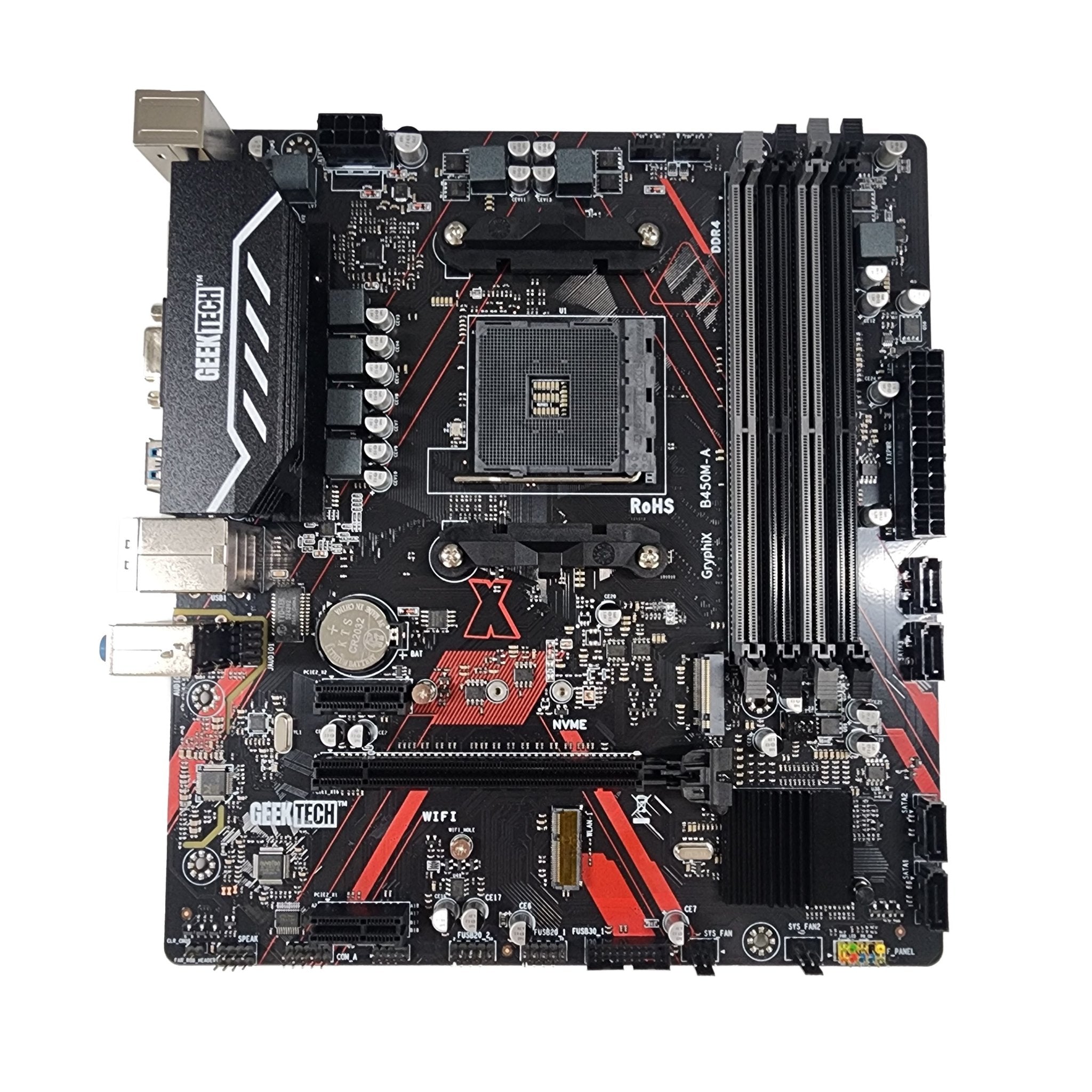

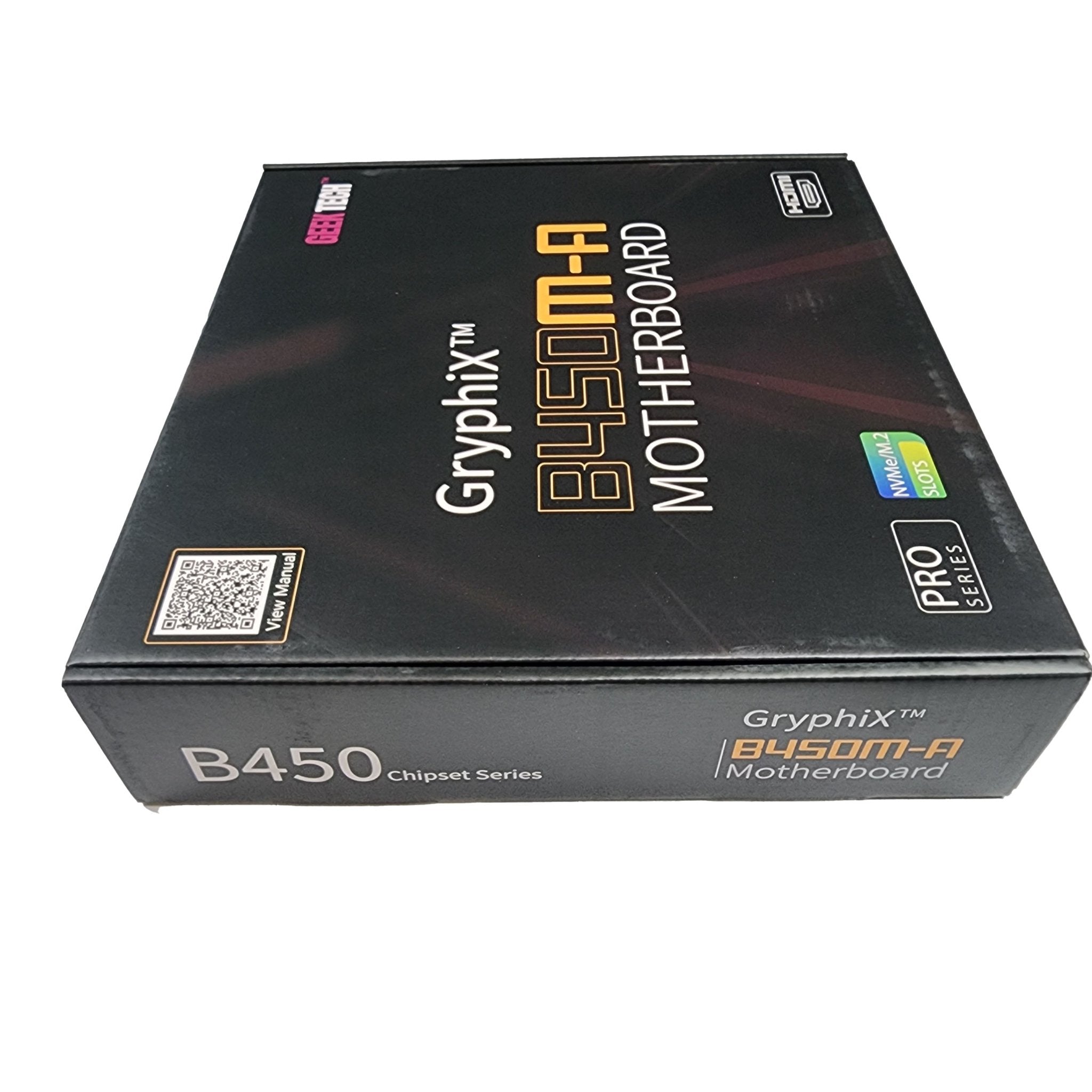

GeekTech GryphiX B450M-A AMD AM4 Socket Motherboard M-ATX Micro ATX (DDR4) (AMD) (AM4) (TDP 125W) (M-ATX)

Motherboard● In Stock
$68.77
Qty
Flexible Payment Options
4 interest-free payments of $17.19 — Learn more
As low as $5.73/mo — Learn more
Lease-to-own from $1.32/wk — no credit needed. Apply at checkout
Finance from $2.86/mo — instant decisions. Learn more
🛡️30-Day Warranty
🚚Free Ship $1,200+
🔧Expert Support
General
BrandGeekTech
ModelGryphiX B450M-A
Form FactorMicro-ATX (M-ATX)
Dimensions215.56 mm × 236.51 mm
PCB ColorBlack with accent highlights
Processor
CPU SocketAMD AM4
ChipsetAMD B450
Supported CPUsAMD Ryzen 3 / Ryzen 5 / Ryzen 7 / Ryzen 9 (AM4 Series); 1st, 2nd & 3rd Gen Ryzen; Ryzen with Radeon Vega Graphics; Athlon with Radeon Vega Graphics
CPU TDP SupportUp to 125W
CPU ArchitectureAMD (Zen, Zen+, Zen 2)
Memory
Memory TypeDDR4
DIMM Slots4 x DDR4 DIMM
Max Memory Capacity64 GB
Memory ChannelDual Channel
Memory Speed (JEDEC)1866 / 2133 / 2400 / 2667 MHz
Memory Speed (OC/XMP)Up to 3200+ MHz (OC)
ECC SupportECC Unbuffered (non-ECC mode; varies by CPU)
Expansion Slots
PCIe x16 Slot1 x PCIe 3.0 x16 (primary GPU slot)
PCIe x1 Slots2 x PCIe 2.0 x1
Storage
SATA Ports4 x SATA 6 Gb/s (SATA III)
M.2 Slot (NVMe)1 x M.2 (PCIe Gen3 x4 NVMe; supports 2242 / 2260 / 2280)
M.2 Slot (Wi-Fi)1 x M.2 (M.2 Wi-Fi key slot)
RAID SupportRAID 0, RAID 1, RAID 10 (via AMD B450 chipset)
USB & Connectivity
Rear USB 2.02 x USB 2.0 (rear panel)
Rear USB 3.24 x USB 3.2 Gen 1 (rear panel)
Internal USB HeadersUSB 2.0 and USB 3.x internal headers (front panel)
Ethernet / LANGigabit LAN (1 Gb/s)
Wireless / Wi-FiIntegrated Wi-Fi support via M.2 Wi-Fi slot
Video Output
Display OutputsHDMI, DVI-D, VGA (D-Sub) — requires CPU with integrated graphics
Multi-Display SupportYes (iGPU-dependent, multiple output ports)
Audio
Audio CodecHD Audio (High Definition Audio)
Audio Channels7.1-Channel Surround
Rear Audio Ports3.5 mm audio jacks (rear I/O panel)
Front Panel Audio HeaderYes (HD Audio front panel header)
Thermal & Power
VRM HeatsinksYes — robust heatsinks on VRM for thermal management
Fan HeadersMultiple fan headers (PWM and DC mode support)
ATX Power Connector24-pin ATX
CPU Power Connector8-pin (EPS12V)
Aesthetics & RGB
RGB LightingYes — onboard accents and component layout highlights
PCB FinishSleek black with striking accent design
Software & Platform
OS SupportWindows 10 64-bit
AMD StoreMISupported (AMD B450 chipset feature)
XMP / OC ProfileSupports XMP / A-XMP OC Mode for memory overclocking
📄
Owner's Manual
Download the official product manual for setup instructions, specifications, and warranty information.
⬇ Download PDF Manual
The GeekTech GryphiX B450M-A AMD AM4 Socket Motherboard M-ATX Micro ATX (DDR4) (AMD) (AM4) (TDP 125W) (M-ATX) is a Common-tier custom gaming PC built and tested by TieredUp Tech in Orange, TX. This machine delivers 100+ FPS in esports titles like Fortnite, Valorant, and Apex Legends at 1080p ultra settings — making it the perfect entry point into PC gaming. This build is optimized for Fortnite, Valorant, Apex Legends, Minecraft, League of Legends, and CS2. Whether you are jumping into your first PC gaming experience or upgrading from an older system, the GeekTech GryphiX B450M-A AMD AM4 Socket Motherboard M-ATX Micro ATX (DDR4) (AMD) (AM4) (TDP 125W) (M-ATX) delivers exceptional performance straight out of the box. Every Common-tier BitCrate gaming PC is hand-assembled, stress-tested, and quality checked by our technicians before shipping. We stand behind every build with a 30-day warranty and ongoing technical support from our team in Orange, TX. Priced at $68.77 and in stock now, the GeekTech GryphiX B450M-A AMD AM4 Socket Motherboard M-ATX Micro ATX (DDR4) (AMD) (AM4) (TDP 125W) (M-ATX) represents outstanding value for its performance tier. Order today and experience the TieredUp Tech difference — premium gaming performance at every price point. Specifications at a glance: • Build Tier: Common • Built & tested in Orange, TX • 30-day warranty included • Free shipping on orders over $1,200
