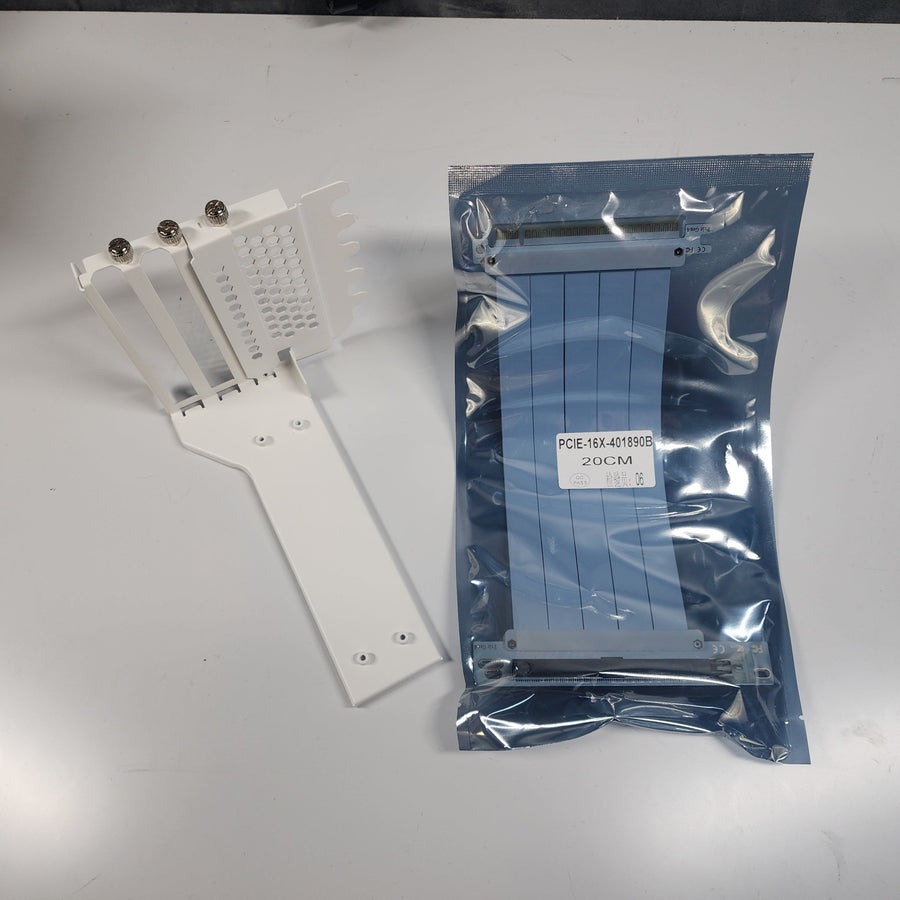

Asiahorse White GPU Graphics Card Video Card Vertical Mount Kit Mod CLICK TO EXPAND
Asiahorse White GPU Graphics Card Video Card Vertical Mount
TieredUp Tech, Inc.

Asiahorse White GPU Graphics Card Video Card Vertical Mount Kit Mod

Sleeved Cables● In Stock
$69.99
Qty
Flexible Payment Options
4 interest-free payments of $17.49 — Learn more
As low as $5.83/mo — Learn more
Lease-to-own from $1.34/wk — no credit needed. Apply at checkout
Finance from $2.91/mo — instant decisions. Learn more
🛡️30-Day Warranty
🚚Free Ship $1,200+
🔧Expert Support

Technical Specifications

General / Product Identity
BrandAsiaHorse
Product NameGPU Graphics Card Video Card Vertical Mount Kit Mod
Color / FinishWhite
Product TypeVertical GPU Mount / Riser Kit
Brand Founded2016
PCIe Riser Cable — Interface & Signal
PCIe StandardPCIe 4.0 x16 (backward compatible with PCIe 3.0 / 2.0 / 1.0)
Maximum Transfer SpeedUp to 64 Gb/s (bi-directional); ~25 Gbps per lane
Slot Widthx16 (full-speed at x16 slot; half-speed at x8 slot)
Connector Angle90° Right Angle (perpendicular / vertical mount orientation)
Cable Length20 cm (200 mm)
Plug & PlayYes — no BIOS setup required
EMI ShieldingYes — independent shielding lanes to reduce signal delay and EMI interference
PCIe Riser Cable — Construction & Materials
Conductor CorePure copper tinned cores (imported)
Cable SheathSilver-plated, imported; ultra-flexible segmented design
PCBMulti-layer coated printed circuit board
Pin ConnectionsGold-plated, hand-soldered for maximum conductivity
Wire Gauge30 AWG
12V Power Supply12-pin silver-plated cable; supports high-power GPUs (e.g. RTX 4090)
Cable DesignSegmented / slotted for airflow and reduced thermal stress
Cable ProtectorUnique end-point cable protector; prevents damage from folding or twisting
Vertical Bracket / Mount
Bracket MaterialSteel (sturdy construction)
Support Arm DesignSliding and locking — adjustable to accommodate various GPU and case sizes
Anti-Sag / Anti-SlipAnti-slip mats on bottom and support modules to prevent GPU movement
GPU Mounting OrientationVertical display (parallel or vertical positioning supported)
PCI Slots RequiredRequires chassis with open PCI slot design; typically 7 slots
Case CompatibilityStandard mid-tower and full-tower ATX cases with open PCI slot design
Modding RequiredPossibly required depending on chassis model
GPU Compatibility
NVIDIA SupportRTX 4090, RTX 4080, RTX 4070 Ti, RTX 30 Series (3090, 3080, 3070, 3060 Ti), GTX 10/16 Series
AMD SupportRX 7000 Series (7900 XTX, 7900 XT), RX 6000 Series (6900 XT, 6800), and others
Slot Support (GPU Thickness)1-slot, 2-slot, and 3-slot graphics cards
PCIe Backward CompatibilityPCIe 4.0 / 3.0 / 2.0 / 1.0
Lighting
RGB TypeARGB (Addressable RGB) — 5V 3-pin header
RGB Header5V 3-pin ARGB (NOT compatible with 4-pin 12V RGB header)
Motherboard SyncYes — compatible with ASUS AURA Sync, MSI Mystic Light, Gigabyte RGB Fusion, ASRock Polychrome
Independent LED ControlYes — individually addressable LEDs for dynamic lighting effects
Installation & Usage
Installation TypePlug and play; slide-and-lock support arm
BIOS Configuration RequiredNo (recommended to reset BIOS to optimal defaults for Gen 4 systems)
Recommended Slot for Full SpeedMotherboard PCIe x16_1 primary slot
Thermal PrecautionAllow GPU to cool down before removing riser cable to avoid thermal stress
Airflow BenefitSegmented cable design promotes airflow and reduces operating temperature
What's In The Box
Included ItemsVertical GPU bracket (white), PCIe 4.0 x16 riser cable (20 cm, 90° angle), mounting hardware
The Asiahorse White GPU Graphics Card Video Card Vertical Mount Kit Mod is a Common-tier custom gaming PC built and tested by TieredUp Tech in Orange, TX. This machine delivers 100+ FPS in esports titles like Fortnite, Valorant, and Apex Legends at 1080p ultra settings — making it the perfect entry point into PC gaming. This build is optimized for Fortnite, Valorant, Apex Legends, Minecraft, League of Legends, and CS2. Whether you are jumping into your first PC gaming experience or upgrading from an older system, the Asiahorse White GPU Graphics Card Video Card Vertical Mount Kit Mod delivers exceptional performance straight out of the box. Every Common-tier BitCrate gaming PC is hand-assembled, stress-tested, and quality checked by our technicians before shipping. We stand behind every build with a 1-year warranty on parts and labor and ongoing technical support from our team in Orange, TX. Priced at $69.99 and in stock now, the Asiahorse White GPU Graphics Card Video Card Vertical Mount Kit Mod represents outstanding value for its performance tier. Order today and experience the TieredUp Tech difference — premium gaming performance at every price point. Specifications at a glance: • Build Tier: Common • Built & tested in Orange, TX • 1-year warranty on parts and labor • Free shipping on orders over $1,200
