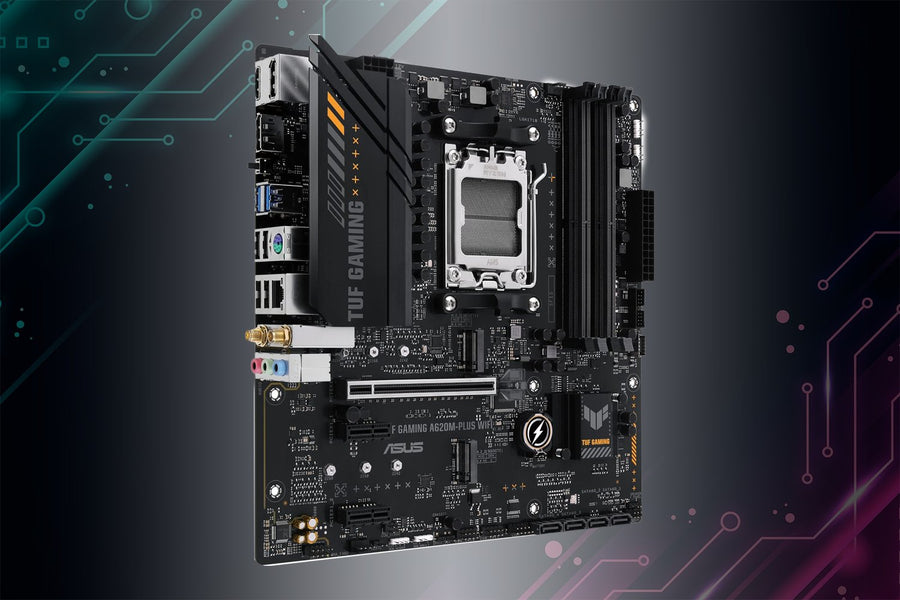

Placa base ASUS TUF GAMING A620M-PLUS WIFI AM5 Micro-ATX CLICK TO EXPAND
(AMD) ASUS TUF GAMING A620M-PLUS WIFI AM5 DDR5 Motherboard
(AMD) ASUS TUF GAMING A620M-PLUS WIFI AM5 DDR5 Motherboard — side view
(AMD) ASUS TUF GAMING A620M-PLUS WIFI AM5 DDR5 Motherboard — rear view
(AMD) ASUS TUF GAMING A620M-PLUS WIFI AM5 DDR5 Motherboard — detail view
(AMD) ASUS TUF GAMING A620M-PLUS WIFI AM5 DDR5 Motherboard — close-up
Geek Tech Supply

Placa base ASUS TUF GAMING A620M-PLUS WIFI AM5 Micro-ATX

Placas base● Out of Stock
$164.99
Qty
Flexible Payment Options
4 interest-free payments of $41.24 — Learn more
As low as $13.74/mo — Learn more
Lease-to-own from $3.17/wk — no credit needed. Apply at checkout
Finance from $6.87/mo — instant decisions. Learn more
🛡️30-Day Warranty
🚚Free Ship $1,200+
🔧Expert Support
Overview
ModelTUF GAMING A620M-PLUS WIFI
Part Number90MB1F00-M0AAY0 / 90MB1F00-M0EAY0
Form FactorMicro-ATX (mATX)
Dimensions24.4 cm × 24.4 cm (9.6 in × 9.6 in)
PCB Layers6-Layer PCB
ColorBlack / Orange
Processor
CPU SocketAMD Socket AM5
Supported CPUsAMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
ChipsetAMD A620
Memory
Memory TypeDDR5, Non-ECC & ECC, Un-buffered
DIMM Slots4 × DIMM
Max Memory192 GB
Supported SpeedsDDR5 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800
Channel ArchitectureDual Channel
OC ProfilesAMD EXPO™, ASUS OptiMem II, ASUS AEMP
On-Die ECCSupported (Non-ECC Un-buffered DDR5)
Graphics & Display Output
Display Outputs2 × DisplayPort, 1 × HDMI™
Total Display Outputs3 (Depends on CPU iGPU support)
Expansion Slots
PCIe x16 Slot1 × PCIe 4.0 x16 (SafeSlot Core+)
PCIe x1 Slot1 × PCIe x1
Storage
M.2 Slots2 × M.2 (Key M)
M.2_1 (Ryzen 9000 & 7000)Type 2242 / 2260 / 2280, PCIe 4.0 x4
M.2_2 (Ryzen 9000 & 7000)Type 2242 / 2260 / 2280, PCIe 4.0 x4
M.2_1 (Ryzen 8000)Type 2242 / 2260 / 2280, PCIe 4.0 x4
M.2_2 (Ryzen 8000)Type 2242 / 2260 / 2280, PCIe 4.0 x4 / x2
SATA Ports4 × SATA 6 Gb/s (via AMD A620 Chipset)
RAID SupportAMD RAIDXpert2: PCIe RAID 0/1/10 & SATA RAID 0/1/10
M.2 Tool-Free InstallM.2 Q-Latch (screwless)
USB Connectivity
Rear USB Total6 ports
Rear USB 3.2 Gen 1 (5 Gbps)2 × Type-A
Rear USB 2.04 × Type-A
Front USB Total7 ports
Front USB 3.2 Gen 1 Type-C® Connector1 × (5 Gbps)
Front USB 3.2 Gen 1 Header1 × (supports 2 additional USB 3.2 Gen 1 ports)
Front USB 2.0 Headers2 × (supports 4 additional USB 2.0 ports)
Networking
LAN ControllerRealtek 2.5 Gb Ethernet
LAN ProtectionTUF LANGuard
Wi-Fi StandardWi-Fi 6 (802.11ax)
Wi-Fi Max BandwidthUp to 1.2 Gbps (theoretical peak)
BluetoothYes (included with Wi-Fi module)
Wi-Fi Antenna1 × ASUS Wi-Fi moving antenna (included)
Audio
Audio CodecRealtek (co-developed for TUF GAMING A620)
Audio Channels7.1 Surround Sound HD Audio
SNR (Line Out)98 dB
AI Noise CancellationTwo-Way AI Noise Cancelation
S/PDIF Out1 × S/PDIF Out header
Power
Main Power Connector1 × 24-pin ATX
CPU Power Connector1 × 8-pin +12V (4+4-pin compatible)
VRMDIGI+ VRM with alloy chokes & military-grade TUF components
CapacitorsTUF 5K black metallic (52% wider temp tolerance, 2.5× longer lifespan)
Cooling & Fan Headers
CPU Fan Header1 × 4-pin
Chassis Fan Headers2 × 4-pin
Fan ControlFan Xpert 2+ (PWM & DC auto-detection per header)
HeatsinksVRM Heatsink, PCH Heatsink
Rear I/O Panel
Video Outputs2 × DisplayPort, 1 × HDMI™
USB 3.2 Gen 1 (5 Gbps)2 × Type-A
USB 2.04 × Type-A
LAN Port1 × RJ-45 (Realtek 2.5 Gb)
Wi-Fi Antenna ConnectorsYes (Wi-Fi 6 module)
Audio JacksMultiple analog audio jacks (7.1 surround)
BIOS FlashBack™Yes — dedicated button & LED on rear I/O
Back I/O PanelStainless-steel (chromium oxide, 3× longer lifespan, 72-hr salt fog tested)
Internal Headers & Connectors
Front Panel Audio Header1 × AAFP
System Panel Header1 × 10-1 pin
S/PDIF Out Header1 ×
Speaker Header1 ×
Clear CMOS Header1 ×
COM Port Header1 ×
Addressable Gen 2 RGB Headers3 × (supports up to 500 LEDs on Gen 2 devices)
Aura RGB Header1 ×
RGB & Lighting
RGB EcosystemASUS Aura Sync
ARGB Gen 2 Headers3 × (backward compatible with Gen 1 Aura Sync devices)
Aura RGB Header1 × (for standard RGB LED strips)
BIOS
BIOS TypeASUS UEFI BIOS (EZ Mode & Advanced Mode)
BIOS Flash MethodBIOS FlashBack™ (no CPU/RAM required), ASUS EZ Flash 3, ASUS CrashFree BIOS 3
BIOS Entry KeyDel / F2
POST DiagnosticsQ-LED Core (power LED light patterns during POST)
Protection & Durability
TUF ProtectionDIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage Protection
PCIe Slot ReinforcementSafeSlot Core+ (reinforced metal sheath)
DIMM ProtectionQ-DIMM (single-sided latch for easy installation)
Back I/O Corrosion ResistanceStainless steel + chromium oxide (72-hr salt fog tested)
Software
ASUS Software SuiteArmoury Crate, Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving, Two-Way AI Noise Cancelation, AI Suite 3 (TurboV EVO, DIGI+ VRM, PC Cleaner)
UtilitiesTUF GAMING CPU-Z, MyASUS
Bundled SoftwareNorton 360 for Gamers (60-day trial), WinRAR
Box Contents
Cables2 × SATA 6 Gb/s cables
Miscellaneous1 × ASUS Wi-Fi moving antenna, 1 × I/O Shield, 1 × TUF Gaming sticker, 1 × M.2 SSD screw package
Documentation1 × TUF Certification card, 1 × User guide
Especificaciones de su nuevo equipo
Marca Asus
